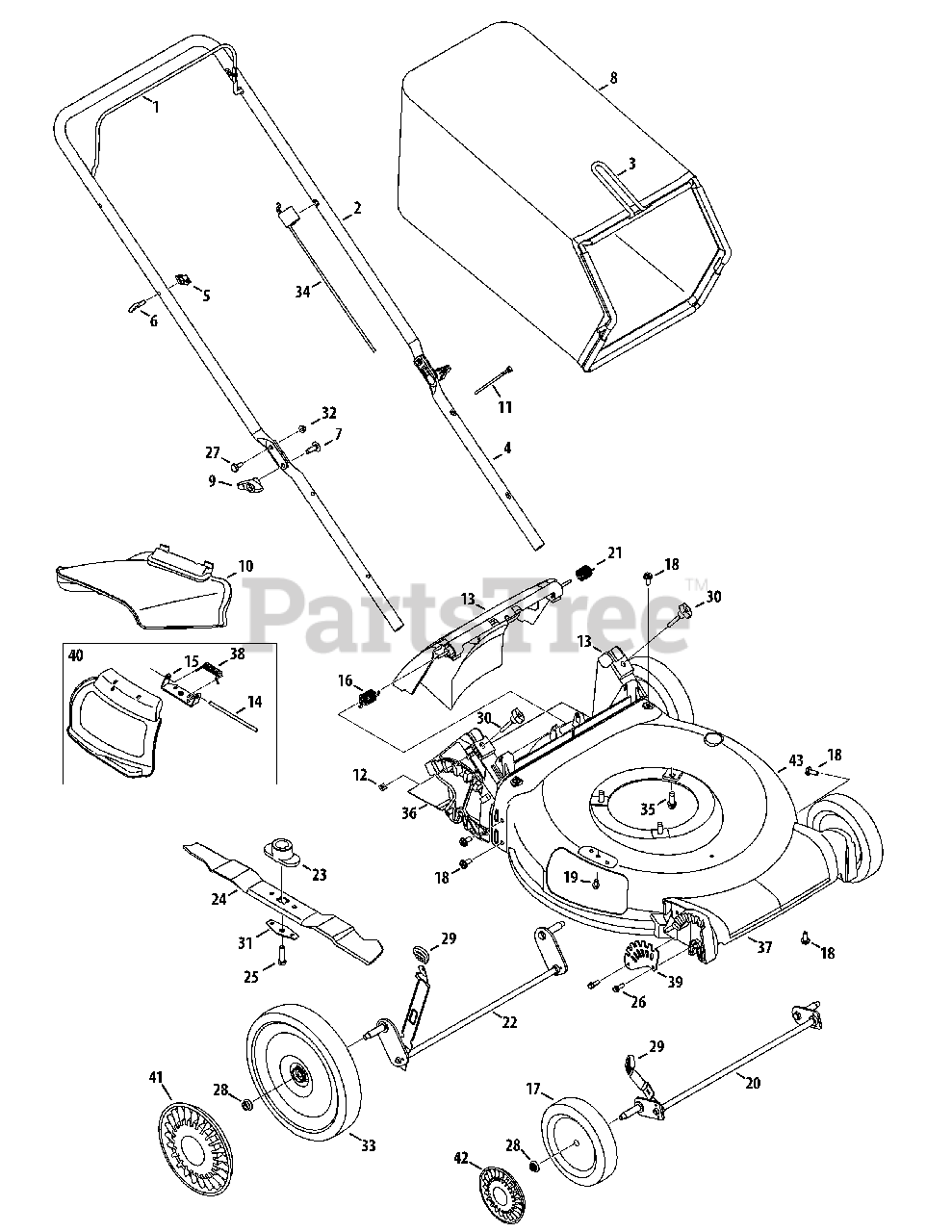

P 21 HWXL (11A-B29V897) - Columbia 21" Walk-Behind Mower (2015) General Assembly Parts Diagram

21" Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-05184D

Blade Control, Standard

$7.49

$

In Stock, Qty 6

0

2

MTD 749-04681B-0637

Upper Handle, Adjustable
(Superseded to 749-05084B-0637)

$33.99

$

Usually ships in 3-6 days

0

3

MTD 647-04271-0637

Grass Catcher Frame

$41.99

$

In Stock, Qty 20+

0

4

MTD 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, only 2 left!

0

5

MTD 720-0279

Wing Nut

$4.49

$

In Stock, only 4 left!

0

6

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 2 left!

0

7

MTD 710-04998

Carriage Screw ,5/16-18

$5.99

$

In Stock, Qty 5

0

8

MTD 764-04082B

Grass Bag, Black
(Superseded to 764-04082D)

$46.99

$

In Stock, only 1 left!

0

9

MTD 720-04122

Wing Knob, Black

$6.99

$

In Stock, only 4 left!

0

10

MTD 731-07131

Side Chute

$15.99

$

In Stock, Qty 9

0

11

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

12

MTD 712-04222

Nut, Sq., 1/4-20

$5.49

$

In Stock, only 2 left!

0

13

MTD 631-04389A

Rear Discharge Door Assembly

$66.99

$

Usually ships in 3-6 days

0

14

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

15

MTD 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

16

MTD 732-05061A

Torsion Spring - RH
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

17

MTD 634-04642

Front Wheel Black

$26.99

$

Usually ships in 3-6 days

0

18

MTD 710-04995A

Screw, 5/16-14 x .750

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

20

MTD 911-04143B

Front Axle Assembly
(Superseded to 611-04143B)

$30.99

$

In Stock, only 3 left!

0

21

MTD 732-05062A

Torsion Spring - LH

$5.49

$

In Stock, only 1 left!

0

22

MTD 911-04144B

Rear Axle Assembly
(Superseded to 611-04144B)

$36.99

$

Usually ships in 3-6 days

0

23

MTD 748-04096

Blade Adapter, 25mm x 1.19

$22.99

$

In Stock, Qty 20+

0

24

MTD 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

25

MTD 710-1044

Screw , 3/8-24 x 1.50

$3.99

$

In Stock, only 1 left!

0

26

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 5

0

27

MTD 738-04419A

Sldr. Screw, .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 14

0

28

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 16

0

29

MTD 720-04130

Adjustment Lever Knob

$4.99

$

In Stock, only 1 left!

0

30

MTD 720-05066A

Wing Nut

$4.49

$

In Stock, only 2 left!

0

31

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 13

0

32

MTD 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

33

MTD 634-05062

Rear Wheel Black

$42.99

$

In Stock, only 1 left!

0

34

MTD 946-04661A

Control Cable, 37.58"

$13.99

$

In Stock, only 3 left!

0

35

MTD 710-04683B

TT Sems Screw, 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, only 2 left!

0

36

MTD 731-07203

Trail shield

$10.99

$

In Stock, only 1 left!

0

37

MTD 731-07078A

Front Cover
(Superseded to 753-08680)

$50.99

$

In Stock, only 3 left!

0

38

MTD 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

39

MTD 787-01818A-0637

Front Height Adjuster Plate

$10.99

$

In Stock, only 1 left!

0

40

MTD 687-02531A

Hinged Mulch Plug Assembly
(Superseded to 987-05206)

$30.99

$

Usually ships in 3-6 days

0

41

MTD 731-07875

Hubcap, 11"

$10.99

$

In Stock, only 1 left!

0

42

MTD 731-08202

Hubcap, 7" w/o snaps

$7.49

$

In Stock, only 1 left!

0

43

MTD 787-01874C-0606

Deck , 21" - Orange

$133.99

$

Usually ships in 3-6 days
