P 21 HW (11A-B0BA897) - Columbia 21" Walk-Behind Mower (2016) Deck Assembly Parts Diagram

21" Walk-Behind Mower

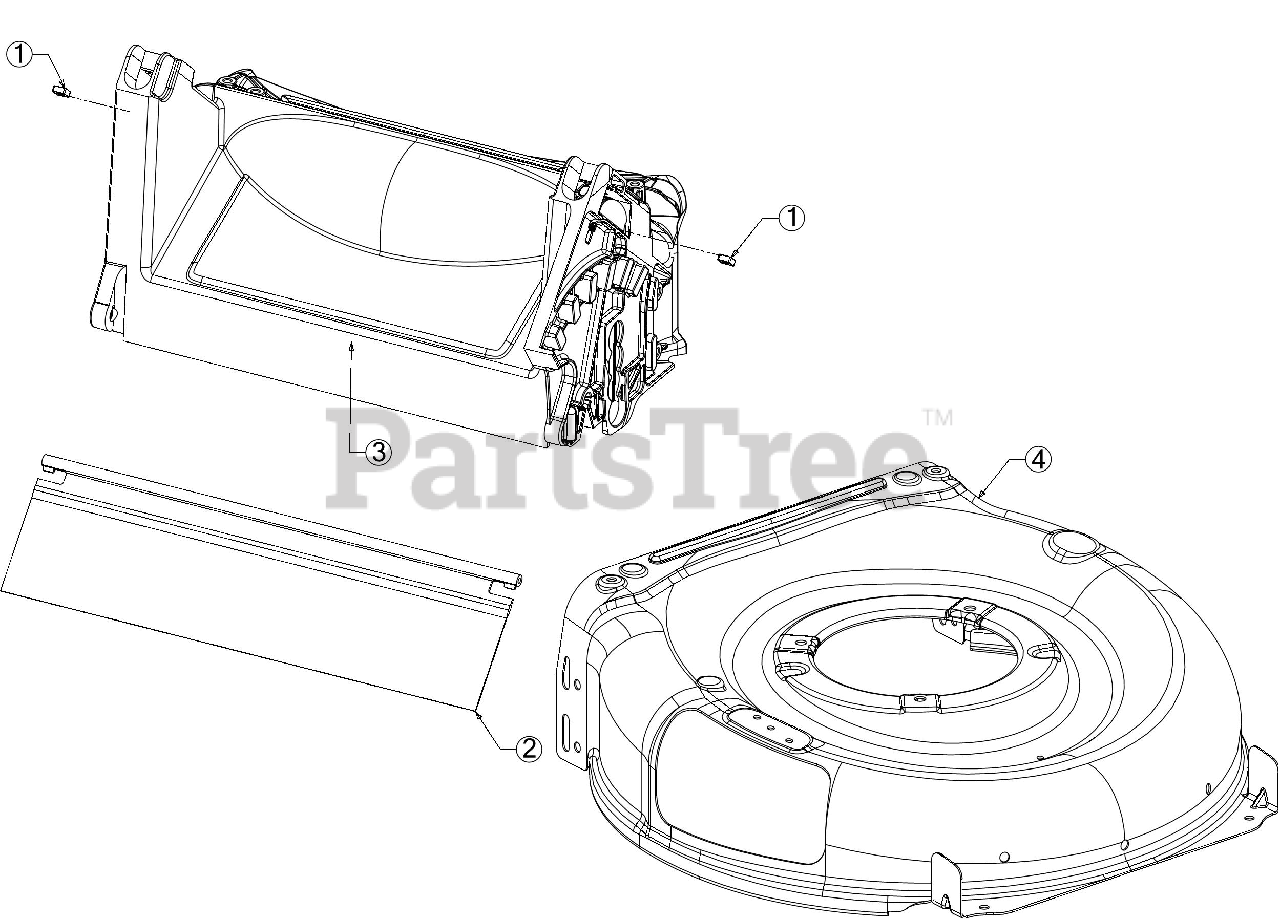

Deck Assembly Parts Diagram

  • Title
1

MTD 712-04222

SQUARE NUT 1/4-20

$5.49

$

Usually ships in 3-6 days

0

2

MTD 731-07203

TRAILSHIELD

$10.99

$

In Stock, only 2 left!

0

3

N/A

N/A

Note: (Not Serviceable; Order Part Number 631-04491A)

$

$

Not available

4

MTD 787-01869B-0606

21" DECK (3N1)

$133.99

$

Usually ships in 3-6 days

0

MTD 631-04491A

REAR BAFFLE ASSEMBLY

Note: (Not Shown)

$35.99

$

Usually ships in 3-6 days

0
