P 21 (11A-A4BA897) - Columbia 21" Walk-Behind Mower (2016) Deck Assembly Parts Diagram

21" Walk-Behind Mower

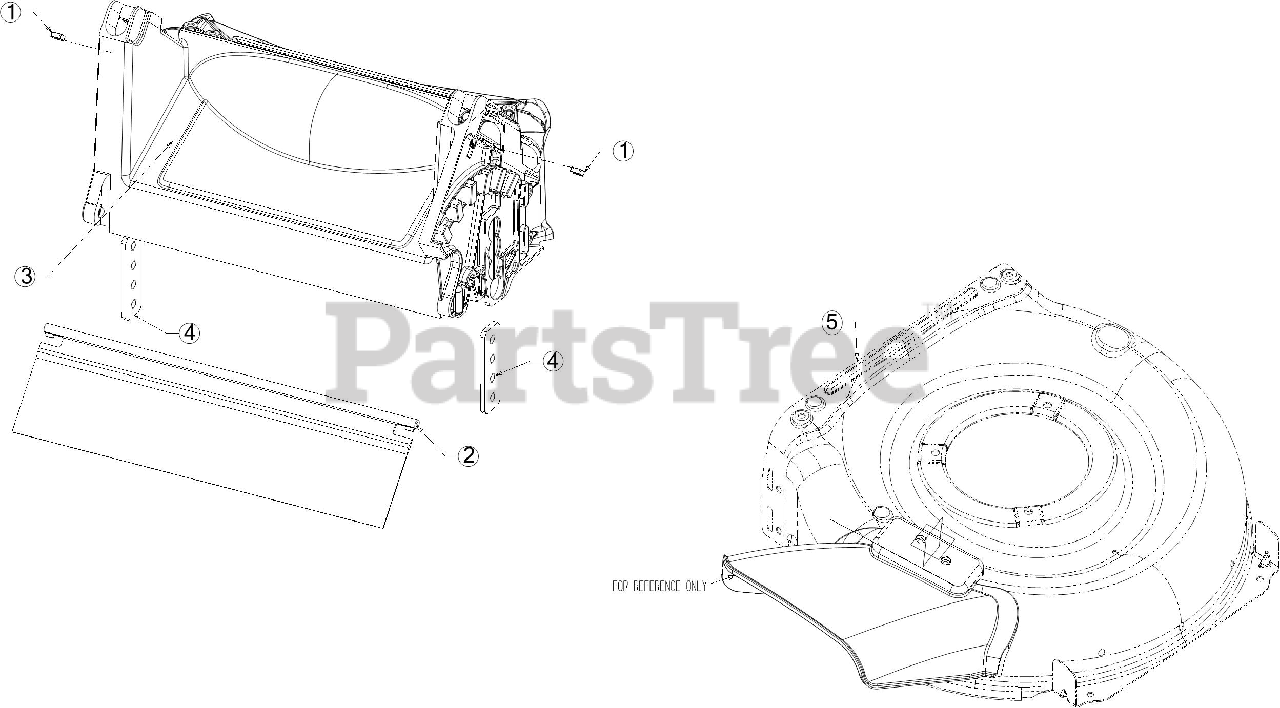

Deck Assembly Parts Diagram

  • Title
1

MTD 712-04222

SQUARE NUT 1/4-20

$5.49

$

In Stock, only 2 left!

0

2

MTD 731-07203

TRAILSHIELD

$10.99

$

Usually ships in 3-6 days

0

3

N/A

N/A

Note: (Not Serviceable; Order Part Number 631-04594A)

$

$

Not available

4

N/A

N/A

Note: (Not Serviceable; Order Part Number 631-04594A)

$

$

Not available

5

MTD 787-01869B-0606

21" DECK (3N1)

$133.99

$

Usually ships in 3-6 days

0

MTD 631-04594A

REAR BAFFLE ASSEMBLY

Note: (Not Shown)

$47.99

$

Usually ships in 3-6 days

0
