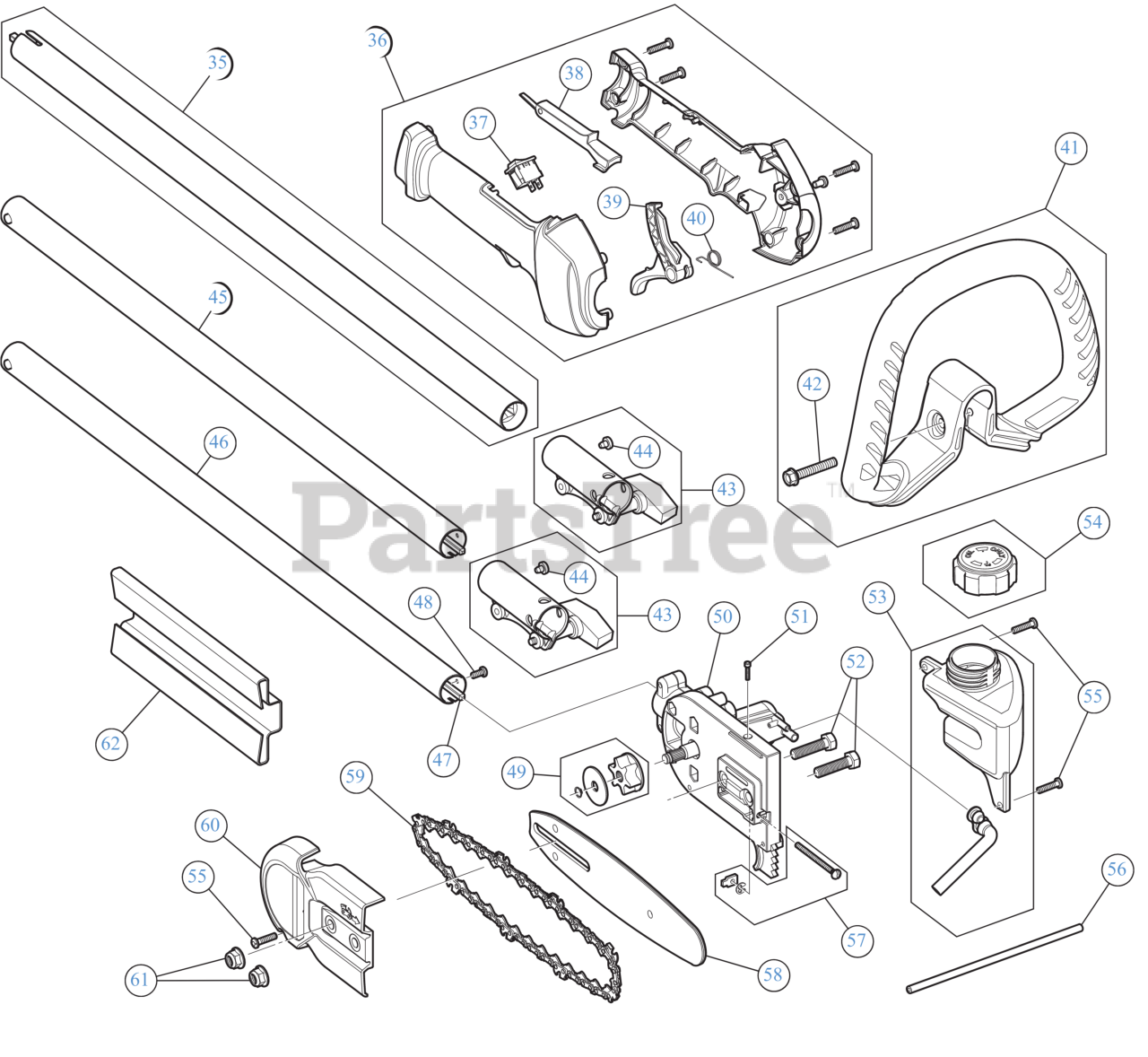

P 205 (CMXGJAMA25PS) (41BD25PS791) - Craftsman Pole Saw General Assembly Parts Diagram

Pole Saw

General Assembly Parts Diagram

  • Title

35

MTD 753-06880

BOOM ASSEMBLY UPR

$19.99

$

In Stock, only 1 left!

0

36

MTD 753-08344

THROTTLE GRIP ASSEMBLY

Note: (Incl. 37 - 40)

$30.99

$

Usually ships in 3-6 days

0

37

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

38

MTD 731-08433C-10

LEVER LOCK OUT

$3.49

$

In Stock, only 4 left!

0

39

MTD 731-04970B-10

THROTTLE TRIGGER

$9.49

$

In Stock, Qty 16

0

40

MTD 753-05007

SPRING TRIG

$5.49

$

In Stock, only 2 left!

0

41

MTD 753-06039

HANDLE ASSEMBLY

Note: (Incl. 42)

$11.99

$

Usually ships in 3-6 days

0

42

MTD 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

In Stock, only 1 left!

0

43

MTD 753-09225

COUPLER ASSEMBLY

Note: (Incl. 44)

$7.49

$

In Stock, only 2 left!

0

44

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, Qty 7

0

45

MTD 753-09226

EXTENSION BOOM ASSEMBLY

$22.99

$

In Stock, Qty 5

0

46

MTD 753-05724

BOOM ASSEMBLY 24"

Note: (Incl. 47)

$40.99

$

In Stock, only 1 left!

0

47

MTD 791-181852

LOWERIBLE DRIVE SHAFT

$59.99

$

In Stock, only 1 left!

0

48

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

49

MTD 753-05595

SPROCKET ASSEMBLY

$11.99

$

In Stock, Qty 9

0

50

MTD 753-05599

GEAR BOX ASSEMBLY

Note: (Incl. 49 & 51)

$106.99

$

In Stock, only 2 left!

0

51

MTD 710-04696

SCREW 4X40X.50

$3.99

$

In Stock, only 2 left!

0

52

MTD 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

53

MTD 753-05586

OIL TANK ASSEMBLY

$30.99

$

Usually ships in 3-6 days

0

54

MTD 753-05587

FUEL CAP ASSEMBLY

$8.99

$

In Stock, Qty 8

0

55

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, only 4 left!

0

56

MTD 753-05588

OIL LINE

$9.99

$

Usually ships in 3-6 days

0

57

MTD 753-05597

CHAIN TENSION HDW

$10.99

$

In Stock, only 3 left!

0

58

MTD 753-05594

BAR 8" SPROCKET NOSE

$54.99

$

In Stock, only 2 left!

0

59

MTD 753-05592

CHAIN 8" 34 LINK .043 GAUGE

$38.99

$

In Stock, Qty 13

0

60

MTD 753-05765

CHAIN GUARD

$11.99

$

In Stock, only 1 left!

0

61

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

62

MTD 731-05906

CHAIN COVER

$6.49

$

Usually ships in 3-6 days

0

MTD 731-08926

HANGER

$2.99

$

In Stock, only 3 left!

0
