P 20104 VNM (315286101) - Ryobi 18V Brushless Powerhead, Rev 07 (2022-02) General Assembly Parts Diagram

18V Brushless Powerhead, Rev 07

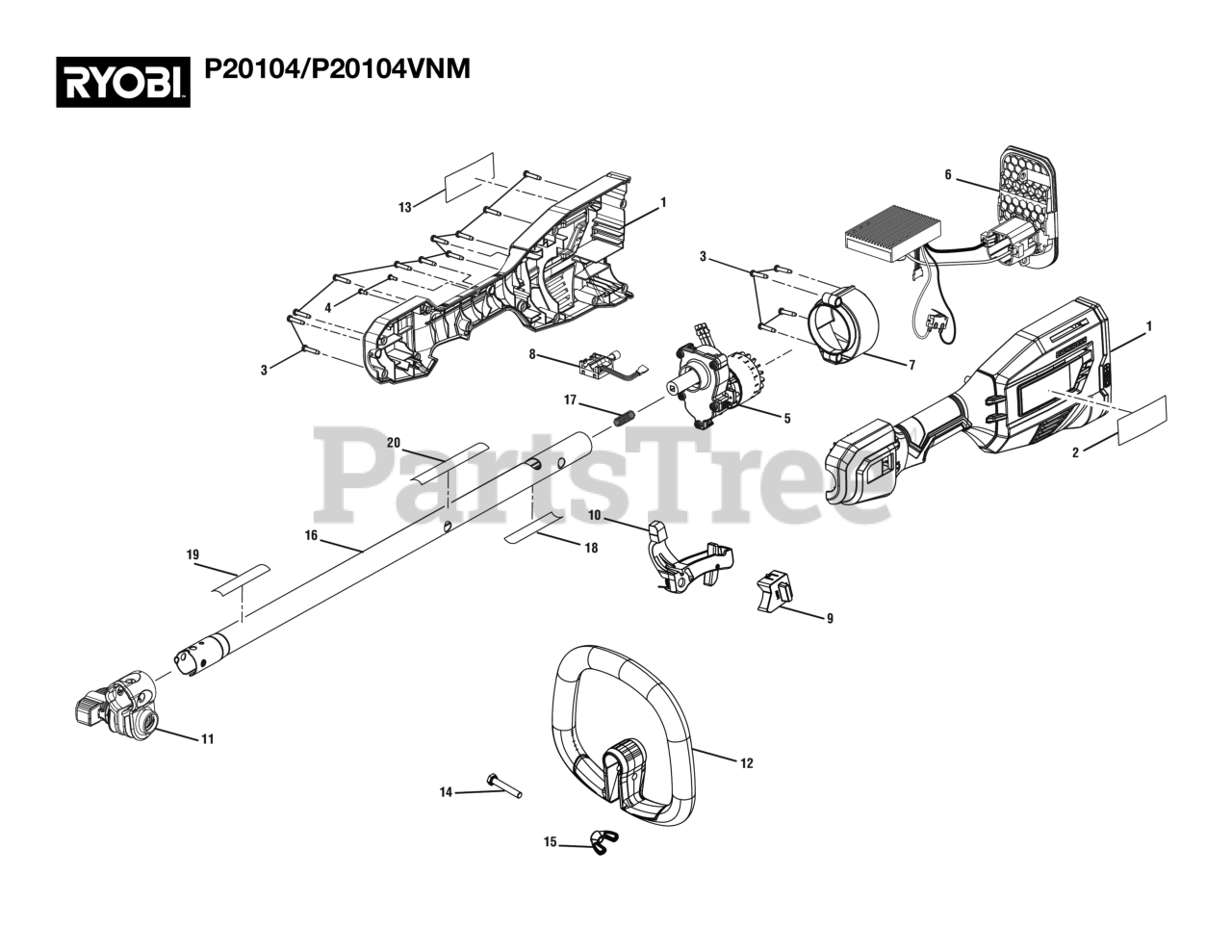

General Assembly Parts Diagram

  • Title
1

Homelite 315989001

Rear Handle Assembly

Note: (Inc. Key No. 2 & 13)

$36.99

$

Usually ships in 3-7 days

0

2

Homelite 940705585

Logo Label

$

$

Currently unavailable

3

Homelite 661864007

Screw (M4 x 18 mm, T15 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 660203052

Screw (M3 x 8 mm, Pan. Hd.)

$1.99

$

In Stock, only 2 left!

0

5

Homelite 313244003

Motor & Gear Box Assembly

$228.99

$

Usually ships in 3-7 days

0

6

Homelite 292194001

Motor Controller & Switch Assembly

$171.99

$

Usually ships in 3-7 days

0

7

Homelite 315990001

Motor Volute Assembly

$6.49

$

Usually ships in 3-7 days

0

8

Homelite 760649001

Variable Speed Switch

$18.99

$

Usually ships in 3-7 days

0

9

Homelite 539255001

Hi-Lo Switch Cover

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 314833001

Switch Trigger Assembly

$10.99

$

Usually ships in 3-7 days

0

11

Homelite 315386001

Boom Clamp Assembly

$19.99

$

Usually ships in 3-7 days

0

12

Homelite 308991003

Auxiliary Handle Assembly

Note: (Inc. Key Nos. 14-15)

$13.99

$

Usually ships in 3-7 days

0

13

Homelite 941588902

Data Label (P20104VNM)

$

$

Currently unavailable

14

Homelite 660643008

Screw (1/4-20 x 40 mm, Cap Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

16

Homelite 316009001

Boom Assembly (Inc. Key Nos. 19-22, P20104VNM)

Note: (Inc. Key Nos. 18-20, P20104VNM)

$41.99

$

Usually ships in 3-7 days

0

17

Homelite 690140011

COMPRESSION SPRING
(Superseded to 06713)

$1.99

$

In Stock, only 3 left!

0

18

Homelite 941013005

Warning Label (French/Spanish)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 941851150

Attachment Label

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 941588795

Warning Icons Label

$1.99

$

Usually ships in 3-7 days

0

Homelite 995000973

Operator's Manual

Note: Not Shown:

$

$

Currently unavailable
