P 20102 VNM (107482101) - Ryobi 18V String Trimmer/Edger, Rev 04 (2022-02) FIGURE A Parts Diagram

18V String Trimmer/Edger, Rev 04

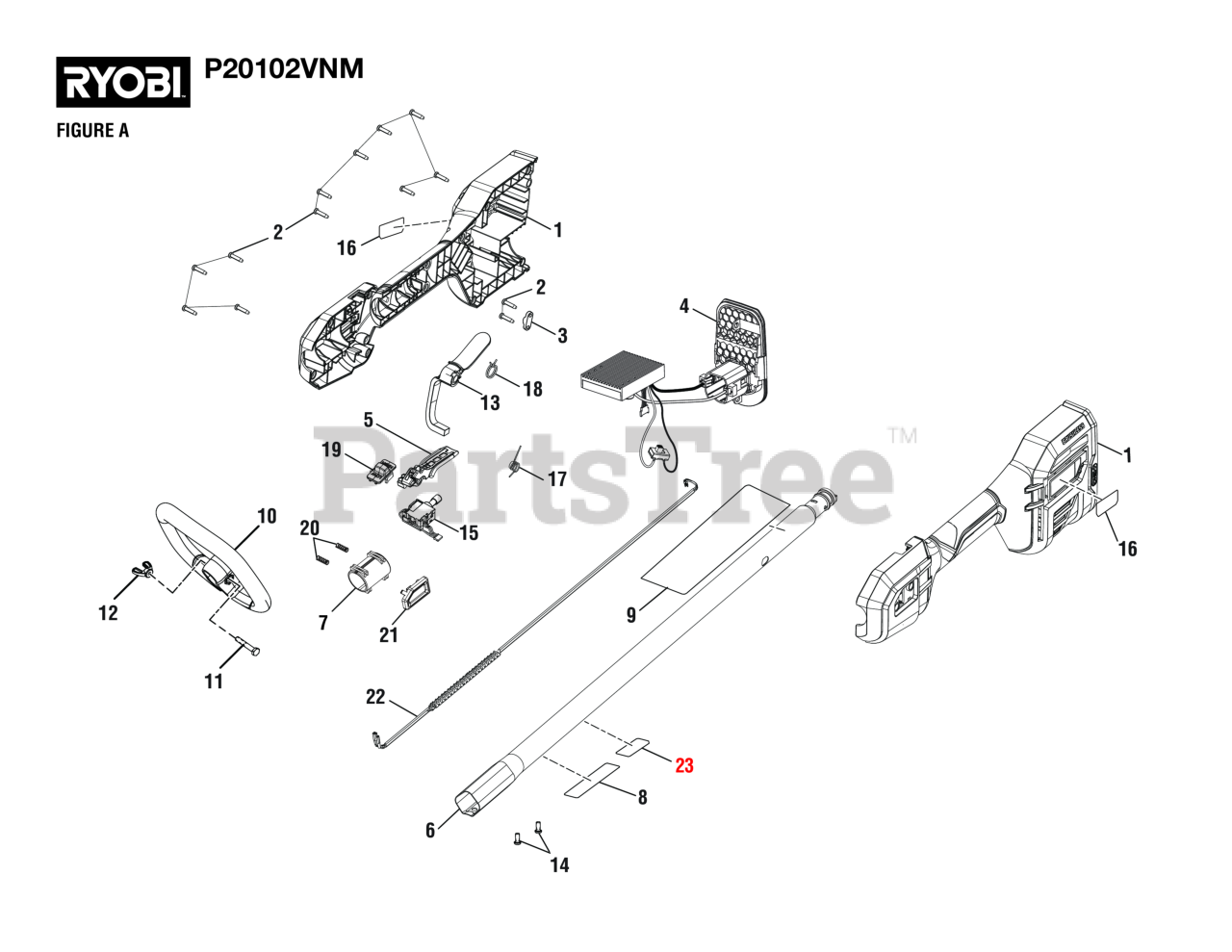

FIGURE A Parts Diagram

  • Title

1

Homelite 316077001

Rear Handle Assembly

Note: (Inc. Key No. 16)

$

$

Currently unavailable

2

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

3

Homelite 513211001

Wire Press Plate

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 316078001

Motor Controller and Switch Assembly

$100.99

$

Usually ships in 3-7 days

0

5

Homelite 539527001

Trigger

$

$

Currently unavailable

6

Homelite 316079001

Upper Boom Assembly

Note: (Inc. Key Nos. 8-9 & 23)

$26.99

$

Usually ships in 3-7 days

0

7

Homelite 539531001

Boom Holder

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 941588659

Data Label

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 941588795

Warning Icons Label

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 308991003

Auxiliary Handle Assembly

Note: (Inc. Key Nos. 11-12)

$13.99

$

Usually ships in 3-7 days

0

11

Homelite 660643008

Screw (1/4-20 x 40 mm, Cap Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

13

Homelite 539526001

Lock-Out Trigger

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 660502002

Screw w/Lock Washer (M5 x 8 mm, Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

15

Homelite 760952004

Switch, Variabel Speed, 12VDC

$10.99

$

Usually ships in 3-7 days

0

16

Homelite 941588794

Logo Label

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 660502002

Screw w/Lock Washer (M5 x 8 mm, Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

18

Homelite 698399001

Torsion Spring

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 532076011

Slide Switch Cover

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 698460001

Spring

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 539530001

Rotation Button

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 770293001

Spring Wire

$40.99

$

Usually ships in 3-7 days

0

23

Homelite 941263206

QR Label

$1.99

$

Usually ships in 3-7 days

0

Homelite 998000054

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
