P 200C - Poulan Handheld Blower (2013-08) HOUSING Parts Diagram

Handheld Blower

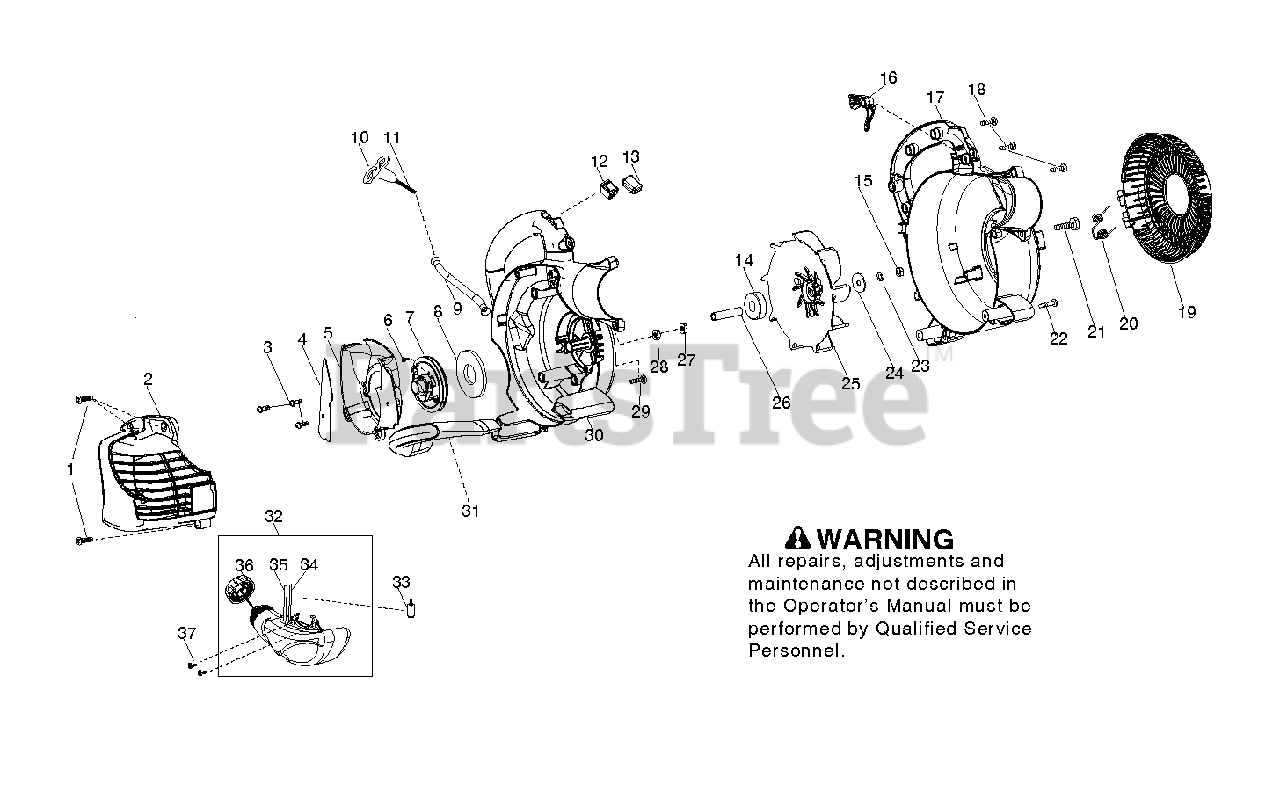

HOUSING Parts Diagram

  • Title

1

Poulan 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

2

Poulan 545135806

ASSY COVER ENGINE

$22.99

$

Usually ships in 3-10 days

0

3

Poulan 530015880

SCREW

$4.99

$

In Stock, Qty 8

0

4

Poulan 545134001

SHIELD BAFFLE

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 545099101

BAFFLE

$13.99

$

Usually ships in 3-10 days

0

6

Poulan 530016391

SCREW SEMS TOOTHED WASHER

$2.23

$

Usually ships in 3-10 days

0

7

Poulan 545081852

KIT STARTER PULLEY

$13.99

$

Usually ships in 3-10 days

0

8

Poulan 545054901

SPRING STARTER SA
(Superseded to 545008014)

$10.99

$

In Stock, only 1 left!

0

9

Poulan 545107101

TUBE STARTER ROPE

$8.99

$

Usually ships in 3-10 days

0

10

Poulan 530054834

HANDLE STARTER BLK

$4.99

$

In Stock, only 1 left!

0

11

Poulan 545050416

KIT ROPE

$8.99

$

In Stock, only 1 left!

0

12

Poulan 545081830

KIT SWITCH

Note: INCL 13

$8.99

$

In Stock, only 1 left!

0

13

Poulan 545128201

Protector Switch

$4.99

$

Usually ships in 3-10 days

0

14

Poulan 545099001

Hub Bearing

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 530626605

NUT

$5.99

$

Usually ships in 3-10 days

0

16

Poulan 576894601

TRIGGER THROTTLE SRS RED

$

$

Not available

17

Poulan 581423801

Note: INCL 19 20

$

$

Currently unavailable

18

Poulan 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

19

Poulan 545100801

DOOR VAC BLACK

$12.99

$

Usually ships in 3-10 days

0

20

Poulan 545115601

SPRING VAC DOOR

$4.99

$

Usually ships in 3-10 days

0

21

Poulan 545144501

KNOB BLOWER

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 530016406

SCREW #10 PLASTITE 1.362

$6.49

$

In Stock, only 1 left!

0

23

Poulan 530092322

LOCK WASHER

$3.49

$

Usually ships in 3-10 days

0

24

Poulan 545109901

Impeller Washer

$3.99

$

In Stock, only 1 left!

0

25

Poulan 545113601

ASSY IMPELLAR HUB
(Superseded to 580780901)

$14.99

$

In Stock, only 3 left!

0

26

Poulan 576810101

FLYWHEEL SPACER

$6.99

$

Usually ships in 3-10 days

0

27

Poulan 530015515

LOCKNUT

$4.99

$

In Stock, only 1 left!

0

28

Poulan 530015197

NUT

$6.49

$

In Stock, only 4 left!

0

29

Poulan 530016386

SCREW

$8.99

$

In Stock, only 1 left!

0

30

Poulan 581424101

Note: INCL 14

$

$

Currently unavailable

31

Poulan 545101201

HANDLE VAC BLACK

$14.99

$

In Stock, only 3 left!

0

32

Poulan 578943303

ASSY FUEL TANK
(Superseded to 581337213)

Note: INCL 34 35 36

$37.99

$

In Stock, only 3 left!

0

33

Poulan 577167201

Pre-Flushed Fuel Pick-up Assembly

$7.99

$

Usually ships in 3-10 days

0

34

Poulan 530069247

KIT-LINE

$7.99

$

In Stock, Qty 20+

0

35

Poulan 530069216

LINE KIT

$11.99

$

In Stock, Qty 20+

0

36

Poulan 578931603

FUEL CAP ASSY
(Superseded to 578931604)

$8.99

$

Usually ships in 3-10 days

0

37

Poulan 530016445

SCREW FUEL TANK RETAINER

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 115509026

$

$

Currently unavailable

39

Poulan 527290301

DECAL WARNING

$

$

Not available

40

Poulan 530095564

ASSY VAC BAG GAS W/STRAP

$34.99

$

In Stock, only 1 left!

0

41

Poulan 545099401

TUBE VAC UPPER BLACK

$20.99

$

In Stock, only 1 left!

0

42

Poulan 575873501

TUBE VACUUM J BLACK

$20.99

$

Usually ships in 3-10 days

0

43

Poulan 530095589

TUBE LOWER VAC

$

$

Not available
