P 2009 (107291001) - Ryobi String Trimmer, Cordless, Rev 09 (2019-11) FIGURE B Parts Diagram

String Trimmer, Cordless, Rev 09

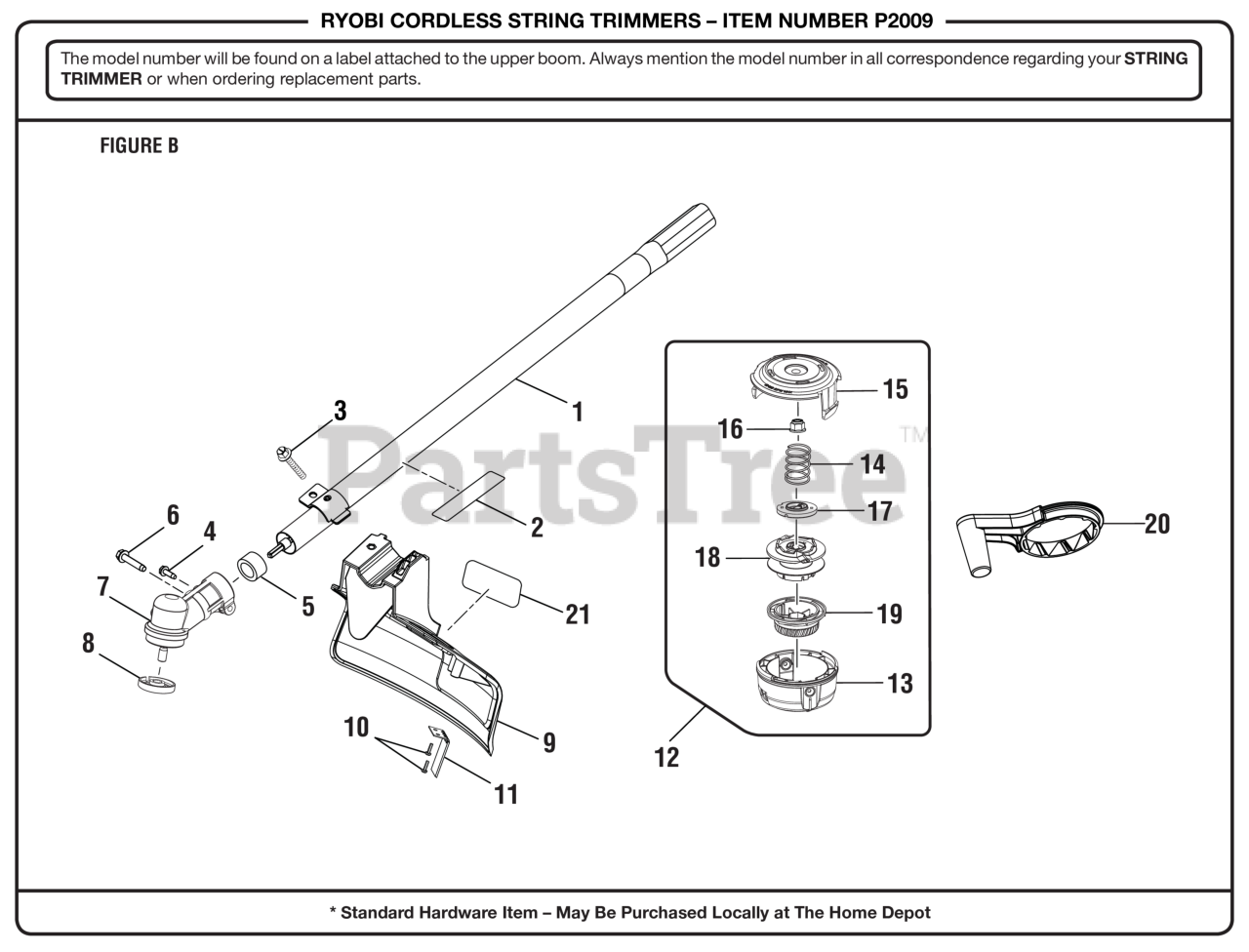

FIGURE B Parts Diagram

  • Title

1

Homelite 205002001

Lower Boom Assembly

$14.99

$

Usually ships in 3-7 days

0

2

Homelite 940020025

Lower Boom Lithium Label

$

$

Not available

3

Homelite 660738002

SCREW (#1/4-20 X 1-1/4 in. HEX WASHER HD.)
(Superseded to 983379078)

$

$

Not available

4

Homelite 660641001

Screw w/Washer (10-24 x 5/8 in., Hex Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 518367001

SPACER

$1.99

$

In Stock, only 3 left!

0

6

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd. S.T.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

7

Homelite 308210009

Gear Case Assembly

$48.99

$

In Stock, only 1 left!

0

8

Homelite 678011001

FLANGED WASHER
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

9

Homelite 205005001

Grass Deflector Assembly

$

$

Not available

10

Homelite 660208055

Screw (M4 x 12 mm, Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

11

Homelite 637849001

Line Cut-Off Blade

$2.99

$

In Stock, only 1 left!

0

12

Homelite 313318001

Trimmer Head Assembly (.080)

$23.99

$

In Stock, only 2 left!

0

13

Homelite 530366001

Lower Housing

$8.49

$

In Stock, only 2 left!

0

14

Homelite 678749001

Compression Spring

$1.99

$

In Stock, Qty 20+

0

15

Homelite 530001004

Upper Housing

$4.49

$

In Stock, only 2 left!

0

16

Homelite 662568002

Hex Nut (M8, Left Hand Threads)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 529803001

String Guide

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 530670001

Spool Assembly

$2.99

$

In Stock, Qty 13

0

19

Homelite 530455002

Bump Knob (Green)

$4.49

$

In Stock, Qty 8

0

20

Homelite 312283001

Crank Handle Assembly

$2.99

$

In Stock, only 1 left!

0

21

Homelite 941020005

Logo Label (Guard)

$1.99

$

Usually ships in 3-7 days

0
