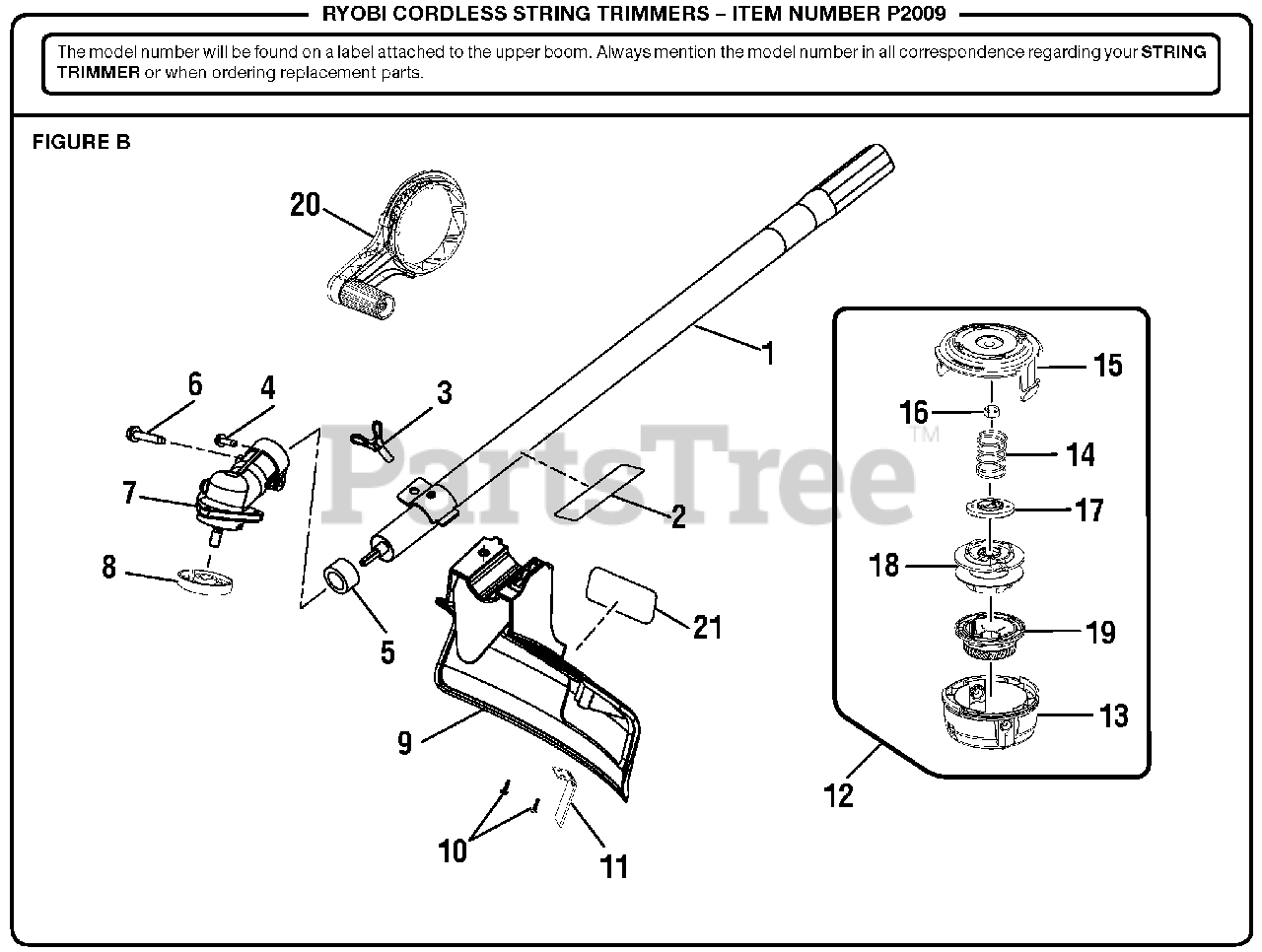

P 2009 (107291001) - Ryobi String Trimmer, Cordless, Rev 05 (2018-03) Figure B Parts Diagram

String Trimmer, Cordless, Rev 05

Figure B Parts Diagram

  • Title

1

Homelite 205002001

Lower Boom Assembly

Note: (Inc. Key No. 2)

$14.99

$

Usually ships in 3-7 days

0

2

Homelite 940020025

Logo Label (Shaft)

$

$

Not available

3

Homelite 660886001

Wing Screw

$1.99

$

In Stock, Qty 5

0

4

Homelite 660641001

Screw (10-24 x 5/8in., Hex Washer Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 518367001

Spacer

$1.99

$

In Stock, only 3 left!

0

6

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd. S.T.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

7

Homelite 308210008

Gear Head Assembly
(Superseded to 308210001)

$

$

Not available

8

Homelite 678011001

Flanged Washer
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

9

Homelite 205005001

Grass Deflector Assembly

Note: (Incl. Key Nos. 3, 10-11 & 21)

$

$

Not available

10

Homelite 660208055

Screw (M4 x 12 mm)

$1.99

$

In Stock, only 4 left!

0

11

Homelite 637849001

Line Cut-Off Blade

$2.99

$

In Stock, only 1 left!

0

12

Homelite 311759008

Trimmer Head Assembly (.080)
(Superseded to 313318001)

Note: (Inc. Key Nos. 13-19)

$23.99

$

In Stock, only 2 left!

0

13

Homelite 530366001

Lower Housing

$8.49

$

In Stock, only 2 left!

0

14

Homelite 678749001

Spring

$1.99

$

In Stock, Qty 20+

0

15

Homelite 530001001

Upper Housing

$

$

Not available

16

Homelite 695215001

Nut (M8)

$

$

Not available

17

Homelite 529803001

String Guide

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 530670001

Spool Assembly

$2.99

$

In Stock, Qty 5

0

19

Homelite 530455002

Bump Knob (Green)

$4.49

$

In Stock, Qty 10

0

20

Homelite 312283001

Crank Handle Assembly

$2.99

$

In Stock, only 2 left!

0

21

Homelite 941020005

Logo Label (Guard)

$1.99

$

Usually ships in 3-7 days

0
