P 2008 (107268001) - Ryobi 18V String Trimmer/Edger General Assembly Parts Diagram

18V String Trimmer/Edger

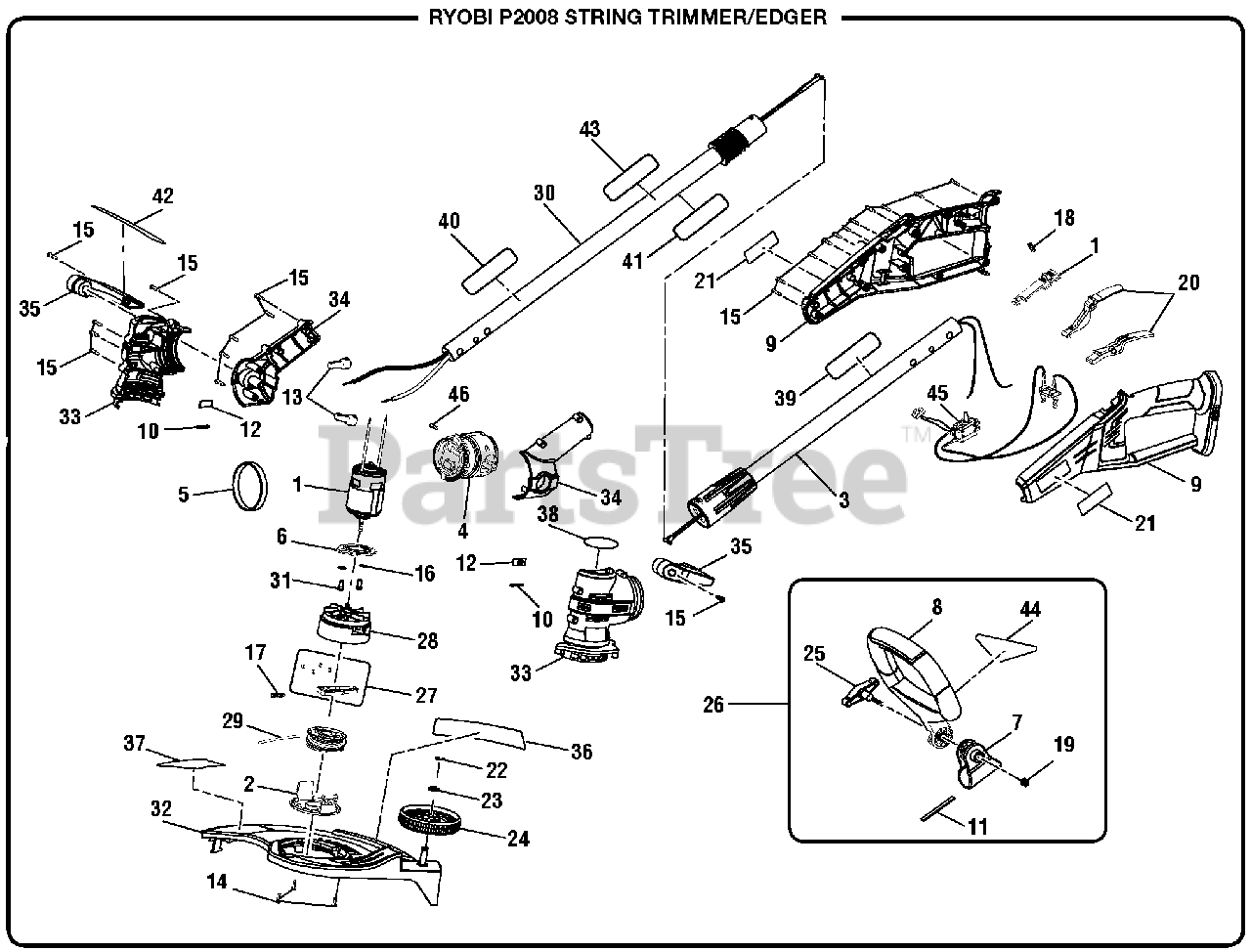

General Assembly Parts Diagram

  • Title

1

Homelite 742199001

Motor

$92.99

$

Usually ships in 3-7 days

0

2

Spool Cap

Note: Standard Hardware Item - May Be Purchased Locally at The Home Depot

$

$

Not available

3

Homelite 311746001

Upper Tube and Wire Assembly

Note: (Inc. Key No. 39)

$26.99

$

Usually ships in 3-7 days

0

4

Homelite 351109001

Pivot Assembly

$11.99

$

Usually ships in 3-7 days

0

5

Homelite 522923001

Plastic Ring

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 522926001

Motor Mounting Plate

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 522984001

Handle Bracket

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 351119001

Front Handle

Note: (Inc. Key No. 44)

$15.99

$

Usually ships in 3-7 days

0

9

Homelite 351113001

Handle Housing Assembly

Note: (Inc. Key No. 21)

$31.99

$

Usually ships in 3-7 days

0

10

Homelite 562079002

Rubber Plate (Motor Plate)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 570112001

Rubber Plate (Handle Bracket)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 570815001

Rubber Plate (Motor)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 790009004

Wire Connector

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 660208055

Screw (M4 x 12 mm, Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

15

Homelite 661817001

Screw (M4 x 14 mm, T14 Torx Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

16

Homelite 670960005

Lock Washer (M5, OD10 x ID5 x 0.45t))

$

$

Currently unavailable

17

Homelite 679034001

Compression Spring (Internal Tooth)

$1.99

$

In Stock, Qty 5

0

18

Homelite 679406001

Compression Spring (Trigger)

$1.99

$

In Stock, only 1 left!

0

19

Homelite 680196006

Hex Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 351183001

Switch Trigger and Lock-off Trigger

$5.49

$

In Stock, only 1 left!

0

21

Homelite 940705308

Logo Label

$

$

Not available

22

Homelite 679933001

E-Ring

$1.99

$

In Stock, Qty 5

0

23

Homelite 678587002

Washer (OD16 x ID8.2 x 1.2t)

$1.99

$

In Stock, Qty 5

0

24

Homelite 522929001

Roller

$1.99

$

In Stock, only 4 left!

0

25

Homelite 522983001

Knob Bolt (M6 x 1 in.)
(Superseded to 314754001)

$1.49

$

In Stock, only 1 left!

0

26

Homelite 351182001

Auxiliary Handle Assembly

Note: (Inc. Key Nos. 7-8, 11, 19, 25 and 44)

$23.99

$

Usually ships in 3-7 days

0

27

Homelite 310920001

Slider Assembly

$6.49

$

In Stock, only 2 left!

0

28

Homelite 524851002

Spool Base w/Fan

$5.99

$

In Stock, only 2 left!

0

29

Spool w/Line Assembly

Note: Standard Hardware Item - May Be Purchased Locally at The Home Depot

$

$

Not available

30

Homelite 311747001

Lower Tube Assembly

Note: (Inc. Key Nos. 40-41 and 43)

$

$

Not available

31

Homelite 660502002

Screw w/Washer (M5 x 11 mm)

$1.99

$

In Stock, only 1 left!

0

32

Homelite 351122001

Guard Assembly

Note: (Inc. Key Nos. 36-37)

$19.99

$

Usually ships in 3-7 days

0

33

Homelite 351112001

Motor Housing Assembly

Note: (Inc. Key No. 38)

$13.99

$

In Stock, only 2 left!

0

34

Homelite 351110001

Lower Housing Assembly

$6.99

$

In Stock, only 2 left!

0

35

Homelite 351106001

Adjustment Pedal Assembly

$

$

Not available

36

Homelite 940851102

Auto Feed No Bump Label (Guard)

$1.99

$

In Stock, Qty 5

0

37

Homelite 940851103

Adjustable Cutting Width Label

$1.99

$

In Stock, only 1 left!

0

38

Homelite 940705309

Motor Housing Label

$1.99

$

In Stock, only 2 left!

0

39

Homelite 941588104

Data Label

$

$

Not available

40

Homelite 940705310

Ryobi 18 V Lithium Label

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 940851101

Warning Translation Label

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 941773001

Step For Edging Label

$1.99

$

In Stock, only 1 left!

0

43

Homelite 940657185

Warning Icon Label

$

$

Not available

44

Homelite 940851105

Auto Feed No Bump Label (Handle)

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 311895001

Switch and Contact Plate Assembly

$

$

Not available

46

Homelite 660004019

Screw (M3 x 12 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

Homelite 991000677

Operator's Manual

Note: Not Shown

$

$

Not available
