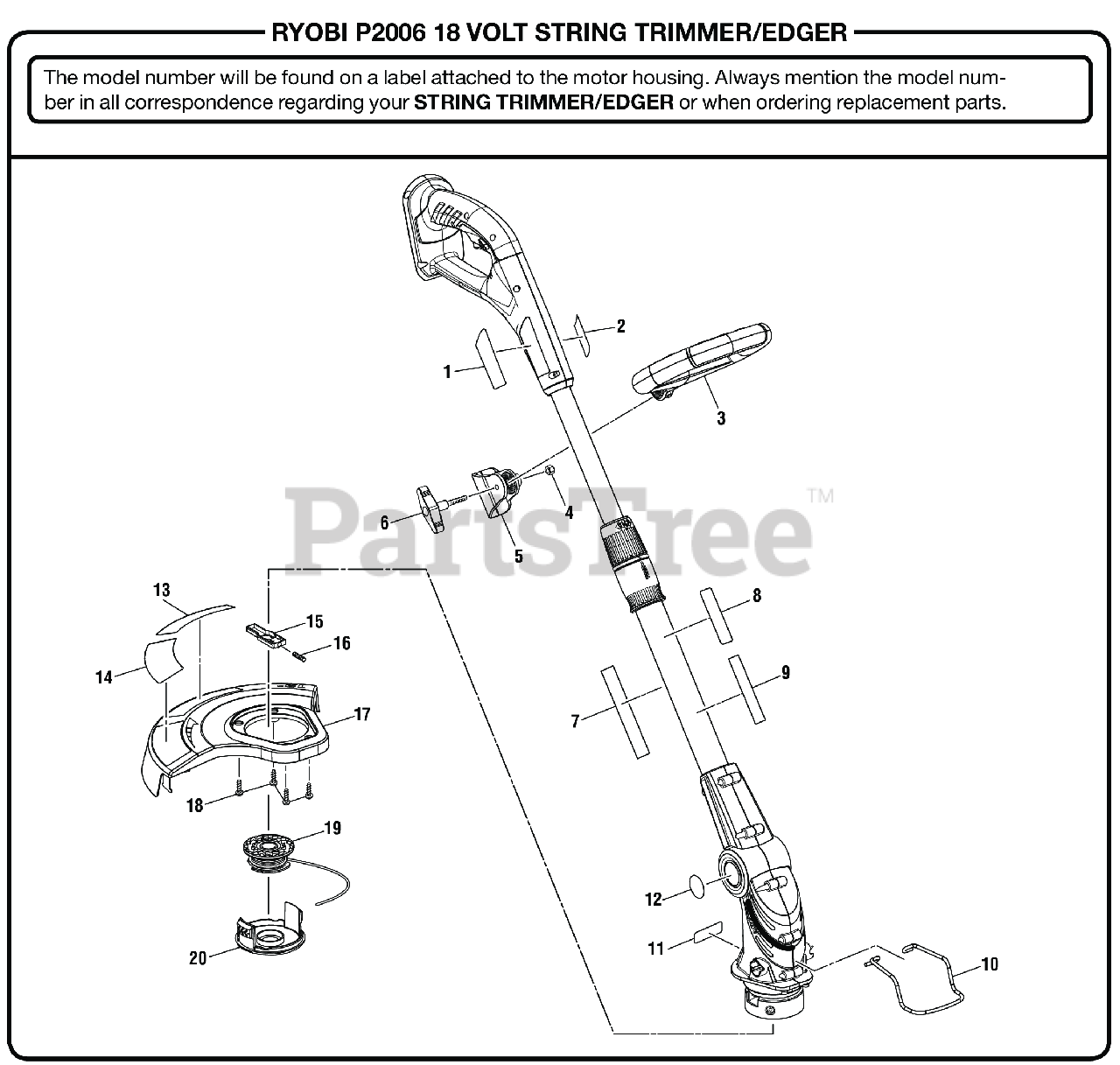

P 2006 - Ryobi 18V String Trimmer/Edger, Rev 03 (2018-11) General Assembly Parts Diagram

18V String Trimmer/Edger, Rev 03

General Assembly Parts Diagram

  • Title

1

Homelite 940115122

Data Label

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 941545001

Logo Label (Handle)

$

$

Not available

3

Homelite 523409001

Lower Auxiliary Handle

$15.99

$

Usually ships in 3-7 days

0

4

Homelite 680196006

Lock Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 310921001

Clamp Assembly

$7.99

$

Usually ships in 3-7 days

0

6

Homelite 313559001

Knob Assembly

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 940006237

Warning Label (Fr/Sp)

$

$

Not available

8

Homelite 940657049

Warning Label (Icon)

$

$

Not available

9

Homelite 941527003

18V Lithium-Ion Label

$

$

Not available

10

Homelite 638846002

Edger Guide

$5.49

$

Usually ships in 3-7 days

0

11

Homelite 940705163

Logo Label (Housing)

$

$

Not available

12

Homelite 941529002

Pivoting Head Label

$

$

Not available

13

Homelite 941528003

Autofeed String Head Label

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 941606001

Adjustable Cutting Width Label

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 310920001

Slider Assembly

$6.49

$

In Stock, only 2 left!

0

16

Homelite 679034001

Compression Spring (Internal Tooth)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 310922003

Grass Deflector Assembly

$12.99

$

In Stock, Qty 7

0

18

Homelite 660208055

Screw (M4 x 12 mm, Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

19

Homelite 310917001

Spool Assembly (.065 round-RY40021)

$

$

Not available

20

Homelite 522994001

Spool Cap (AC14HCA)

$1.99

$

In Stock, Qty 14

0

Homelite 988000717

Operator's Manual

Note: NOT SHOWN

$

$

Not available
