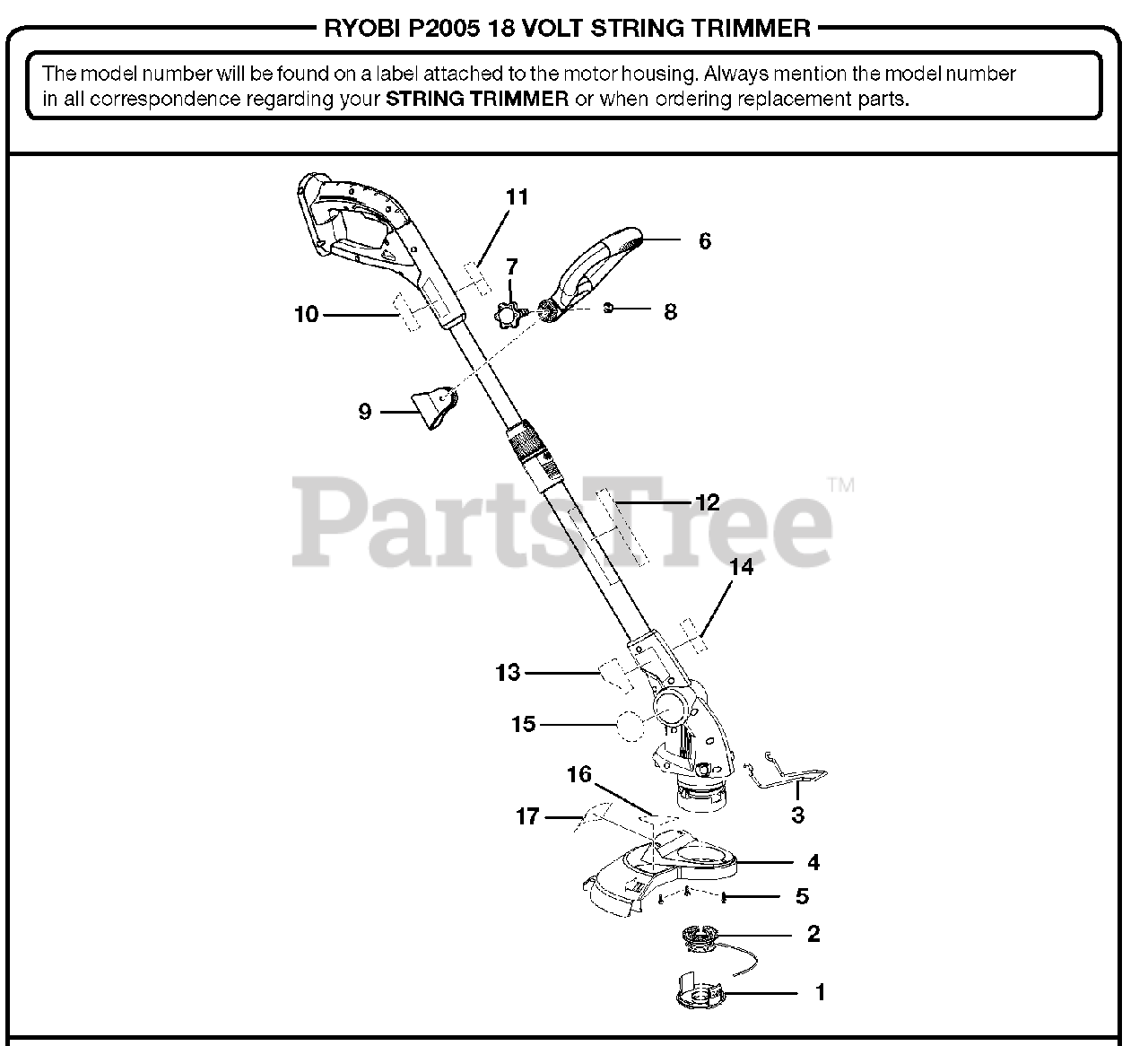

P 2005 - Ryobi 18V String Trimmer General Assembly Parts Diagram

18V String Trimmer

General Assembly Parts Diagram

  • Title

1

Homelite 3411546BG

Spool Cap (AC14HC)
(Superseded to 522994001)

$1.99

$

In Stock, Qty 12

0

2

Homelite 3110382G

Spool w/Line (AC14RSL)
(Superseded to 3110382AG)

$

$

Not available

3

Homelite 3330182G

Edger Guide

$

$

Not available

4

Homelite 31103345G

Grass Deflector Assembly

$

$

Not available

5

Homelite 31106181G

Screw (M4 x 10 mm)

$

$

Not available

6

Homelite 31109345G

Front Handle
(Superseded to 523409001)

$15.99

$

Usually ships in 3-7 days

0

7

Homelite 3410705BG

Knob Screw (M6)
(Superseded to 3410705AG)

$

$

Not available

8

Homelite 3290205G

Hex Nut (M6)

$1.49

$

In Stock, only 2 left!

0

9

Homelite 31104181G

Clamp

$1.99

$

In Stock, only 1 left!

0

10

Homelite 099920001900

Warning and Data Label Handle)

$

$

Currently unavailable

11

Homelite 099959001901

Logo Label (Handle)

$

$

Not available

12

Homelite 099959001907

Warning Label (Icon)

$

$

Not available

13

Homelite 099959001906

Warning Label (French/Spanish)

$

$

Not available

14

Homelite 099959001902

18V Lithium Ion Label

$

$

Not available

15

Homelite 099959001904

Pivoting Head Label

$

$

Not available

16

Homelite 099959001903

Auto Line Feed Label

$

$

Not available

17

Homelite 099959001900

Logo Label (Shield)

$

$

Not available

Homelite 98800086

Operator's Manual

Note: (Not Shown)

$

$

Currently unavailable
