P 20023 VNM (318083001) - Ryobi 18V String Trimmer/Edger, Rev 03 (2022-01) General Assembly Parts Diagram

18V String Trimmer/Edger, Rev 03

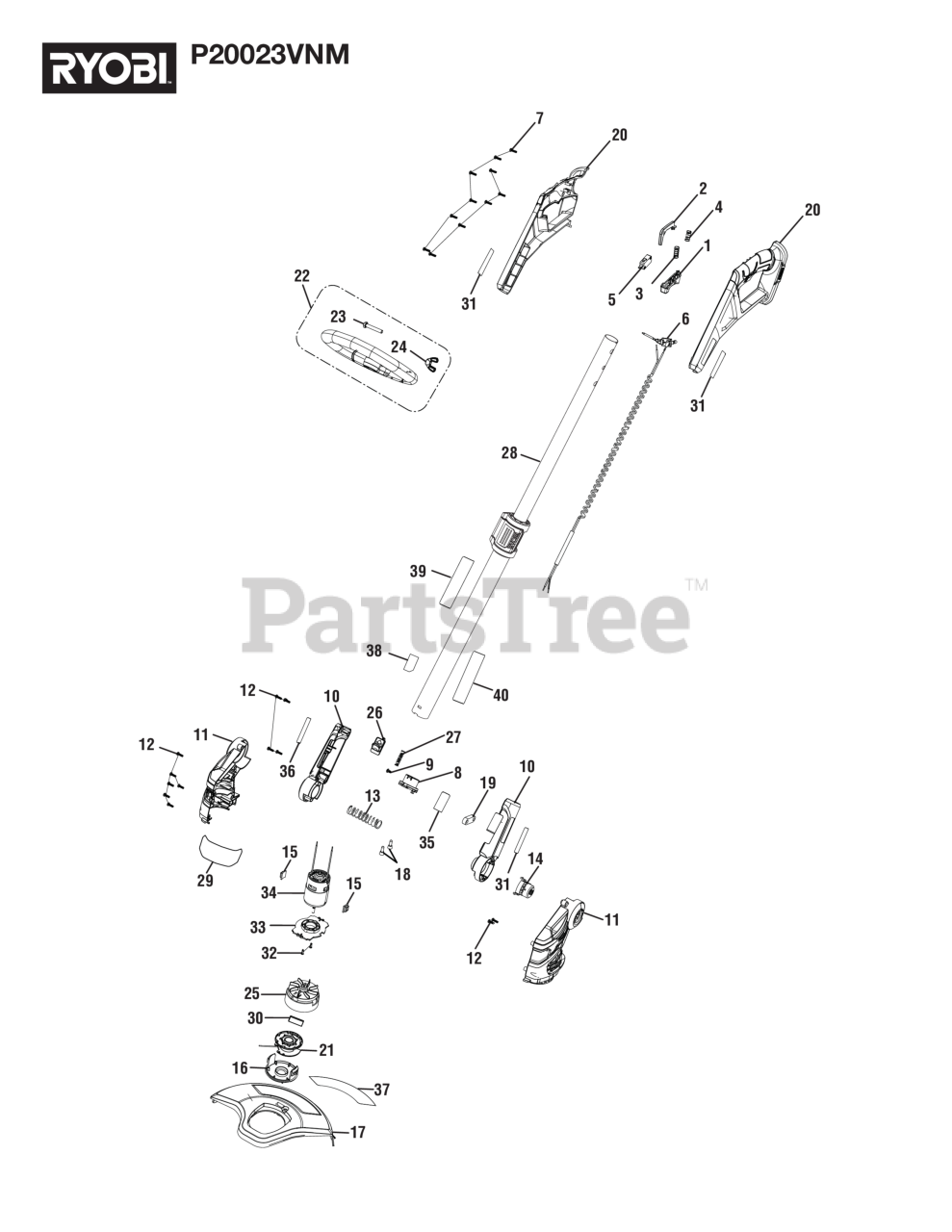

General Assembly Parts Diagram

  • Title

1

Homelite 525491002

Switch Trigger

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 525492005

Trigger Lock-Out Button

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 679002002

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 679083001

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 760279001

Micro Switch

$

$

Currently unavailable

6

Homelite 205759001

Wire and Contact Plate Assembly

$16.99

$

Usually ships in 3-7 days

0

7

Homelite 660206055

Screw (M3.5 x 14 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 531889001

Lower Tube Bushing

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 660922002

Screw (M4x 7 mm, T20 Torx Hd)

$1.99

$

In Stock, only 1 left!

0

10

Homelite 205760001

Shaft Coupler Assembly

Note: (Inc. Key Nos. 31 & 35-36)

$13.99

$

Usually ships in 3-7 days

0

11

Homelite 205761001

Motor Housing Assmbely

Note: (Inc. Key No. 29)

$18.99

$

Usually ships in 3-7 days

0

12

Homelite 660208055

Screw (M4 x 12 mm, Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

13

Homelite 679030001

Pivot Button Spring

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 522999005

Pivot Button

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 570115001

Rubber Bumper

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 522994006

Spool Cap (AC14HC)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 205762001

Guard Assembly

Note: (Inc. Key No. 37)

$17.99

$

Usually ships in 3-7 days

0

18

Homelite 790009004

Wire Connector (Closed End)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 513211001

Wire Press Plate

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 205763001

Rear Handle Assembly

Note: (Inc. Key No. 31)

$26.99

$

Usually ships in 3-7 days

0

21

Homelite 310917007

Spool Assembly

$6.99

$

In Stock, only 3 left!

0

22

Homelite 308991006

Auxiliary Handle Assembly

Note: (Inc. Key Nos. 23-24)

$15.99

$

Usually ships in 3-7 days

0

23

Homelite 660643009

Bolt (1/4-20 x 45 mm, Cap Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

25

Homelite 311155001

Spool Base & Slider Assembly

$14.99

$

Usually ships in 0 days

0

26

Homelite 531888002

Edger Button

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 679935007

Edger Button Spring

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 205764001

Telescoping Shaft Assembly

Note: (Inc. Key Nos. 38-40)

$37.99

$

Usually ships in 3-7 days

0

29

Homelite 941263184

Logo Label

$

$

Currently unavailable

30

Homelite 639154001

BALANCE PLATE

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 940705492

Logo Label

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 662052001

Screw (T25 x 12 mm, Flange Hd.)

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 544857001

Motor Mounting Plate

$4.49

$

Usually ships in 3-7 days

0

34

Homelite 742199004

Motor

$101.99

$

Usually ships in 3-7 days

0

35

Homelite 941263181

Pull to Edge Label

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 941097136

QR Label

$

$

Not available

37

Homelite 941263137

Autofeed Label

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 941263138

QR Label

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 940657185

Warning Icon Label

$

$

Not available

40

Homelite 941013005

Warning Label (French/Spanish)

$1.99

$

Usually ships in 3-7 days

0

Homelite 998000707

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
