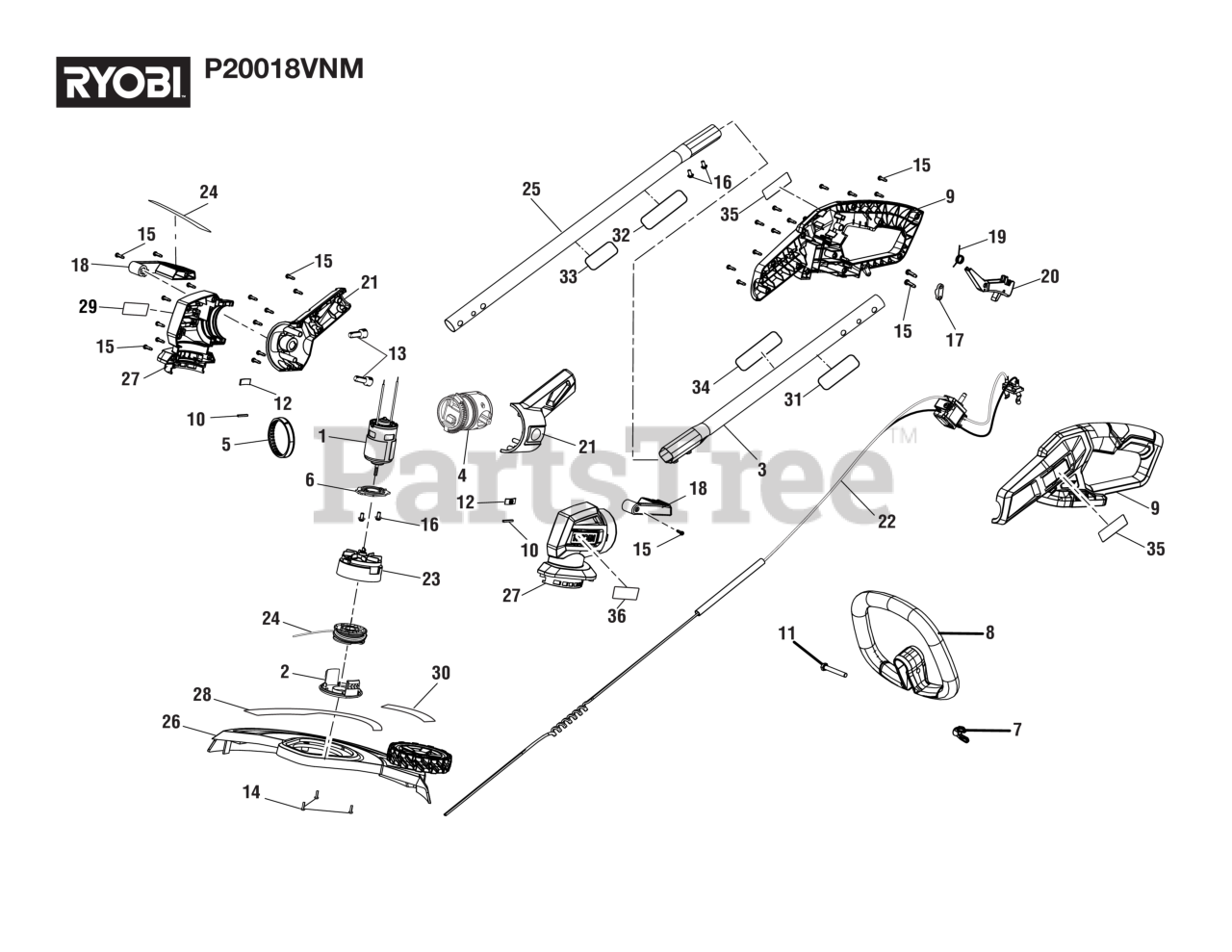

P 20018 VNM (108793001) - Ryobi 18V String Trimmer/Edger, Rev 02 (2022-02) General Assembly Parts Diagram

18V String Trimmer/Edger, Rev 02

General Assembly Parts Diagram

  • Title

1

Homelite 742199004

Motor

$101.99

$

Usually ships in 3-7 days

0

2

Spool Cover

Note: Standard Hardware Item - May Be Purchased Locally at The Home Depot

$

$

Not available

3

Homelite 205775001

Upper Tube Assembly

Note: (Inc. Key Nos. 31 & 34)

$19.99

$

Usually ships in 3-7 days

0

4

Homelite 351109001

Pivot Assembly

$11.99

$

Usually ships in 3-7 days

0

5

Homelite 545331001

Plastic Ring

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 522926001

Motor Mounting Plate

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

8

Homelite 526764002

Front Handle

$9.49

$

Usually ships in 3-7 days

0

9

Homelite 205774001

Handle Housing Assembly

Note: (Inc. Key No. 35)

$27.99

$

Usually ships in 3-7 days

0

10

Homelite 562079003

Rubber Plate (Motor Plate)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 660643009

Bolt (1/4-20 x 45 mm, Cap Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 570815001

Rubber Plate (Motor)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 790009004

Wire Connector (Closed End)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 660208055

Screw (M4 x 12 mm, Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

15

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

16

Homelite 660502002

Screw w/Lock Washer (M5 x 8 mm, Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

17

Homelite 523001003

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 205778001

Adjustment Pedal Assembly

$8.49

$

Usually ships in 3-7 days

0

19

Homelite 699987001

Trigger Spring

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 205773001

Trigger Assembly

$8.99

$

Usually ships in 3-7 days

0

21

Homelite 205776001

Lower Housing Assembly

$8.49

$

Usually ships in 3-7 days

0

22

Homelite 318512001

Switch and Contact Plate Assembly

$51.99

$

Usually ships in 3-7 days

0

23

Homelite 311155001

Spool Base & Slider Assembly

$14.99

$

Usually ships in 0 days

0

24

Spool With Line Assembly

Note: Standard Hardware Item - May Be Purchased Locally at The Home Depot

$

$

Not available

25

Homelite 205772001

Lower Tube Assembly

Note: (Inc. Key Nos. 32-33)

$18.99

$

Usually ships in 3-7 days

0

26

Homelite 205779001

Guard Assembly

Note: (Inc. Key Nos. 28 & 30)

$32.99

$

Usually ships in 3-7 days

0

27

Homelite 205777001

Motor Housing Assembly

Note: (Inc. Key No. 29)

$14.99

$

Usually ships in 3-7 days

0

28

Homelite 941263101

Autofeed Guard Label

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 940705490

Logo Label

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 941263104

Adjustable Cutting Width Label

$1.99

$

Usually ships in 0 days

0

31

Homelite 941013005

Warning Label (French/Spanish)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 941263102

Data Label

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 941263103

QR Label

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 940657185

Warning Icon Label

$

$

Not available

35

Homelite 940705491

Logo Label

$1.99

$

Usually ships in 3-7 days

0

Homelite 998000700

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
