P 200107 HRB (960610178-05) - Husqvarna Lawn Tractor (2011-08) ENGINE Parts Diagram

Lawn Tractor

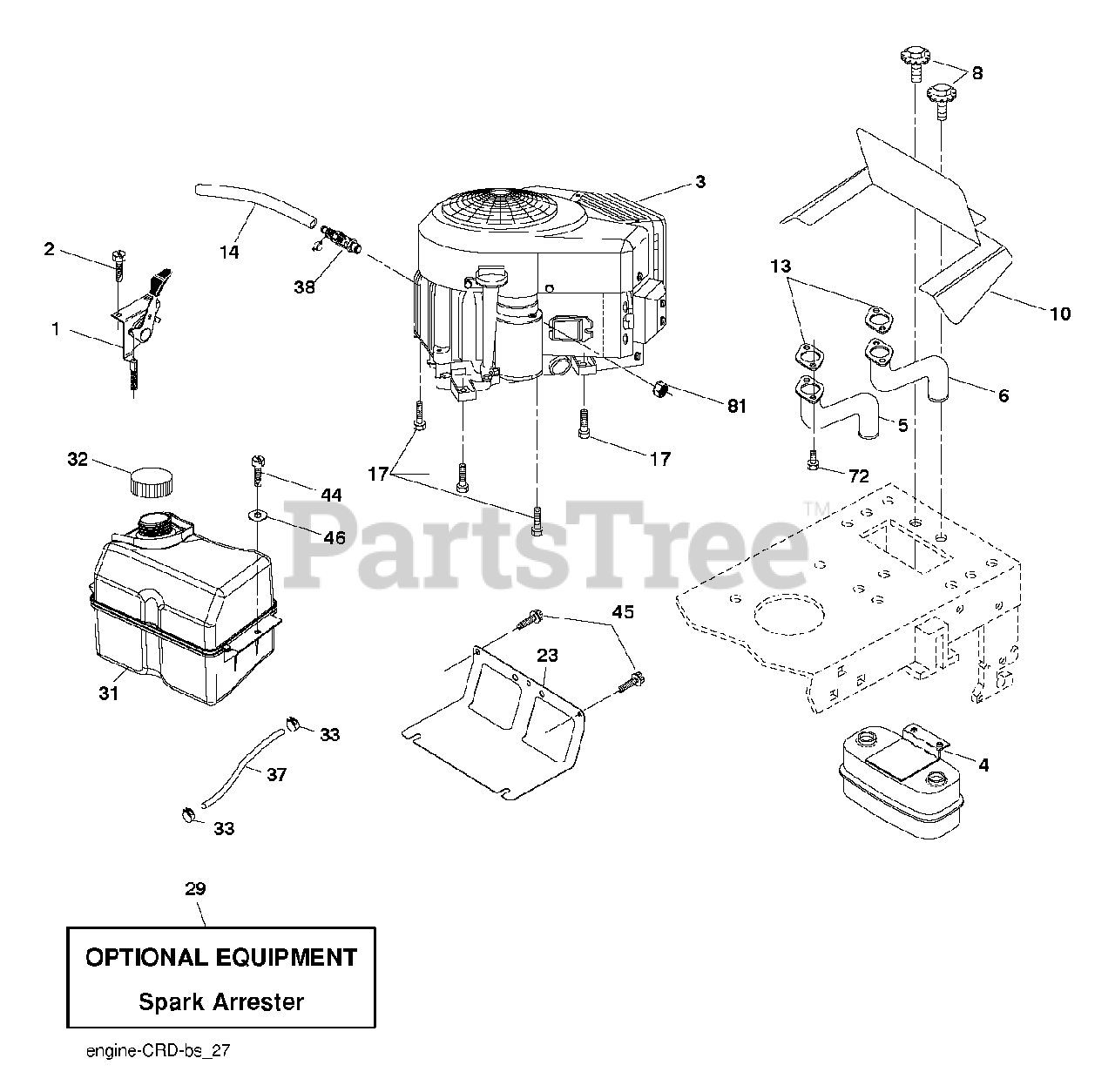

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 532424686

NO LONGER AVAILABLE
(Superseded to 583415001)

$30.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 000000000

NO LONGER AVAILABLE

Note: ENGINE B S MODEL NO 406777-2271-B1 (438699)

$

$

Not available

4

Electrolux/AYP 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532159955

EXHAUST TUBE LH *SUBS/2*
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 532160589

EXHAUST TUBE RH
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 6

0

10

Electrolux/AYP 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 19

0

14

Electrolux/AYP 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 6

0

17

$7.49

$

In Stock, Qty 11

0

23

Electrolux/AYP 532169837

SHEILD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532137180

ARRESTER SPARK (OPTIONAL)
(Superseded to 532121851)

$

$

Not available

31

Electrolux/AYP 532407551

NO LONGER AVAILABLE

$

$

Not available

32

Electrolux/AYP 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

$7.49

$

In Stock, only 1 left!

0

37

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 5

0

44

Electrolux/AYP 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

45

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

$6.49

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 873510400

NUT
(Superseded to 873640400)

$

$

Not available
