P 200107 HRB (960610178-05) - Husqvarna Lawn Tractor (2011-08) DRIVE Parts Diagram

Lawn Tractor

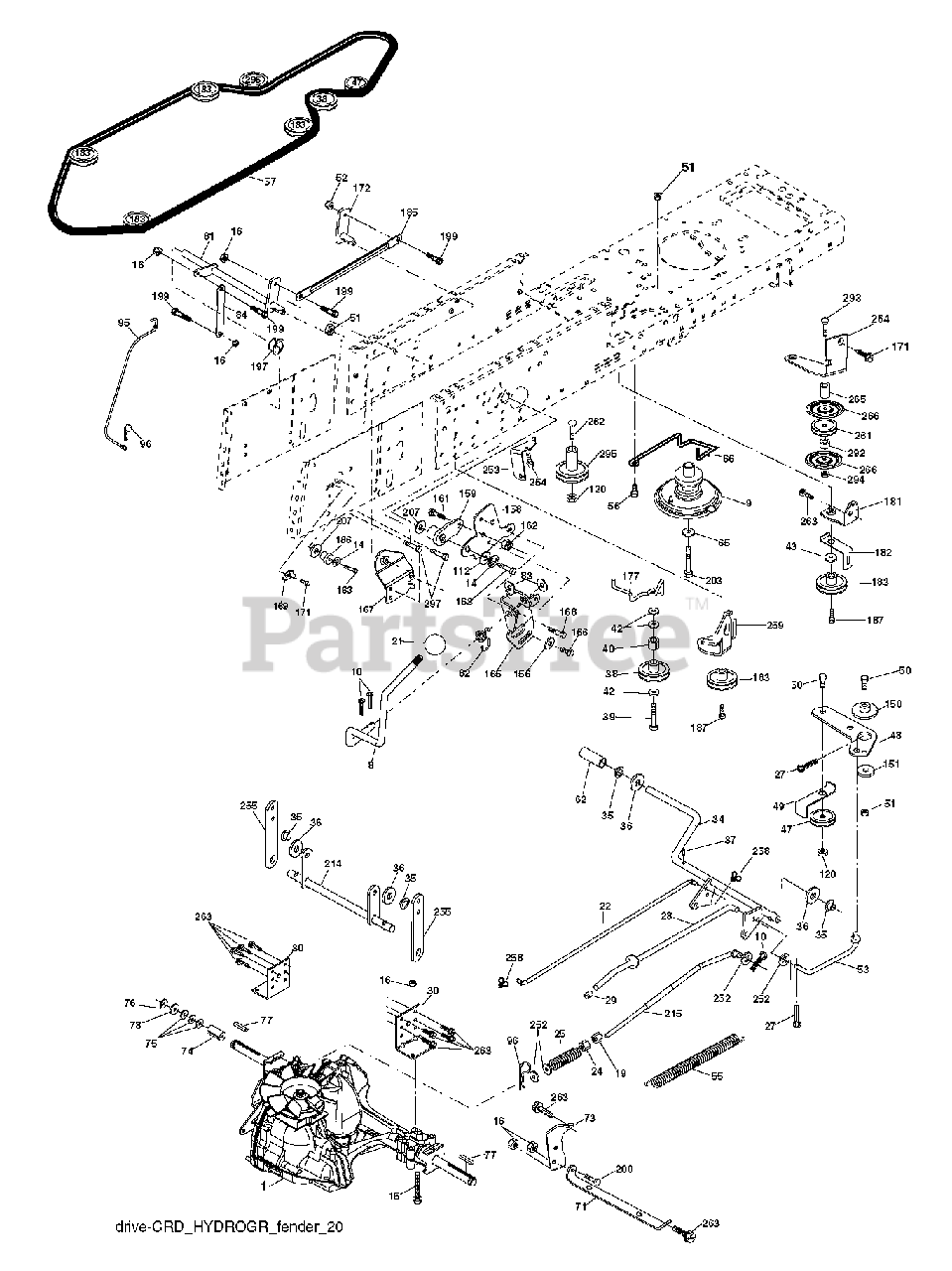

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 000000000

NO LONGER AVAILABLE

Note: Transaxle Hydro Gear 321-0510 (170061)

$

$

Not available

8

Electrolux/AYP 532192706

ROD SHIFT FENDER ADJUST LT
(Superseded to 585139901)

$20.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532408579

NO LONGER AVAILABLE

$

$

Not available

10

Electrolux/AYP 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

15

Electrolux/AYP 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532140845

KNOB.DELUXE.(PISTOL.GRIP).BLAC

$13.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532175607

NO LONGER AVAILABLE
(Superseded to 583070201)

$27.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 532192036

NO LONGER AVAILABLE
(Superseded to 583201301)

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 532175765

ROD, PARKING BRAKE

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532169592

BRKT, TRNSXLE MNT 20"

$6.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532175578

SHAFT, FOOT PEDAL

$31.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

36

Electrolux/AYP 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532124963

DRIVE PIN
(Superseded to 532002882)

$

$

Not available

38

Electrolux/AYP 532165936

PULLEY.FLAT

$31.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 874760644

BOLT

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532124965

SPACER T

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

43

Electrolux/AYP 819111012

WASHER T

$6.49

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 532127783

IDLER PULLEY
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

48

Electrolux/AYP 532154407

BELLCRANK, CLUTCH

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

52

Electrolux/AYP 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 532199652

LINK.CLUTCH.7.66.2005

$13.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

57

Electrolux/AYP 532170140

V-BELT 113"
(Superseded to 583036701)

$85.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 532169183

STRAP TORQUE LH HYDRO

$7.49

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 532169182

STRAP TORQUE RH HYDRO

$17.99

$

In Stock, only 1 left!

0

74

Electrolux/AYP 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

75

Electrolux/AYP 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

78

Electrolux/AYP 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

81

Electrolux/AYP 532170006

SHAFT ASSY
(Superseded to 170006)

$12.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 532165711

SHIFT SPRING

$7.49

$

In Stock, only 1 left!

0

83

Electrolux/AYP 819171216

WASHER
(Superseded to 19171216)

$

$

Not available

84

Electrolux/AYP 532170007

LINK.PNT.TRANSAXLE.0510.CRD
(Superseded to 583035901)

$6.99

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 532170015

NO LONGER AVAILABLE
(Superseded to 583036101)

$21.99

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

112

Electrolux/AYP 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

In Stock, only 1 left!

0

120

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

150

Electrolux/AYP 532165850

BUSHING.BELLCRANK.GRD.DR

$

$

Not available

151

Electrolux/AYP 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

156

Electrolux/AYP 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

158

Electrolux/AYP 532437458

BRACKET.SHIFT.MOUNT

$7.49

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 532183900

HUB.SHIFT
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Electrolux/AYP 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

163

Electrolux/AYP 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

165

Electrolux/AYP 532438250

BRACKET.PIVOT.LEVER

$7.49

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 817490510

SCREW

$4.99

$

Usually ships in 3-10 days

0

167

Electrolux/AYP 532165588

BRACKET
(Superseded to 574988801)

$

$

Not available

168

Electrolux/AYP 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

169

Electrolux/AYP 532165580

PLATE.FASTENING.CROSS.SHAFT

$6.99

$

Usually ships in 3-10 days

0

171

Electrolux/AYP 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

172

Electrolux/AYP 532170271

NO LONGER AVAILABLE
(Superseded to 583037801)

$24.99

$

Usually ships in 3-10 days

0

177

Electrolux/AYP 532165932

KEEPER

$7.99

$

Usually ships in 3-10 days

0

181

Electrolux/AYP 532180211

NO LONGER AVAILABLE
(Superseded to 583099101)

$5.99

$

Usually ships in 3-10 days

0

182

Electrolux/AYP 532182682

NO LONGER AVAILABLE
(Superseded to 583123401)

$4.99

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 532199534

PULLEY.V-IDLER.

$37.99

$

Usually ships in 3-10 days

0

185

Electrolux/AYP 532170008

NO LONGER AVAILABLE
(Superseded to 583036001)

$13.99

$

Usually ships in 3-10 days

0

186

Electrolux/AYP 532165614

HUB

$6.49

$

Usually ships in 3-10 days

0

187

Electrolux/AYP 817580520

BOLT.5/16-18X1.25

$4.99

$

In Stock, only 3 left!

0

197

Electrolux/AYP 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

199

Electrolux/AYP 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

$4.99

$

In Stock, only 2 left!

0

200

Electrolux/AYP 872140508

BOLT
(Superseded to 595901501)

$4.99

$

In Stock, only 4 left!

0

203

Electrolux/AYP 871170780

BOLT.HEX.7/16-20x5
(Superseded to 71170780)

$9.49

$

In Stock, only 1 left!

0

207

Electrolux/AYP 532169845

WASHER NYL

$4.99

$

Usually ships in 3-10 days

0

214

Electrolux/AYP 532175609

NO LONGER AVAILABLE
(Superseded to 583070401)

$11.99

$

Usually ships in 3-10 days

0

215

Electrolux/AYP 532175652

NO LONGER AVAILABLE

$

$

Not available

252

Electrolux/AYP 819131616

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

253

Electrolux/AYP 532175028

NO LONGER AVAILABLE

$

$

Not available

254

Electrolux/AYP 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

255

Electrolux/AYP 532175608

NO LONGER AVAILABLE
(Superseded to 583070301)

$2.99

$

Usually ships in 3-10 days

0

258

Electrolux/AYP 532178062

CLIP RETAINER

$4.99

$

In Stock, only 1 left!

0

259

Electrolux/AYP 532180212

NO LONGER AVAILABLE
(Superseded to 583099201)

$

$

Not available

261

Electrolux/AYP 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

262

Electrolux/AYP 872110622

BOLT

$4.99

$

In Stock, Qty 10

0

263

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

264

Electrolux/AYP 532431174

NO LONGER AVAILABLE
(Superseded to 583467201)

$13.99

$

Usually ships in 3-10 days

0

265

Electrolux/AYP 532426913

NO LONGER AVAILABLE

$

$

Not available

266

Electrolux/AYP 532182061

NO LONGER AVAILABLE
(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

292

Electrolux/AYP 532400271

NO LONGER AVAILABLE
(Superseded to 583261101)

$6.49

$

Usually ships in 3-10 days

0

293

Electrolux/AYP 872140628

NO LONGER AVAILABLE

$4.99

$

In Stock, only 2 left!

0

294

Electrolux/AYP 532197033

NUT, HEX 3/8-16

$4.99

$

Usually ships in 3-10 days

0

295

Electrolux/AYP 532179114

PULLEY IDLER COMPOSITE

$31.99

$

Usually ships in 3-10 days

0

297

Electrolux/AYP 817490610

SCREW LT.3/8-46X5/8

$4.99

$

Usually ships in 3-10 days
