P 200107 HRB (960610178-04) - Electrolux/AYP Lawn Tractor (2010-09) MOWER LIFT / DECK LIFT Parts Diagram

Lawn Tractor

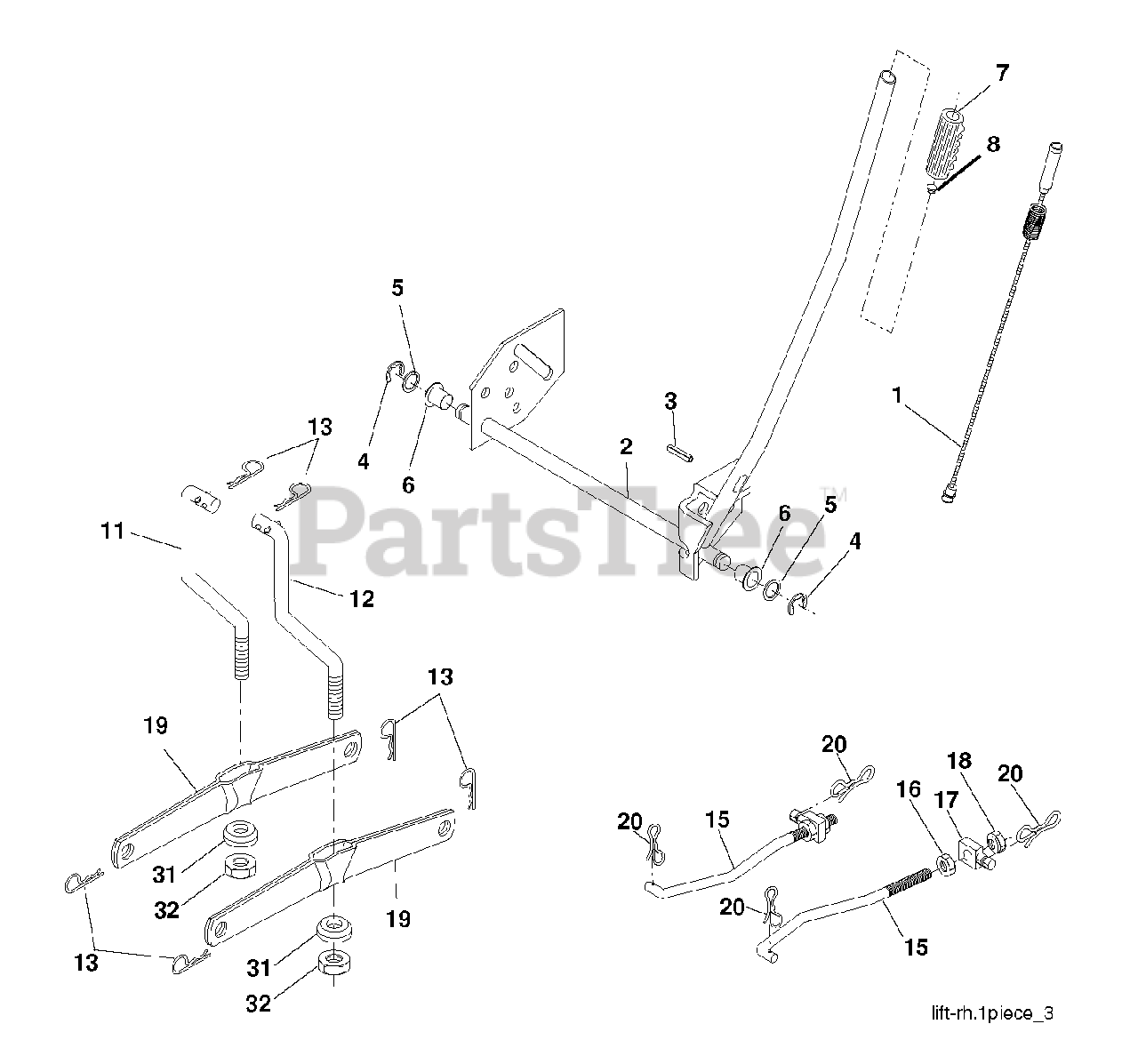

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

1

Electrolux/AYP 532404981

PLUNGER.ASM.LIFT.LVR.BLK.17.32

$

$

Not available

2

Electrolux/AYP 532159471

SHAFT ASM R HANDLE

$54.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532105767

PIN GROOVE

$6.49

$

In Stock, only 3 left!

0

4

Electrolux/AYP 812000002

RETAINING RING LT

$7.49

$

In Stock, only 1 left!

0

5

Electrolux/AYP 819211621

WASHER

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

7

Electrolux/AYP 532125631

GRIP HANDLE

$7.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 532170770

NO LONGER AVAILABLE

$

$

Not available

11

Electrolux/AYP 532165829

LINK
(Superseded to 532165828)

$26.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532165831

LINK
(Superseded to 532165830)

$

$

Not available

13

Electrolux/AYP 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

15

Electrolux/AYP 532173288

LINK.SUSPENSION.FRONT

$13.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 873350800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

17

Electrolux/AYP 532175689

TRUNNION

$

$

Not available

18

Electrolux/AYP 873800800

NUT
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 532139868

ARM.REAR.SUSPENSION

$15.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532194209

PIN.COTTER.7/16.BOW TI

$3.99

$

In Stock, only 1 left!

0

31

Electrolux/AYP 532169865

BEARING.PIVOT.LIFT

$

$

Not available

32

Electrolux/AYP 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0
