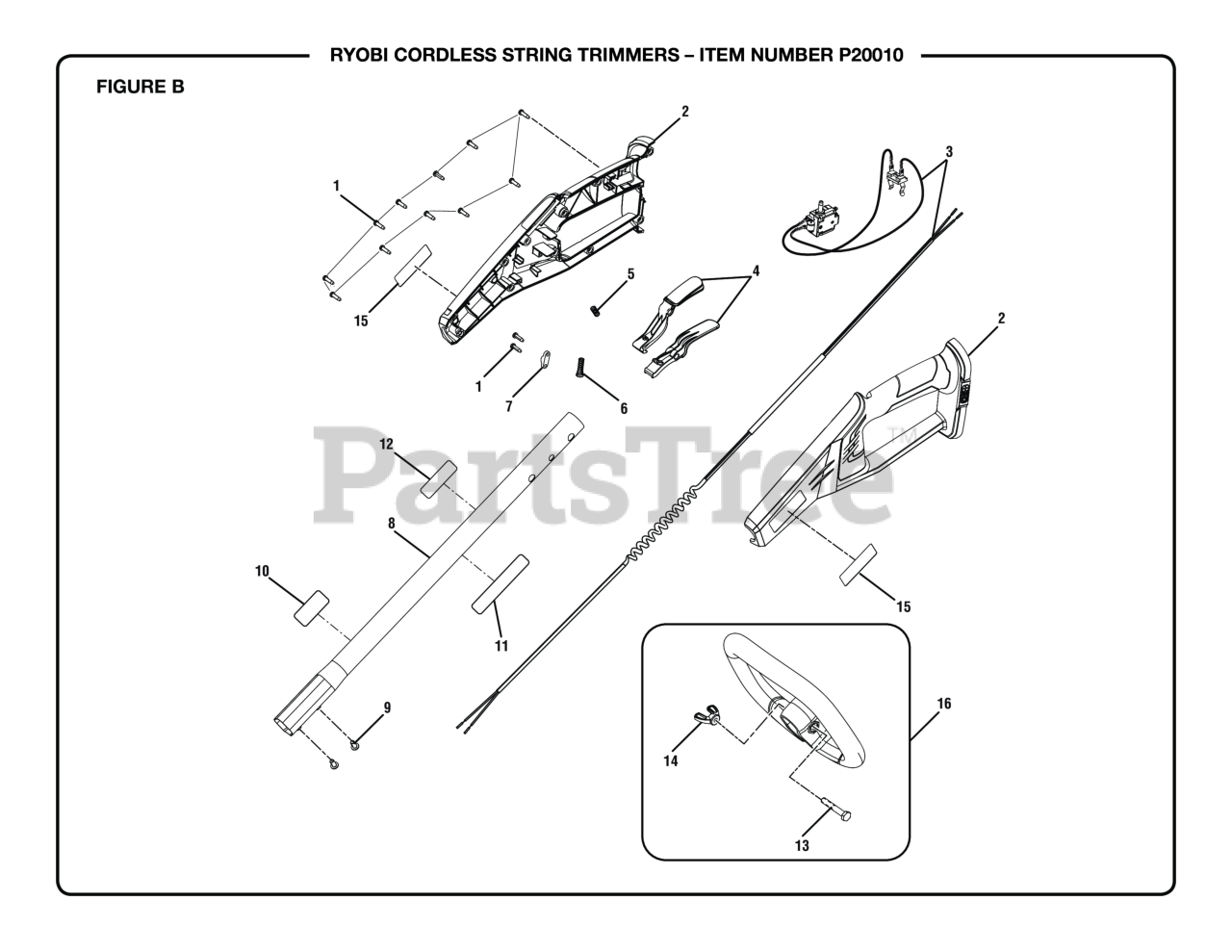

P 20010 (107491001) - Ryobi String Trimmer, Cordless, Rev 06 (2020-04) FIGURE B Parts Diagram

String Trimmer, Cordless, Rev 06

FIGURE B Parts Diagram

  • Title

1

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

2

Homelite 313562001

Handle Housing Assembly w/Label

Note: (Inc. Key No. 15)

$14.99

$

Usually ships in 3-7 days

0

3

Homelite 313290001

Switch, Contact Plate Assembly and Wire Harness

$45.99

$

Usually ships in 3-7 days

0

4

Homelite 351183001

Switch Trigger and Lock-Out Assembly

$5.49

$

In Stock, only 1 left!

0

5

Homelite 679406001

Compression Spring (Trigger Lock)

$1.99

$

In Stock, only 1 left!

0

6

Homelite 679973002

Compression Spring (Trigger)

$1.99

$

In Stock, only 3 left!

0

7

Homelite 523001001

Strain Relief Plate

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 313461001

Upper Tube Assembly

Note: (Inc. Key Nos. 10-12)

$6.99

$

Usually ships in 3-7 days

0

9

Homelite 660502002

Screw w/Lock Washer (M5 x 8 mm, Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

10

Homelite 941588208

Data Label

$

$

Not available

11

Homelite 940657185

Warning Icon Label

$

$

Not available

12

Homelite 940006271

Warning Label (Upper End)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 660643008

Screw (1/4-20 x 40 mm, Cap Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

15

Homelite 940705308

Logo Label (Upper End)

$

$

Not available

16

Homelite 308991003

Auxiliary Handle Assembly

Note: (Inc. Key Nos. 13-14)

$13.99

$

Usually ships in 3-7 days

0
