P 20010 (107491001) - Ryobi String Trimmer, Cordless, Rev 06 (2020-04) FIGURE A Parts Diagram

String Trimmer, Cordless, Rev 06

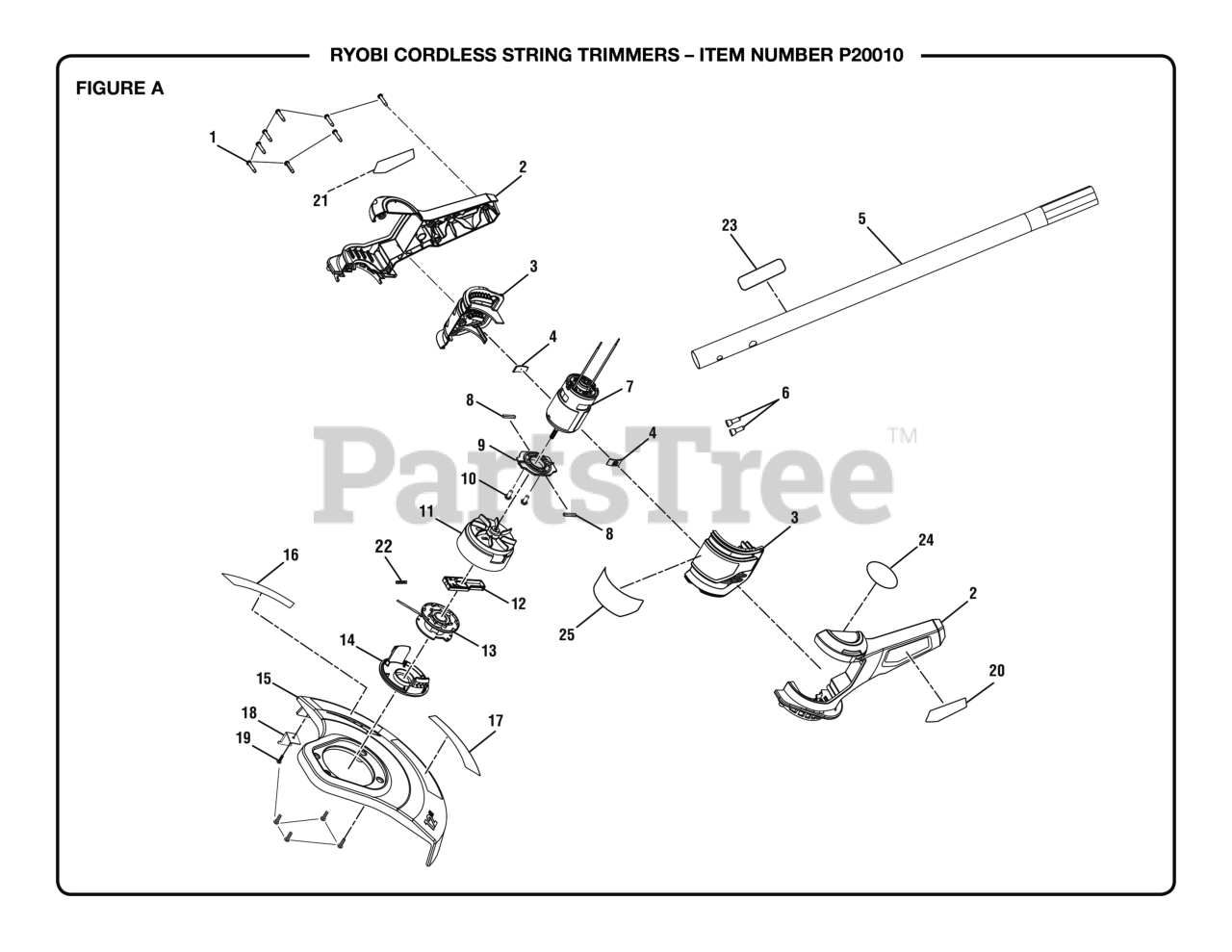

FIGURE A Parts Diagram

  • Title

1

Homelite 661864007

Screw (M4 x 18 mm, T15 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 313563001

Motor Housing Assembly

Note: (Inc. Key Nos. 20-21 and 24)

$7.49

$

Usually ships in 3-7 days

0

3

Homelite 313569001

Lower Housing Assembly

Note: (Inc. Key No. 25)

$4.99

$

Usually ships in 3-7 days

0

4

Homelite 570815001

Rubber Plate (Motor)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 313462001

Lower Tube Assembly

Note: (Inc. Key No. 23)

$6.49

$

Usually ships in 3-7 days

0

6

Homelite 790009004

Wire Connector (Closed End)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 742199001

Motor

$92.99

$

Usually ships in 3-7 days

0

8

Homelite 562079003

Rubber Plate (Motor Plate)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 522926001

Motor Mounting Plate

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 660502002

Screw w/Lock Washer (M5 x 8 mm, Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

11

Homelite 524851002

Spool Base w/Fan

$5.99

$

In Stock, only 2 left!

0

12

Homelite 310920001

Slider Assembly

$6.49

$

In Stock, only 2 left!

0

13

Spool w/Line Assembly

Note: Standard Hardware Item

$

$

Not available

14

Spool Cap

Note: Standard Hardware Item

$

$

Not available

15

Homelite 313564001

Guard Assembly

Note: (Inc. Key Nos. 16-19)

$4.99

$

Usually ships in 3-7 days

0

16

Homelite 941606001

Adjustable Cutting Width Label

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 941528003

Autofeed String Head Label

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 638845006

Line Cut-Off Blade

$1.99

$

In Stock, only 3 left!

0

19

Homelite 660208055

Screw (M4 x 12 mm, Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

20

Homelite 941705023

Left Side Motor Label

$

$

Not available

21

Homelite 941705022

Right Side Motor Label

$

$

Not available

22

Homelite 679034001

Compression Spring (Internal Tooth)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 940020025

Lower Boom Lithium Label

$

$

Not available

24

Homelite 941705021

"R" Badge Label

$

$

Currently unavailable

25

Homelite 941705024

Front Motor Label

$

$

Currently unavailable

Homelite 995000306

Operator's Manual

Note: Not Shown

$

$

Not available
