P 2000 (5902011) - Ferris Hurricane Series Ride-On Blower Motion Control Group Parts Diagram

Hurricane Series Ride-On Blower

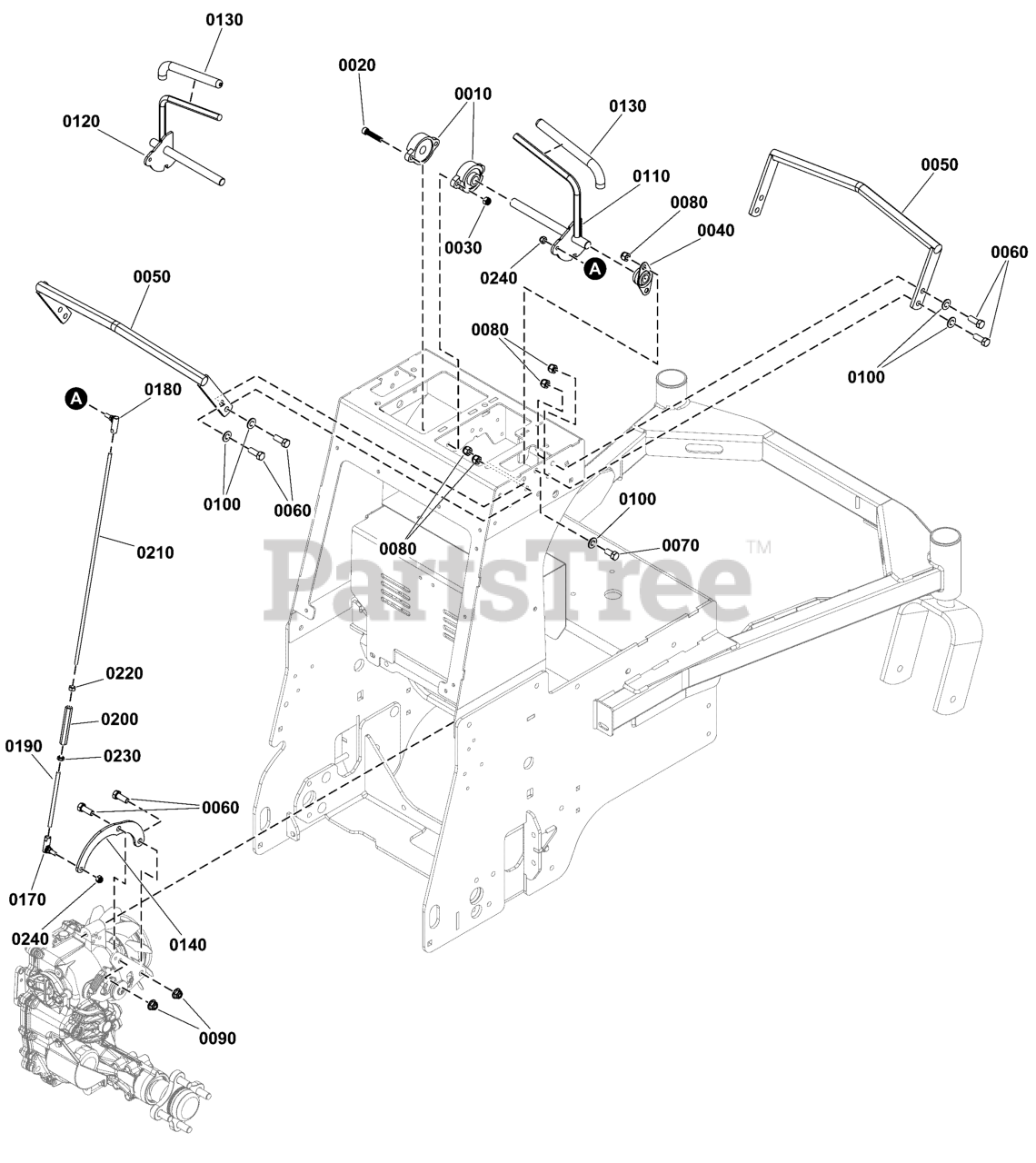

Motion Control Group Parts Diagram

  • Title

0010

Ferris 5022846

BEARING-FLANGE, 5/8
(Superseded to 5022846SM)

$51.99

$

In Stock, Qty 20+

0

0020

Ferris 5025618X12

SCREW, SOC HD, 5/16-18 X 1-1/2, BLK
(Superseded to 5025618X12FS)

$2.49

$

Usually ships in 2-12 days

0

0030

Ferris 5025057

NUT, Hex, Nylon Locking, 5/16-18
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

0040

Ferris 5104885

BEARING, BRONZE, FLANGED, 5/8", FLB10
(Superseded to 5104885FS)

$14.99

$

In Stock, only 2 left!

0

0050

Ferris 5414243AA

WELD, REAR HANDLE, SRSZ1 - BLK
(Superseded to 5414243AAFS)

$42.99

$

In Stock, only 2 left!

0

0060

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

0070

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

0080

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

0090

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0100

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0110

Ferris 5420574AA

WELD, CONTROL HANDLE, RH, FB1000 - BLK
(Superseded to 5420574AAFS)

$51.99

$

Usually ships in 2-12 days

0

0120

Ferris 5420575AA

WELD, CONTROL HANDLE, LH, FB1000 - BLK
(Superseded to 5420575AAFS)

$51.99

$

Usually ships in 2-12 days

0

0130

Ferris 5100619

GRIP, FOAM, .475 X 7.75 X .095
(Superseded to 5100619FS)

$5.99

$

Usually ships in 2-12 days

0

0140

Ferris 5421889AA

ARM, TRANSMISSION CONTROL, FB1000 - BLK
(Superseded to 5421889AAFS)

$6.99

$

Usually ships in 2-12 days

0

0170

Ferris 5106802

BALL JOINT, 1/4"-28 THREAD LH
(Superseded to 5106802FS)

$7.99

$

Usually ships in 2-12 days

0

0180

Ferris 5106803

BALL JOINT, 1/4-28 RH STUD.
(Superseded to 5106803FS)

$7.49

$

Usually ships in 2-12 days

0

0190

Ferris 5107303

ROD 1/4-28 X 4-1/2" YZ
(Superseded to 5107303FS)

$13.99

$

Usually ships in 2-12 days

0

0200

Ferris 5106971

TURNBUCKLE, 1/4-28 X 3
(Superseded to 5106971FS)

$9.49

$

Usually ships in 2-12 days

0

0210

Ferris 5107239

ROD, LINKAGE, 1/4-28X17.5
(Superseded to 5107239FS)

$44.99

$

Usually ships in 2-12 days

0

0220

Ferris 5106858

NUT, 1/4-28, LH, YZ
(Superseded to 5106858FS)

$2.49

$

Usually ships in 2-12 days

0

0230

Ferris 7090095

HN, 1/4F GR5 YZ
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

0240

Ferris 5106892

NUT, 1/4-28, NYLOCK, CZ
(Superseded to 5106892FS)

$2.49

$

Usually ships in 2-12 days

0
