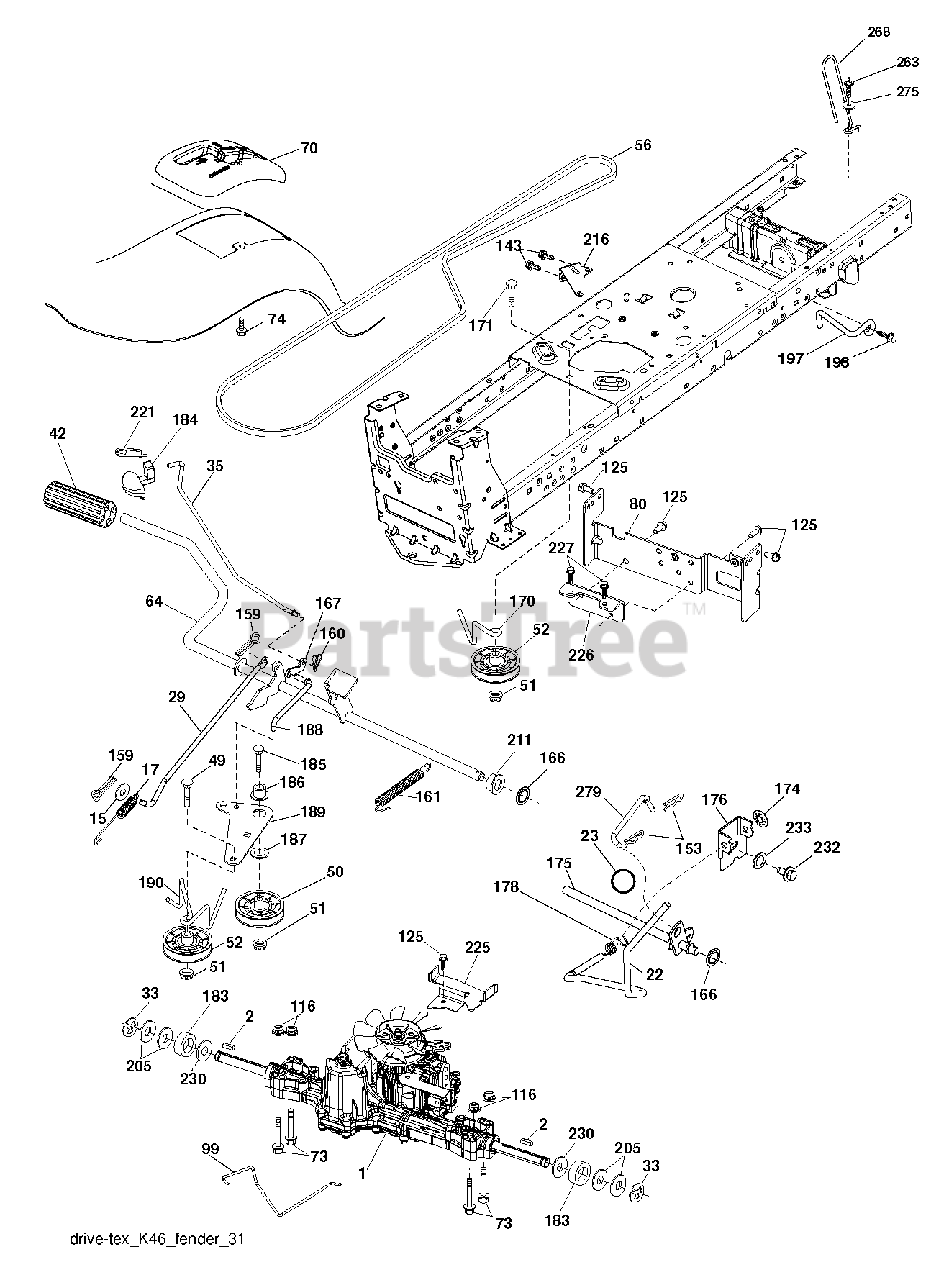

P 185117 H (960410125-03) - Husqvarna Lawn Tractor (2011-08) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 000000000

NO LONGER AVAILABLE

Note: Transaxle TUFF TORQ K46 BA (408214)

$

$

Not available

2

Electrolux/AYP 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

15

Electrolux/AYP 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

17

Electrolux/AYP 532413678

SPRING.BRAKE.K46.GREEN

$7.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 532197660

ROD.SHIFT.FENDER.TLT.2006

$182.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532411400

DASH.STEALTH.UPR.E.GT.SRV

$78.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532403806

ROD.BRAKE.K46

$31.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532401031

ROD, BRAKE, PARK

$18.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

51

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Electrolux/AYP 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 532130969

V-BELT

$30.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 532196200

SHAFT.ASM.PEDAL.BRAKE.

$56.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 532411329

CONSOLE.SHIFT.STL.HYD.BLACK

$17.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 874490540

BOLT

$4.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 532440619

STRAP.TORQUE.K46.K57R.TT

$24.99

$

Usually ships in 3-10 days

0

99

Electrolux/AYP 532415742

ROD.SPRING.BYPASS.K46.LT.Z

$10.99

$

In Stock, only 2 left!

0

116

Electrolux/AYP 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

125

Electrolux/AYP 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

143

Electrolux/AYP 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

153

Electrolux/AYP 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

159

Electrolux/AYP 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Electrolux/AYP 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Electrolux/AYP 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Electrolux/AYP 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

170

Electrolux/AYP 532194322

KEEPER.V-IDLER.CENTER.

$7.49

$

In Stock, only 1 left!

0

171

Electrolux/AYP 872110616

BOLT
(Superseded to 596136301)

$3.99

$

Usually ships in 3-10 days

0

174

Electrolux/AYP 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

175

Electrolux/AYP 532406208

SHAFT ASM SHIFT

$26.99

$

Usually ships in 3-10 days

0

176

Electrolux/AYP 532196214

ARM.CLEVIS.ROD.SHIFT

$7.99

$

Usually ships in 3-10 days

0

178

Electrolux/AYP 532197456

SPRING.SHIFT.GT2006

$6.49

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

184

Electrolux/AYP 532441407

HANDLE.PARKING.BRK.PRED.LT.RED
(Superseded to 532199996)

$66.99

$

Usually ships in 3-10 days

0

185

Electrolux/AYP 872110622

BOLT

$4.99

$

In Stock, Qty 10

0

186

Electrolux/AYP 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

187

Electrolux/AYP 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

188

Electrolux/AYP 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Electrolux/AYP 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$7.99

$

In Stock, Qty 5

0

190

Electrolux/AYP 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 2 left!

0

196

Electrolux/AYP 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

197

Electrolux/AYP 532195804

LINK.CLUTCH.ANIT-ROTAT

$8.99

$

In Stock, only 4 left!

0

205

Electrolux/AYP 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

211

Electrolux/AYP 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.99

$

Usually ships in 3-10 days

0

216

Electrolux/AYP 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.99

$

In Stock, only 1 left!

0

221

Electrolux/AYP 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 2 left!

0

225

Electrolux/AYP 532403319

KEEPER.BELT.TRANSAXLE.K46

$6.99

$

In Stock, only 2 left!

0

226

Electrolux/AYP 532401564

BRACKET.MOUNT.TORQUE.K46.TLT

$18.99

$

Usually ships in 3-10 days

0

227

Electrolux/AYP 817490512

SCREW
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

230

Electrolux/AYP 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

232

Electrolux/AYP 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

233

Electrolux/AYP 532405296

WASHER SERRATED

$6.49

$

Usually ships in 3-10 days

0

263

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

268

Electrolux/AYP 532182402

NO LONGER AVAILABLE
(Superseded to 583122001)

$7.49

$

Usually ships in 3-10 days

0

275

Electrolux/AYP 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

279

Electrolux/AYP 532406207

LINK SHIFT

$15.99

$

Usually ships in 3-10 days

0
