P 185117 H (960410125-02) - Electrolux/AYP Lawn Tractor (2010-09) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

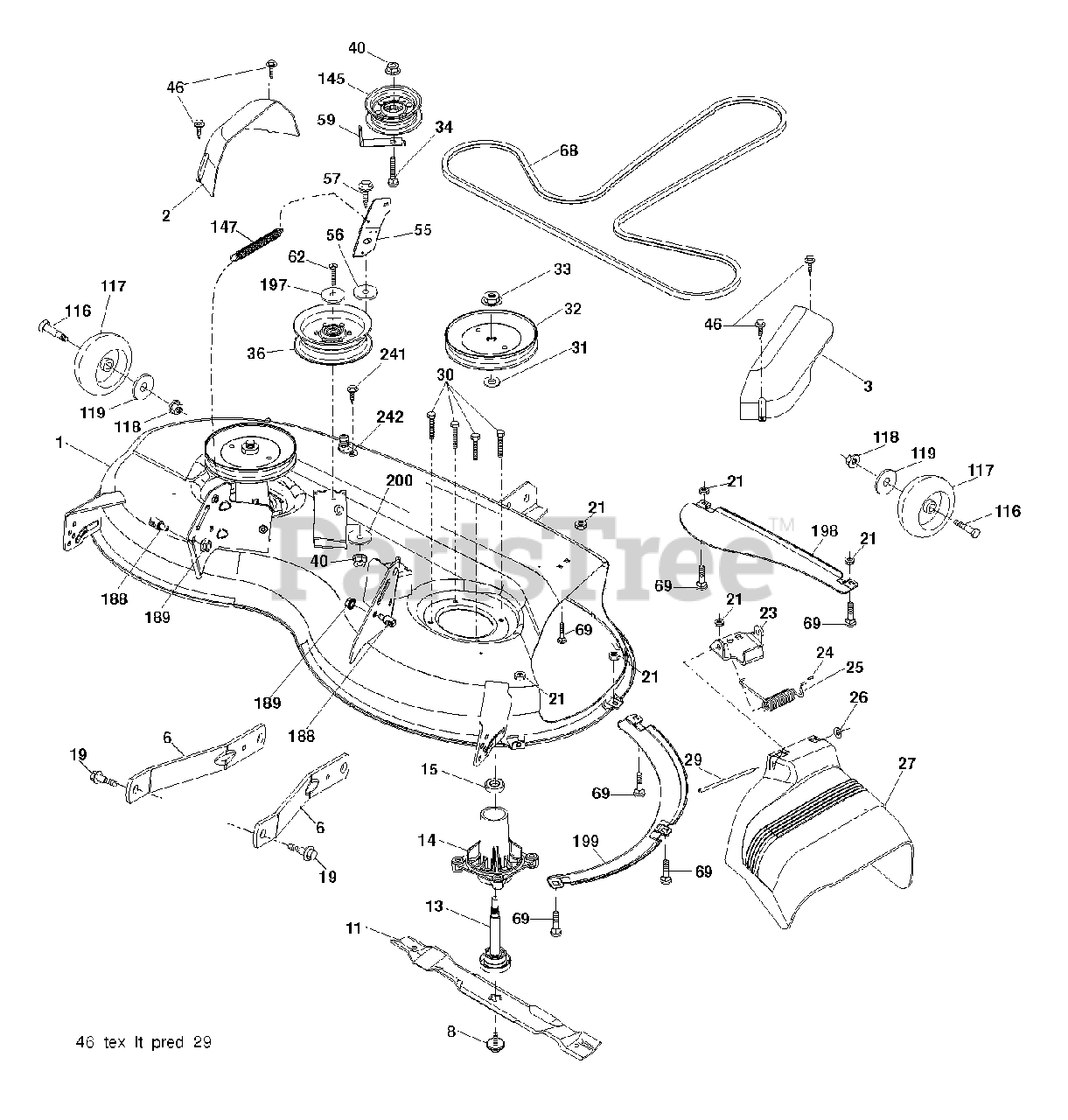

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Electrolux/AYP 532405050

DECK.WELDMENT.46"
(Superseded to 532409782)

$460.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532405507

COVER.MANDREL.LH.46"

$47.99

$

In Stock, only 4 left!

0

3

Electrolux/AYP 532405506

COVER MANDREL RH

$47.99

$

In Stock, Qty 7

0

6

Electrolux/AYP 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532405380

BLADE 46" HI LIFT

$18.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 532187281

HOUSING MANDREL
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 532110485

BEARING

$13.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

21

Electrolux/AYP 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 20+

0

24

Electrolux/AYP 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 532405357

SHIELD.DEFLECTOR.MOWER.46"BLAC

$74.99

$

In Stock, Qty 7

0

29

Electrolux/AYP 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$14.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

46

Electrolux/AYP 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

55

Electrolux/AYP 532197249

IDLER.ARM

$

$

Not available

56

Electrolux/AYP 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 20+

0

57

Electrolux/AYP 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

59

Electrolux/AYP 532141043

GUARD, BELT

$

$

Not available

62

Electrolux/AYP 874520636

BOLT-HEX EAK
(Superseded to 596564404)

$3.99

$

In Stock, Qty 20+

0

68

Electrolux/AYP 532405143

V BELT
(Superseded to 584453101)

$56.99

$

In Stock, Qty 20+

0

69

Electrolux/AYP 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

116

Electrolux/AYP 532124842

Shield Bolt, A 2.41 B 1.66
(Superseded to 596434402)

$4.99

$

In Stock, Qty 20+

0

117

Electrolux/AYP 532188606

WHEEL.GAGE.HALF.SPOKED
(Superseded to 589527401)

$11.99

$

In Stock, Qty 20+

0

118

Electrolux/AYP 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 20+

0

147

Electrolux/AYP 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$11.99

$

In Stock, Qty 19

0

188

Electrolux/AYP 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Electrolux/AYP 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

197

Electrolux/AYP 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 16

0

198

Electrolux/AYP 532403149

BAFFLE CENTER FRONT

$11.99

$

In Stock, Qty 20+

0

199

Electrolux/AYP 532403150

BAFFLE FRONT RH

$

$

Not available

200

Electrolux/AYP 532413524

WASHER.13/32 X 1 X 1/2.11GUARD
(Superseded to 596135501)

$5.99

$

In Stock, Qty 20+

0

241

Electrolux/AYP 532152927

SCREW

$7.49

$

In Stock, Qty 20+

0

242

Electrolux/AYP 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

--

Electrolux/AYP 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: (Includes housing shaft assembly and bearing only- pulley /nut /washer and blade bolt /washers not included)

$56.99

$

In Stock, Qty 20+

0

--

Electrolux/AYP 532433035

NO LONGER AVAILABLE

$

$

Not available
