P 1738EX (1695677) - Snapper 38" Snow Thrower, 16.5hp Wheel & Tire Group Parts Diagram

38" Snow Thrower, 16.5hp

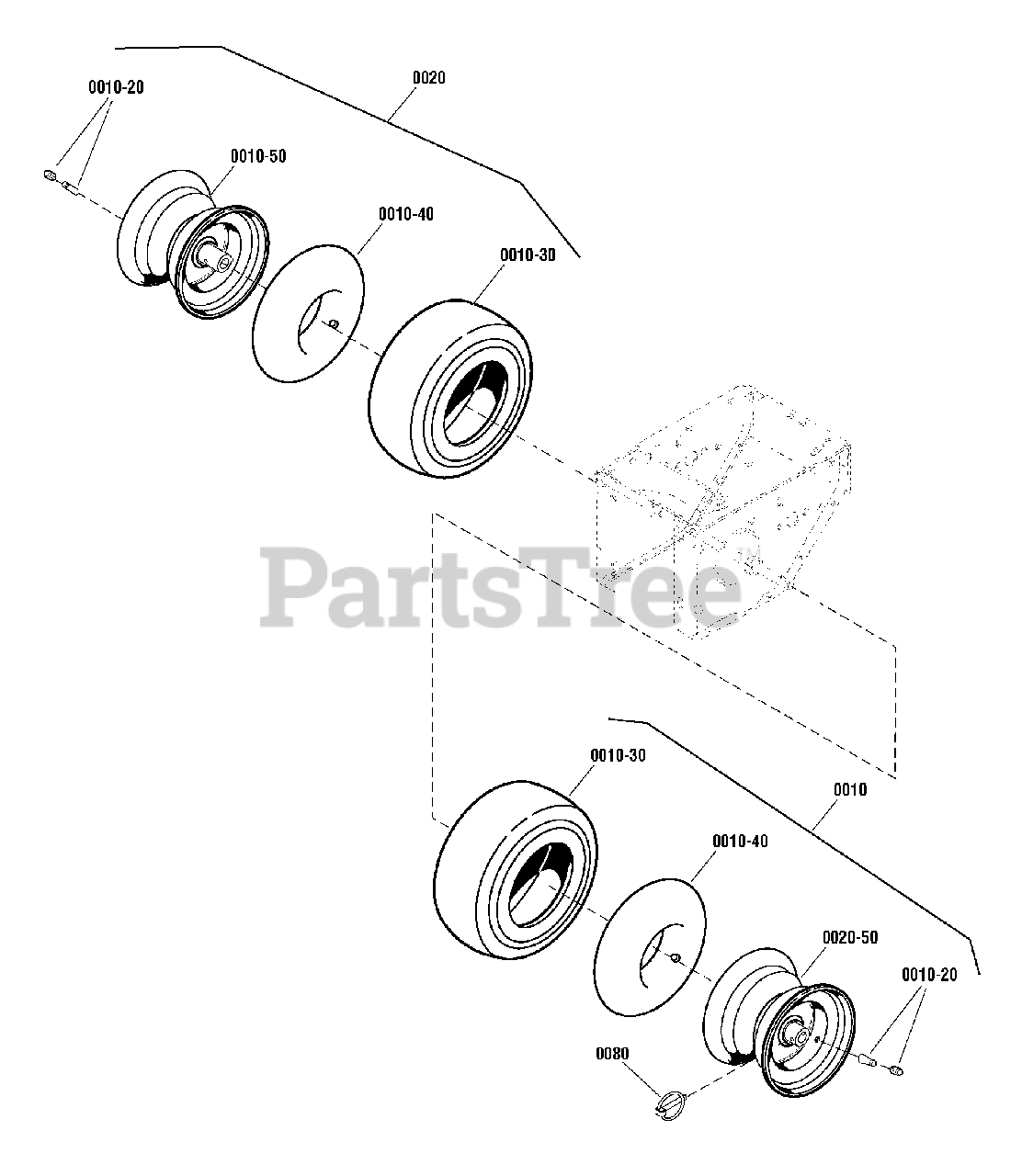

Wheel & Tire Group Parts Diagram

  • Title

0010

Snapper 1726744

WHEEL & TIRE ASSEMBLY, 16 x 6-1/2 - 8, K478, L.H.
(Superseded to 1726744SM)

Note: (Inc. 0010-20, 0010-30, 0010-40 & 0010-50)

$186.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

0010-30

Snapper 1727075

TIRE, 16 x 6-1/2 - 8, X-Trac XL
(Superseded to 1751301YP)

Note: (L.H. & R.H.)

$101.99

$

Usually ships in 2-12 days

0

0010-40

Snapper 164247

TUBE, Tire, 16 x 6-1/2 - 8
(Superseded to 2164247SM)

Note: (L.H. & R.H.)

$40.99

$

Usually ships in 2-12 days

0

0010-50

RIM, Tire, 16 X 6-1/2 - 8, L.H.

Note: (Not a servicable part. Order complete assembly)

$

$

Not available

0020

Snapper 1726745

WHEEL & TIRE ASSEMBLY, 16 x 6-1/2 - 8, K478, R.H.
(Superseded to 1726745SM)

Note: (Inc. 0010-20, 0010-30, 0010-40 & 0020-50)

$173.99

$

Usually ships in 2-12 days

0

0020-50

RIM, Tire, 16 X 6-1/2 - 8, R.H.

Note: (Not a servicable part. Order complete assembly)

$

$

Not available

0080

Snapper 1731186

PIN, Klik
(Superseded to 703160)

$5.49

$

In Stock, Qty 7

0
