P 1738E (1695684) - Snapper 38" Snow Thrower, 16.5hp Auger Drive Group - Heavy Duty Parts Diagram

38" Snow Thrower, 16.5hp

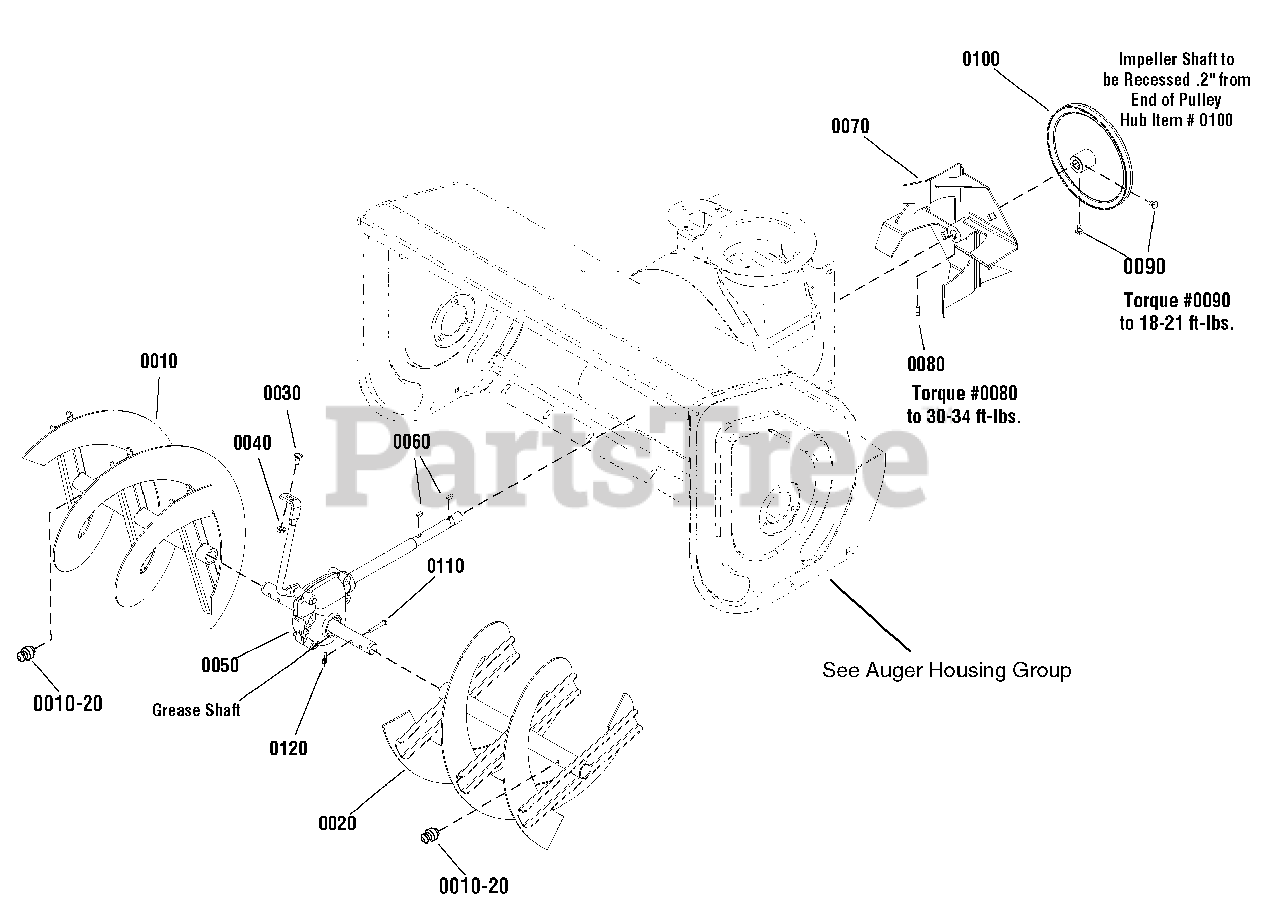

Auger Drive Group - Heavy Duty Parts Diagram

  • Title

0010

Snapper 1734678BM

AUGER ASSEMBLY, 32", R.H.
(Superseded to 1734678ASM)

$186.99

$

Usually ships in 2-12 days

0

0010

Snapper 1734680BM

AUGER ASSEMBLY, 38", R.H.
(Superseded to 1734680BMYP)

$219.99

$

Usually ships in 2-12 days

0

0020

Snapper 1734677BM

AUGER ASSEMBLY, 32", L.H.
(Superseded to 1734677ASM)

$253.99

$

Usually ships in 2-12 days

0

0020

Snapper 1734679BM

AUGER ASSEMBLY, 38", L.H.
(Superseded to 1734679BMYP)

$207.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 2821133

FITTING, Zerk
(Superseded to 703907)

Note: (R.H. & L.H. - All Augers)

$4.99

$

In Stock, Qty 20+

0

0030

Snapper 1931333

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0040

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Snapper 1732303

GEAR CASE ASSEMBLY, Heavy Duty
(Superseded to 1732303SM)

$512.99

$

Usually ships in 2-12 days

0

0060

Snapper 2818312

KEY, Woodruff
(Superseded to 703891)

$4.99

$

In Stock, Qty 18

0

0070

Snapper 1612187BM

IMPELLER
(Superseded to 1612187BMYP)

$201.99

$

In Stock, only 1 left!

0

0080

Snapper 1960474

SCREW, Set, 3/8-16 x 1/2, G8
(Superseded to 1960474SM)

$5.99

$

In Stock, Qty 5

0

0090

Snapper 1928721

SCREW, Set, 5/16-18 x 1/2, G8
(Superseded to 1928721SM)

$4.99

$

In Stock, only 2 left!

0

0100

Snapper 1732468

PULLEY, 9 OD, 3/4 ID
(Superseded to 1732468SM)

$146.99

$

Usually ships in 2-12 days

0

0110

Snapper 1668344

PIN, Shear, 1-3/4
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0120

Snapper 7023590

PIN, Cotter
(Superseded to 7023590SM)

$3.99

$

In Stock, Qty 20+

0
