P 1738 E (1695827) - Simplicity 38" Snow Thrower, 16.5hp Handles & Controls Group Parts Diagram

38" Snow Thrower, 16.5hp

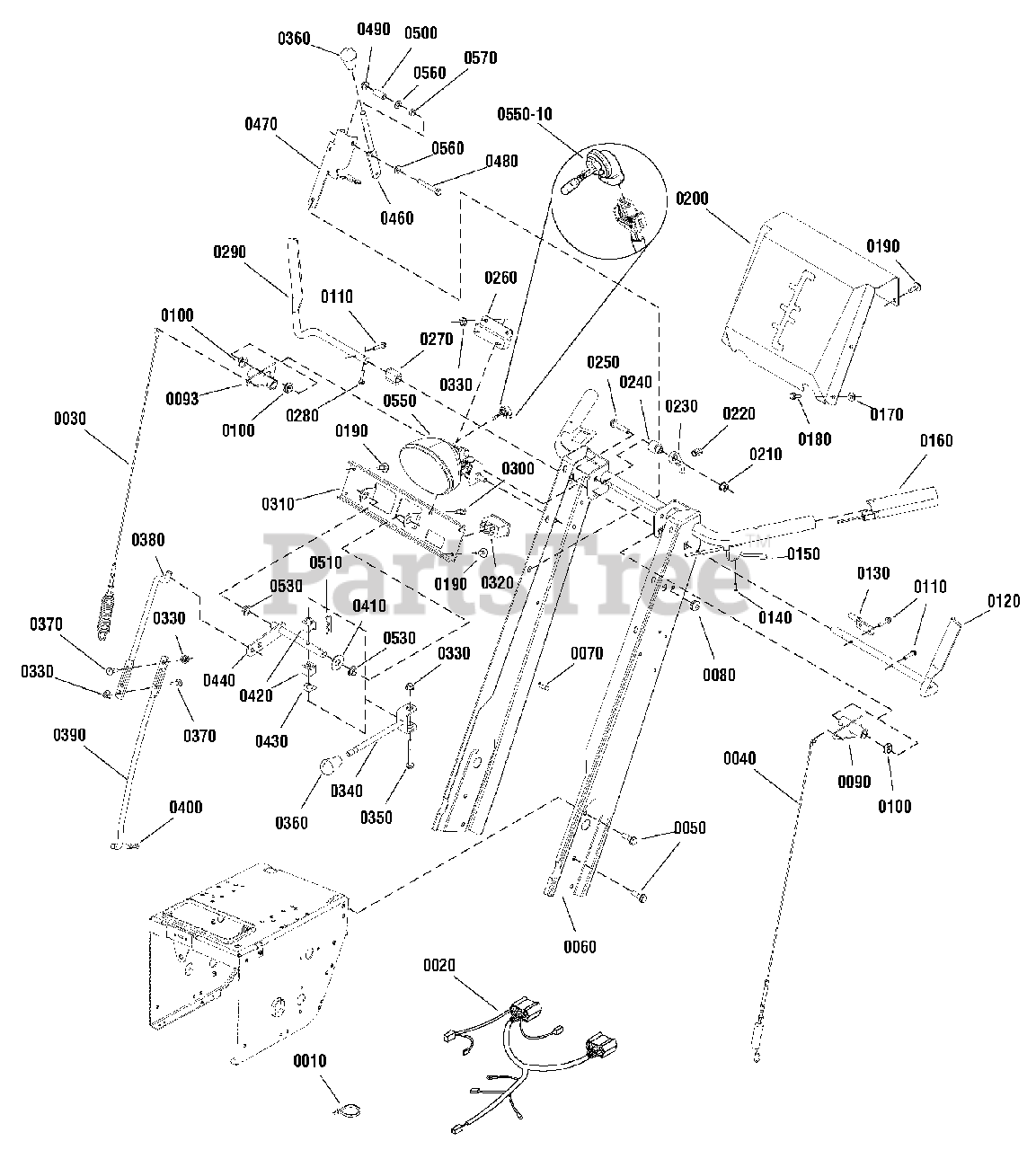

Handles & Controls Group Parts Diagram

  • Title

0010

Simplicity 1701011

TIE, Self Lock
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0020

Simplicity 1728968

HARNESS, Wiring
(Superseded to 1728968SM)

$104.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1735148

CABLE & SPRING ASSEMBLY, Auger, R.H.
(Superseded to 1735148SM)

$23.99

$

In Stock, only 1 left!

0

0040

Simplicity 1728115

CABLE & SPRING ASSEMBLY, Traction, L.H.
(Superseded to 1728115SM)

$17.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1664847SM

CAPSCREW, Hex Flange, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0060

Simplicity 1733890C

HANDLE ASSEMBLY
(Superseded to 1687739YP)

$234.99

$

Usually ships in 2-12 days

0

0070

Simplicity 2834683

CLIP, Wire
(Superseded to 703176)

$3.49

$

Usually ships in 2-12 days

0

0080

Simplicity 1664022

GROMMET
(Superseded to 1664022SM)

$4.49

$

Usually ships in 2-12 days

0

0090

Simplicity 1725205A

LEVER, Clutch, L.H
(Superseded to 1725205ASM)

$33.99

$

Usually ships in 2-12 days

0

0093

Simplicity 1735133A

LEVER, Clutch, R.H.
(Superseded to 1735133ASM)

$43.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1732732

BUSHING
(Superseded to 1732732SM)

$3.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1960471

CAPSCREW, Hex Washer Head, Taptite, #12-24 x 1
(Superseded to 1960471SM)

$3.49

$

In Stock, only 1 left!

0

0120

Simplicity 1727127

HANDLE, Clutch, L.H.
(Superseded to 1727127SM)

$45.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1677453

ROD, Control, 2-7/8
(Superseded to 1677453SM)

$8.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1725702

SCREW, Pan Head Torx, #10 x 1/2
(Superseded to 1725702SM)

$5.49

$

Usually ships in 2-12 days

0

0150

Simplicity 1718791

CABLE & HANDLE ASSEMBLY
(Superseded to 1718791SM)

$70.99

$

In Stock, only 3 left!

0

0160

Simplicity 1723965

GRIP, Hand, Heated
(Superseded to 1723965SM)

$86.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1930641

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0180

Simplicity 1935450

CAPSCREW, Hex Flange Head, 1/4-20 x 3/4
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

0190

Simplicity 1925592

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

0200

Simplicity 1734387C

DASH, Handle
(Superseded to 1734387CSM)

$69.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1960686

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0220

Simplicity 1701342

SPRING, Compression
(Superseded to 1750475YP)

$4.49

$

Usually ships in 2-12 days

0

0230

Simplicity 1705898

LATCH, Control
(Superseded to 703214)

$9.49

$

Usually ships in 2-12 days

0

0240

Simplicity 1678579

SPACER
(Superseded to 703049)

$6.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1933689

CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 1-1/2
(Superseded to 1933689SM)

$4.49

$

Usually ships in 2-12 days

0

0260

Simplicity 1724037

RESISTOR BLOCK
(Superseded to 1724037SM)

$39.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1705899

GUIDE, Control
(Superseded to 703213)

$8.49

$

In Stock, only 2 left!

0

0280

Simplicity 1928732

SCREW, Hex Washer Head, Taptite, #10-24 x 1
(Superseded to 703162)

$3.99

$

In Stock, only 1 left!

0

0290

Simplicity 1727128

HANDLE, Clutch, R.H.
(Superseded to 1727128SM)

$40.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1923341

CAPSCREW, Hex Flange Head, 1/4-20 x 3/4
(Superseded to 1923341SM)

$4.49

$

In Stock, Qty 8

0

0310

Simplicity 1723935

BRACKET, Shift Control
(Superseded to 1723935BMYP)

$15.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1723967

SWITCH, Hand Warmer
(Superseded to 1723967SM)

$38.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1960685

NUT, Hex Keps, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

0340

Simplicity 1668523

ROD & CLEVIS ASSEMBLY
(Superseded to 703053)

$38.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1960705

CAPSCREW, Hex Flange, Whiz Lock, 1/4-20 x 2-1/4
(Superseded to 1960705SM)

$2.99

$

Usually ships in 2-12 days

0

0360

Simplicity 1732470

KNOB
(Superseded to 1732470SM)

$19.99

$

In Stock, Qty 6

0

0370

Snapper 1931317

BOLT, Carriage, 1/4-20 x 3/4

$3.99

$

In Stock, only 3 left!

0

0380

Simplicity 1734388

ROD, Shift, Upper, 10-1/2
(Superseded to 1734388SM)

$45.99

$

Usually ships in 2-12 days

0

0390

Simplicity 1666255

ROD, Shift, 15-5/16
(Superseded to 1666255SM)

$51.99

$

In Stock, only 4 left!

0

0400

Simplicity 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0410

Simplicity 1924361

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

0420

Simplicity 1668524

BLOCK, Pivot
(Superseded to 703050)

$13.99

$

Usually ships in 2-12 days

0

0430

Simplicity 1668681

WASHER, Curved
(Superseded to 703051)

$6.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1734696

PIVOT ASSEMBLY
(Superseded to 703052)

$39.99

$

Usually ships in 2-12 days

0

0460

Simplicity 1735290

ROD, Chute, Deflector
(Superseded to 1735290SM)

$14.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1734385A

BRACKET, Deflector Handle
(Superseded to 1734385ASM)

$40.99

$

Usually ships in 2-12 days

0

0480

Simplicity 1921963

CAPSCREW, Hex Flange Head, 1/4-20 x 2
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

0490

Simplicity 1960694

NUT, Hex Flange, ESNA, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0500

Simplicity 1734709

SPRING, Compression
(Superseded to 1734709SM)

$15.99

$

Usually ships in 2-12 days

0

0510

Simplicity 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0530

Simplicity 1668185

BUSHING, 1/2 ID x 3/4 OD x 1/4
(Superseded to 1668185SM)

$5.49

$

In Stock, only 1 left!

0

0550

Simplicity 1737965

HEADLIGHT ASSEMBLY
(Superseded to 1687723YP)

$

$

Not available

0550-10

* BULB, Headlight, Halogen, 881-12V 27W

Note: (Included with Ref. No. 0550)

$

$

Not available

0560

Simplicity 1921319

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0570

Simplicity 1666697

SPACER, 5/16 ID x 1/2 OD x 1/4
(Superseded to 1666697SM)

$6.49

$

In Stock, only 2 left!

0
