P 1732EX (1695738) - Snapper 32" Snow Thrower, 17hp Chute & Rotation Group Parts Diagram

32" Snow Thrower, 17hp

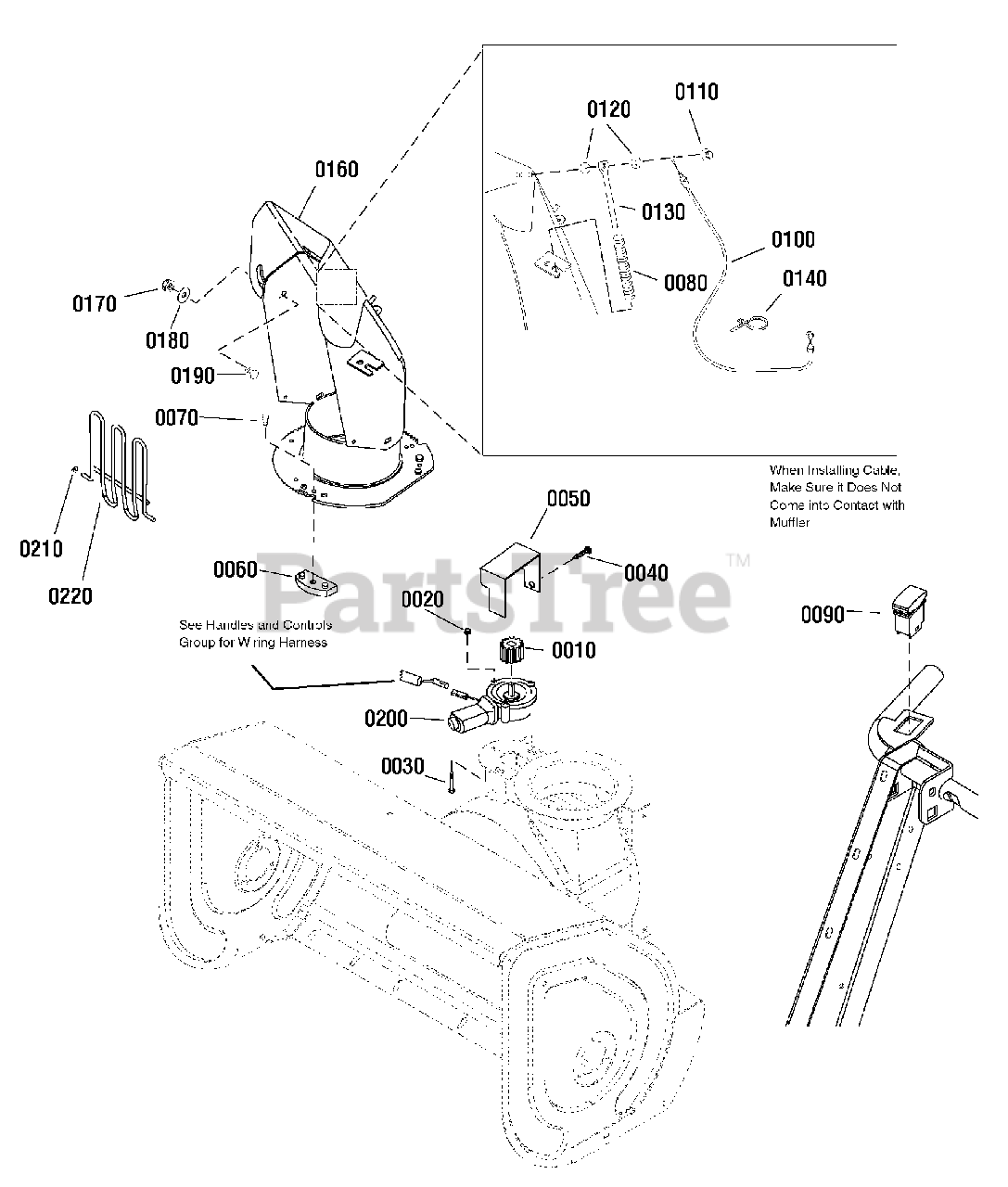

Chute & Rotation Group Parts Diagram

  • Title

0010

Snapper 1728967

PINION, 1-1/4 Lg
(Superseded to 1728967SM)

$17.99

$

In Stock, Qty 5

0

0020

Snapper 1960745

NUT, Whiz-Lock, #10-24
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

0030

Snapper 2860604

CAPSCREW, Hex Washer, #10 x 1-1/4
(Superseded to 2860604SM)

$4.49

$

In Stock, only 2 left!

0

0040

Snapper 1927428

CAPSCREW, Hex Washer, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

0050

Snapper 1733934A

COVER, Gear
(Superseded to 1733934ASM)

$

$

Not available

0060

Snapper 1666613

HOLD DOWN, Chute
(Superseded to 1666613SM)

$3.49

$

In Stock, Qty 20+

0

0070

Snapper 1960001

CAPSCREW, Hex Washer, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 11

0

0080

Snapper 1734647

SPRING, Compression, 9/16 OD x 6-1/16 Lg
(Superseded to 1734647SM)

$3.99

$

Usually ships in 2-12 days

0

0090

Snapper 1728969

SWITCH, Rocker, Chute Rotation, 5-Pin
(Superseded to 1728969SM)

$54.99

$

In Stock, only 2 left!

0

0100

Snapper 1732971

CABLE, Deflector Control
(Superseded to 1750623YP)

$49.99

$

In Stock, only 3 left!

0

0110

Snapper 1932718

PUSHNUT, 5/16 Dia., 5/8 OD
(Superseded to 704028)

$5.49

$

In Stock, only 4 left!

0

0120

Snapper 1666697

SPACER, 1/2 OD x 7/32 Lg
(Superseded to 1666697SM)

$6.49

$

In Stock, only 2 left!

0

0130

Snapper 1734708A

ROD, 5/16 Dia., 5.88 Lg
(Superseded to 1734708ASM)

$13.99

$

Usually ships in 2-12 days

0

0140

Snapper 2825094

TIE, Self-Locking, 7-5/16 Lg
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0160

Snapper 1734400D

CHUTE ASSEMBLY, 32"

$

$

Not available

0160

Snapper 1736419D

CHUTE ASSEMBLY, 38"

$

$

Currently unavailable

0170

Snapper 1960686

NUT, Hex-Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0180

Snapper 2860210

WASHER, Nylon, 3/8
(Superseded to 2860210SM)

$4.49

$

In Stock, only 3 left!

0

0190

Snapper 1931333

BOLT, Carriage, 5/16-18 x 0 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0200

Snapper 1728965

MOTOR, Spout Rotator, 38"
(Superseded to 1728965SM)

$176.99

$

In Stock, Qty 17

0

0210

Snapper 1960126

PUSHNUT, 1/4 Dia.
(Superseded to 704066)

Note: (CE/Export)

$4.99

$

In Stock, Qty 14

0

0220

Snapper 1735174

GUARD & SUPPORT ASSEMBLY
(Superseded to 1735174SM)

Note: (32" C/E Export Only)

$58.99

$

Usually ships in 2-12 days

0

0220

Snapper 1704446

GUARD & SUPPORT ASSEMBLY
(Superseded to 1704446SM)

Note: (38" C/E Export Only)

$22.99

$

Usually ships in 2-12 days

0
