P 1728 E (1696521-01) - Simplicity Professional 28" Snow Thrower, 16.5hp Auger Housing Group Parts Diagram

Professional 28" Snow Thrower, 16.5hp

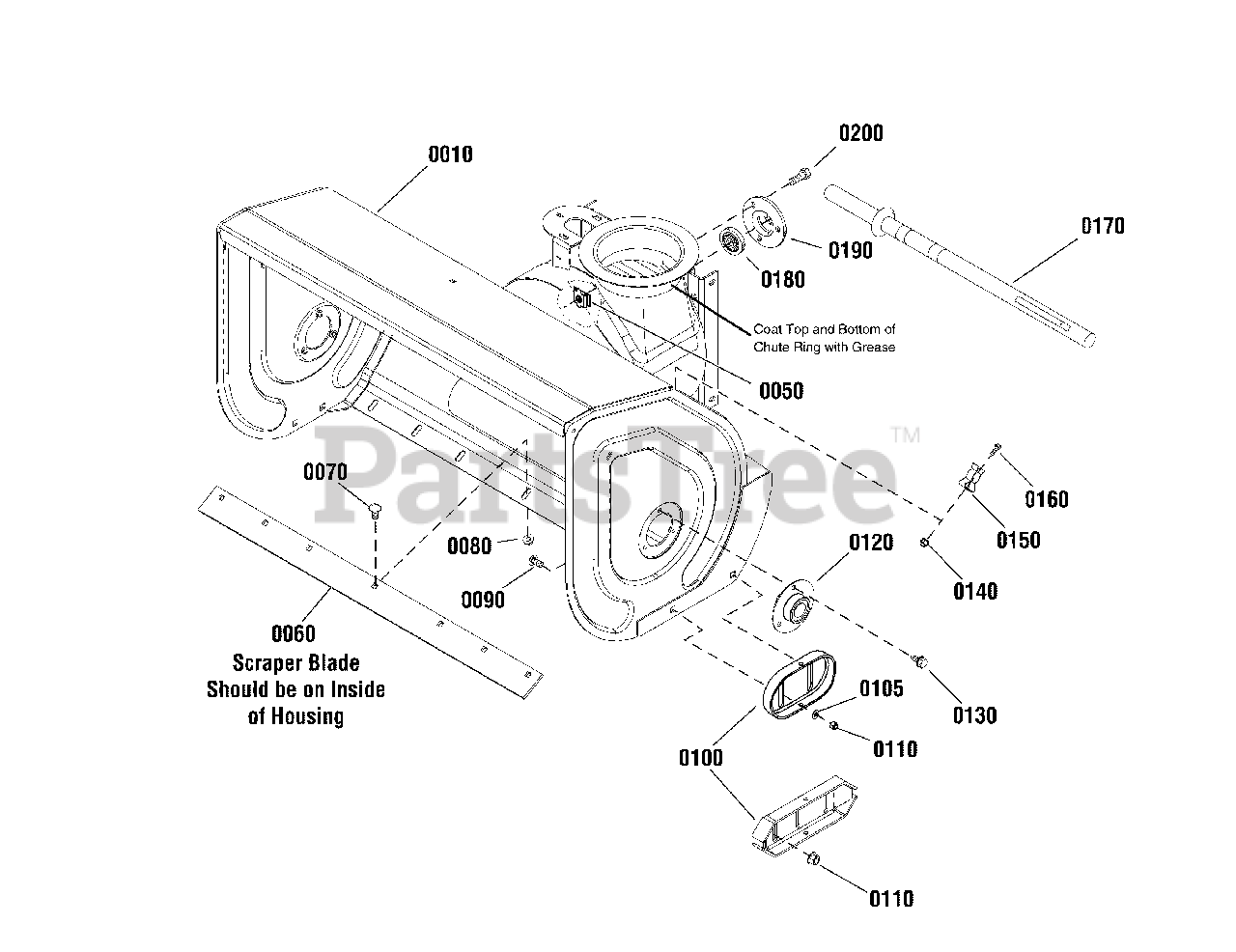

Auger Housing Group Parts Diagram

  • Title

0010

Simplicity 1687706YP

AUGER HOUSING ASSEMBLY, 24"

$475.99

$

Usually ships in 2-12 days

0

0010

Simplicity 1687688YP

AUGER HOUSING ASSEMBLY, 28"

$577.99

$

Usually ships in 2-12 days

0

0010

Simplicity 1687707YP

AUGER HOUSING ASSEMBLY, 32"

$695.99

$

Usually ships in 2-12 days

0

0010

Simplicity 1687708YP

AUGER HOUSING ASSEMBLY, 38"

$740.99

$

Usually ships in 2-12 days

0

0050

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0060

Simplicity 1709946ASM

BLADE, Scraper, 24"

$39.99

$

In Stock, Qty 7

0

0060

Simplicity 1709947ASM

BLADE, Scraper, 28"
(Superseded to 1709947BMYP)

$45.99

$

In Stock, Qty 19

0

0060

Simplicity 1709948ASM

BLADE, Scraper, 32"
(Superseded to 1709948BMYP)

$58.99

$

In Stock, only 3 left!

0

0060

Simplicity 1723921ASM

BLADE, Scraper, 38"
(Superseded to 1723921BMYP)

$65.99

$

Usually ships in 2-12 days

0

0070

Simplicity 703225

BOLT, Carriage, 5/16-18 x 3/4, G5

Note: (Use Qty. 7 on 32" & Qty. 9 on 38" Models)

$3.99

$

In Stock, Qty 20+

0

0070

Simplicity 703159

BOLT, Carriage, 5/16-18 x 5/8

Note: (Use on 24" & 28" Models)

$3.99

$

In Stock, Qty 19

0

0080

Simplicity 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0090

Simplicity 703130

BOLT, Carriage, 3/8-16 x 1-1/4, G5

Note: (24" and 28" Housings Only)

$3.99

$

In Stock, Qty 13

0

0090

Simplicity 1960702SM

BOLT, Carriage, 3/8-16 x 1, G5
(Superseded to 703814)

Note: (32" and 38" Housings Only)

$4.49

$

In Stock, only 4 left!

0

0100

Simplicity 1750222YP

SHOE, Skid, Reversible

$37.99

$

In Stock, only 3 left!

0

0100

Simplicity 1725747BMYP

SHOE, Skid, Steel

$92.99

$

In Stock, Qty 5

0

0105

Simplicity 703590

WASHER, Flat

Note: (Used on reversible skid shoe.)

$3.99

$

In Stock, Qty 10

0

0110

Simplicity 703117

NUT, Nylock, 3/8-16, GR5

Note: (Used on reversible skid shoe.)

$3.49

$

In Stock, Qty 20+

0

0110

Simplicity 1960687SM

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

Note: (Used on steel skid shoe.)

$3.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1734645SM

BEARING, Ball
(Superseded to 772167)

$51.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 15X146MA

NUT, Nylock, 10 x 24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0150

Simplicity 1736620YP

CLAMP, Retainer

$6.49

$

In Stock, only 3 left!

0

0160

Simplicity 1960569SM

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0170

Simplicity 1736094YP

BRUSH, Cleanout

$34.99

$

In Stock, Qty 7

0

0180

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

0190

Simplicity 1665982SM

RETAINER, Ball Bearing

$6.99

$

In Stock, Qty 20+

0

0200

Simplicity 1960738SM

CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0
