P 160 RWD (967645601-00) - Poulan Walk-Behind Mower (2016-09) MOWER DECK / CUTTING DECK Parts Diagram

Walk-Behind Mower

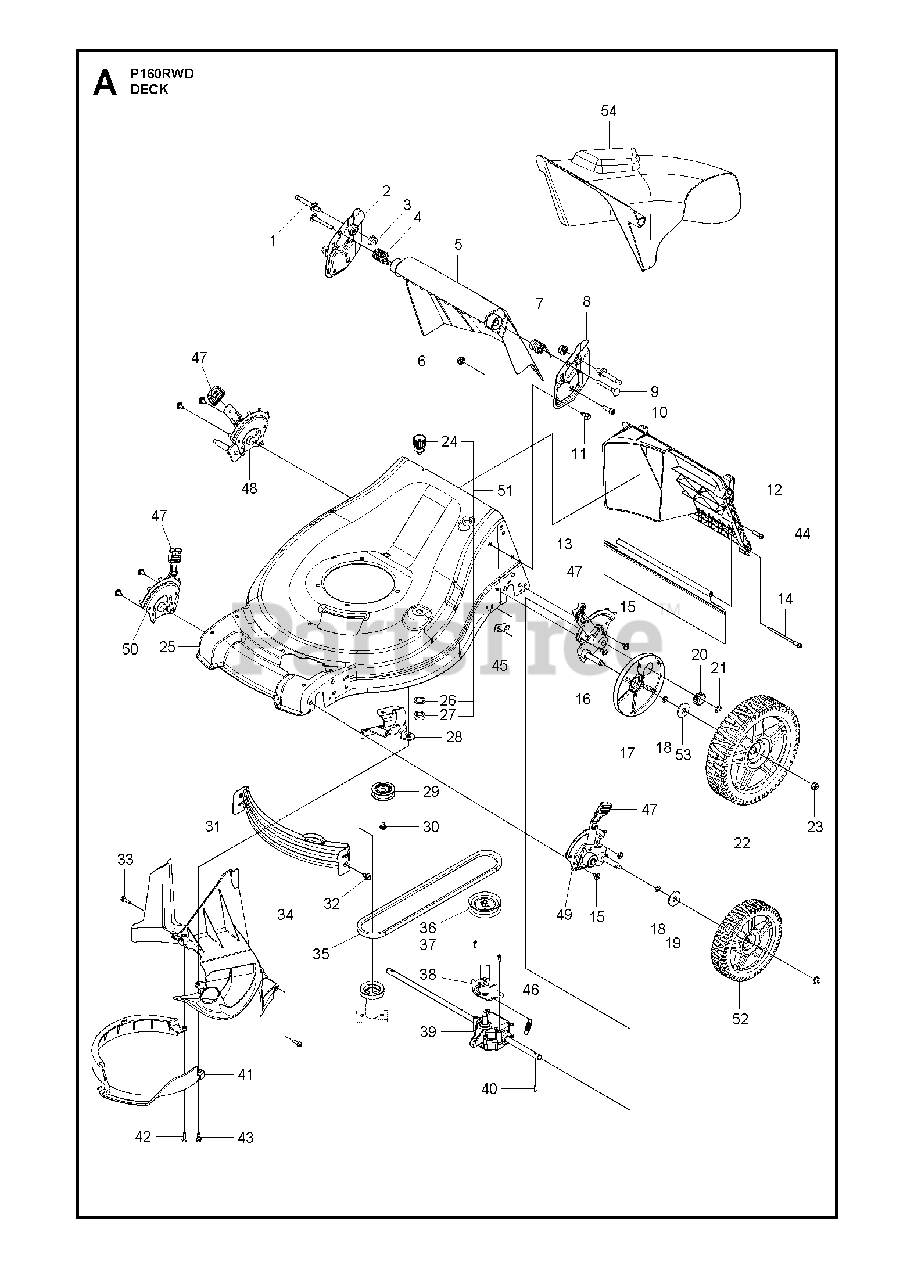

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Poulan 587015201

Hand Pivot Bolt, 3125-18.21Eff

Note: Handle Pivot 5 /16-18

$12.99

$

Usually ships in 3-10 days

0

2

Poulan 589197803

BRACKET.HANDLE.ADJ.21EFF.RH479

Note: Adjustable Handle Right

$

$

Not available

3

Poulan 587599901

Flange Nut, Serrat.3125-18.5625

Note: Serrated Flange 5 /16-18

$4.99

$

In Stock, Qty 12

0

4

Poulan 587250601

SPRING.RH.DOOR.21 EFF

Note: Right Door

$3.49

$

Usually ships in 3-10 days

0

5

Poulan 586138002

DOOR.REAR.21 EFF.BLACK

Note: Rear

$39.99

$

Usually ships in 3-10 days

0

6

Poulan 532413284

Flange Nut, 3/8-16 Zinc

Note: Flanged 3 /8-16

$3.49

$

Usually ships in 3-10 days

0

7

Poulan 587249801

SPRING.LH.DOOR.21 EFF

Note: Left Door

$3.49

$

Usually ships in 3-10 days

0

8

Poulan 589197603

BRACKET.HANDLE.ADJ.21EFF.LH479

Note: Adjustable Handle Left

$

$

Not available

9

Poulan 587198901

Pivot Door Bolt, .375-16 21Eff

Note: Pivot 3 /8-16

$3.49

$

In Stock, only 2 left!

0

10

Poulan 587281101

Screw, Hi-Lo,5/16-14 X T-45

Note: Hi-Lo 5 /16-14 X T-45

$3.49

$

In Stock, only 2 left!

0

11

Poulan 817000510

BOLT.5/16HEX.WHS.HD

Note: Hex 5 /16

$7.49

$

In Stock, Qty 12

0

12

Poulan 586137501

Insert, Rear 21 Eff

Note: Rear

$26.99

$

Usually ships in 3-10 days

0

13

Poulan 586698801

Skirt, Rear 21" Eff

Note: Rear

$13.99

$

In Stock, only 1 left!

0

14

Poulan 587438201

Screw, Hi-Lo.5/16-14 X 4.10

Note: Hi-Lo 5 /16-14 X 4 10

$4.99

$

In Stock, Qty 6

0

15

Poulan 581127601

SCREW

Note: 1 /4-20 Tri-lobe

$7.99

$

In Stock, Qty 11

0

16

Poulan 582261802

ADJUSTER.4PT.21EFF.LR

Note: 4-Point Left Rear

$24.99

$

In Stock, only 1 left!

0

17

Poulan 589529001

Dust Cover, AW/RW HW CONS

Note: Wheel

$

$

Not available

18

Poulan 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

In Stock, only 1 left!

0

19

Poulan 532067725

WASHER FLUT

Note: 1 /2 X 1-1 /2 X 134

$7.49

$

In Stock, Qty 20+

0

20

Poulan 587232401

Pinion 16 Teeth Hw Awd Rear

Note: 16 Tooth RWD

$4.99

$

In Stock, Qty 12

0

21

Poulan 812000058

E-RING 7/16 RE

Note: 7 /16 RE-Style

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 582692802

WHEEL.11X2.R3.5SP.AW/RW.BU.460

Note: 11 X 2

$44.99

$

Usually ships in 3-10 days

0

23

Poulan 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

Note: Hex Flange 3 /8-16

$4.99

$

In Stock, Qty 20+

0

24

Poulan 532419735

FITTING, HOSE, WATER WASHOUT
(Superseded to 532421114)

Note: Blue. 51

$24.99

$

In Stock, only 2 left!

0

25

Poulan 588610218

KIT.HSG.21EFF.RGD.NC.WO.613.SY

Note: 21 AWD

$

$

Not available

26

Poulan 532415585

WASHER.LOCK.INTERNAL.TOOTH

Note: Star. 51

$4.99

$

In Stock, only 2 left!

0

27

Poulan 532415586

LOCKNUT.HEX.WITH.O-RING

Note: Hex. 51

$6.49

$

In Stock, only 4 left!

0

28

Poulan 588062202

BRACKET.IDLER.RWD.BZP

Note: Idler AWD

$

$

Not available

29

Poulan 587969201

Idler Pulley, RWD Double Seal

Note: Pulley Idler

$14.99

$

In Stock, Qty 20+

0

30

Poulan 581127601

SCREW

Note: 1 /4-20 Tri-lobe

$7.99

$

In Stock, Qty 11

0

31

Poulan 586698601

Front Baffle, 21" Eff

Note: Front

$

$

Not available

32

Poulan 817000510

BOLT.5/16HEX.WHS.HD

Note: Hex 5 /16

$7.49

$

In Stock, Qty 12

0

33

Poulan 587599801

Screw, Hi-Lo.13-16 X .750.375 X drv
(Superseded to 532194189)

Note: Hi-Lo 13-16 X 750

$7.49

$

In Stock, Qty 20+

0

34

Poulan 586560401

Baffle Cover, 21 Eff

Note: Belt /Rear Baffle

$20.99

$

In Stock, Qty 20+

0

35

Poulan 580364608

Belt, 21EFF RWD

Note: Drive AWD

$11.99

$

In Stock, Qty 20+

0

36

Poulan 586903001

SCREW M3X8 MACHINE SCREW

Note: AWD

$3.49

$

Usually ships in 3-10 days

0

37

Poulan 532163409

SCREW

Note: 12 X 5 /8 Hi /Lo Thread

$7.49

$

In Stock, Qty 6

0

38

Poulan 589318302

Trans Belt Keeper Bracket

Note: Rear Transmission

$

$

Not available

39

Poulan 586137601

Transmission, Awd Rear 21Eff

Note: AWD Rear

$148.99

$

Usually ships in 3-10 days

0

40

Poulan 532404845

PAWL, DRIVE

Note: Drive

$5.99

$

In Stock, Qty 5

0

41

Poulan 587081001

Stripper Ring, 21 Eff

Note: Stripper

$7.49

$

Usually ships in 3-10 days

0

42

Poulan 587599801

Screw, Hi-Lo.13-16 X .750.375 X drv
(Superseded to 532194189)

Note: Hi-Lo 13-16 X 750

$7.49

$

In Stock, Qty 20+

0

43

Poulan 581726101

Shoulder Bolt, 1/4-20 Trilob

Note: Shoulder 1 /4-20 Tri-lobe

$4.99

$

In Stock, Qty 20+

0

44

Poulan 587281101

Screw, Hi-Lo,5/16-14 X T-45

Note: Hi-Lo 5 /16

$3.49

$

In Stock, only 2 left!

0

45

Poulan 587147301

STRAP.PLATE ATTACH.21 EFF.GLV

Note: Height adjuster bracket

$

$

Not available

46

Poulan 581351301

SPRING.RETURN.AUTO.

Note: Rear Transmission

$10.99

$

In Stock, Qty 7

0

47

Poulan 532701037

SELECTOR KNOB

Note: Ergonomic

$5.99

$

In Stock, only 4 left!

0

48

Poulan 582261801

ADJUSTER.4PT.21EFF.RR

Note: Right Rear

$24.99

$

In Stock, only 1 left!

0

49

Poulan 586920113

Adjuster, 4Pt 21Eff Lf/Rr Bu Bk

Note: Left Front

$

$

Not available

50

Poulan 586920115

Adjuster, 4Pt 21Eff Rf/Lr Bu Bk

Note: Right Front

$20.99

$

Usually ships in 3-10 days

0

51

Poulan 532421114

KIT.WASH-OUT.PORT

Note: Kit Wash-out Port. 24 26 27

$24.99

$

In Stock, only 2 left!

0

52

Poulan 581009409

WHEEL.8X1.75.CF5SPK.RAD3.GRAY

Note: 8 X 1 75

$26.99

$

In Stock, only 2 left!

0

53

Poulan 532088348

WASHER PM

Note: Flat

$7.49

$

In Stock, Qty 5

0

54

Poulan 582261901

Discharge Chute, 21" EFF HW

$20.99

$

Usually ships in 3-10 days

0
