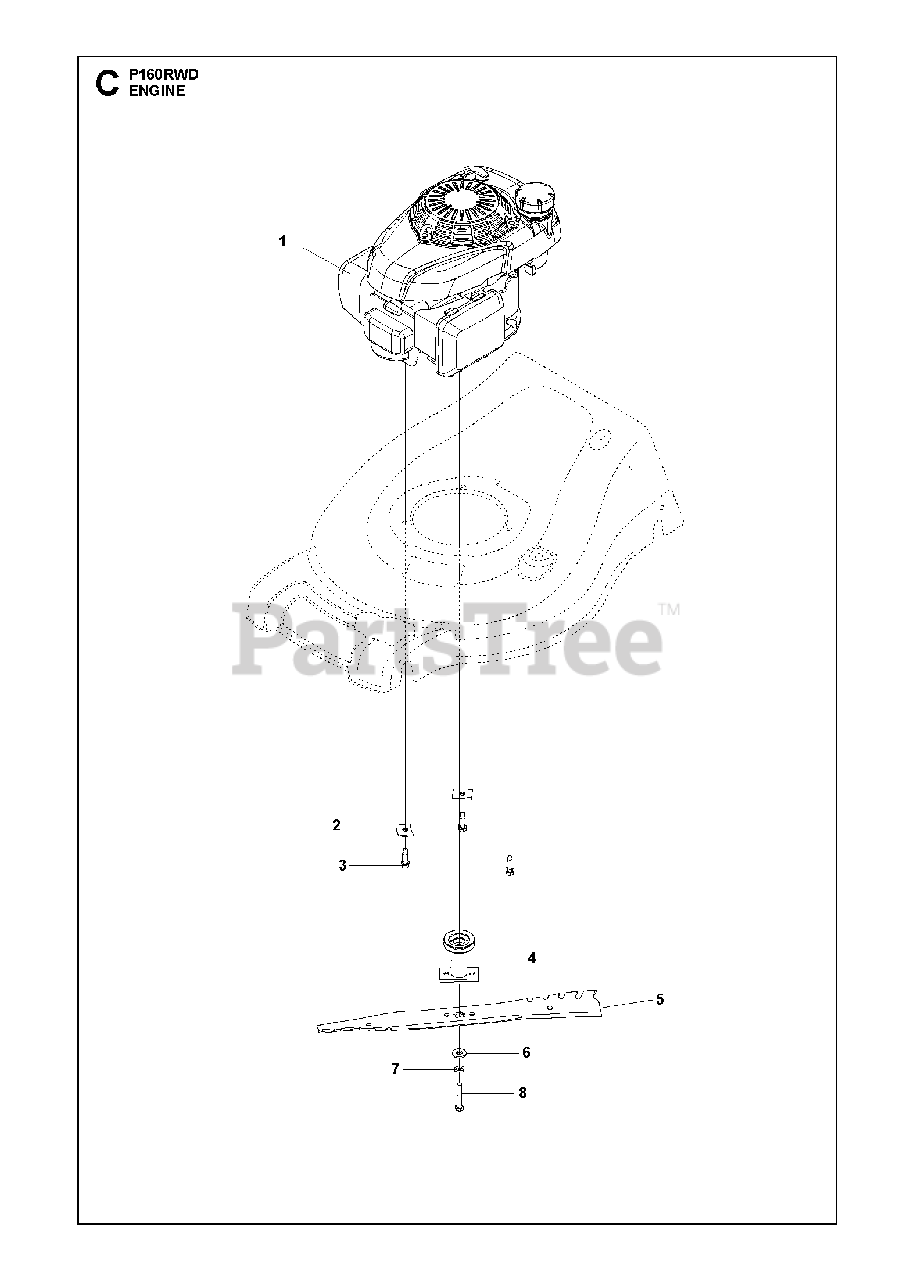

P 160 RWD (967645601-00) - Poulan Walk-Behind Mower (2016-09) ENGINE Parts Diagram

Walk-Behind Mower

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: Honda GCV160-LAOS3B For Engine service and replacement parts call Honda at 1-800-426-7701

$

$

Not available

2

Poulan 532125078

WASHER.ENGINE.BZP

Note: Engine

$5.99

$

Usually ships in 3-10 days

0

3

Poulan 532150406

BOLT 3/8-16X1-1/8

Note: 3 /8 16

$7.49

$

Usually ships in 3-10 days

0

4

Poulan 582890101

ADAPTER.BLADE.25M.21EFF.AW/RW

Note: 25 mm

$

$

Not available

5

Poulan 586859602

Mower Blade, 21" Reaper without Notches
(Superseded to 586859604)

Note: High Lift

$17.99

$

In Stock, Qty 20+

0

6

Poulan 532851074

WASHER,HARDEN

Note: Blade

$4.99

$

In Stock, only 3 left!

0

7

Poulan 532850263

(Superseded to 810040600)

Note: 3 /8 Helical Spring

$1.99

$

Usually ships in 3-10 days

0

8

Poulan 582388401

Engine Pulley Bolt

Note: Hex Head Machine Screw

$5.99

$

Usually ships in 3-10 days

0

--

Poulan 115861327

Note: Manual Operators English

$

$

Currently unavailable

--

Poulan 115861331

Note: Manual Operators French

$

$

Currently unavailable

--

Poulan 115861346

Note: Manual Operators Spanish

$

$

Currently unavailable

--

Poulan 582785540

Note: Manual IPL

$

$

Currently unavailable
