P 1524 E (1696239-01) - Simplicity Professional 24" Snow Thrower, 14.5hp Engine & Frame Group - 14.5TP & 16.5TP Parts Diagram

Professional 24" Snow Thrower, 14.5hp

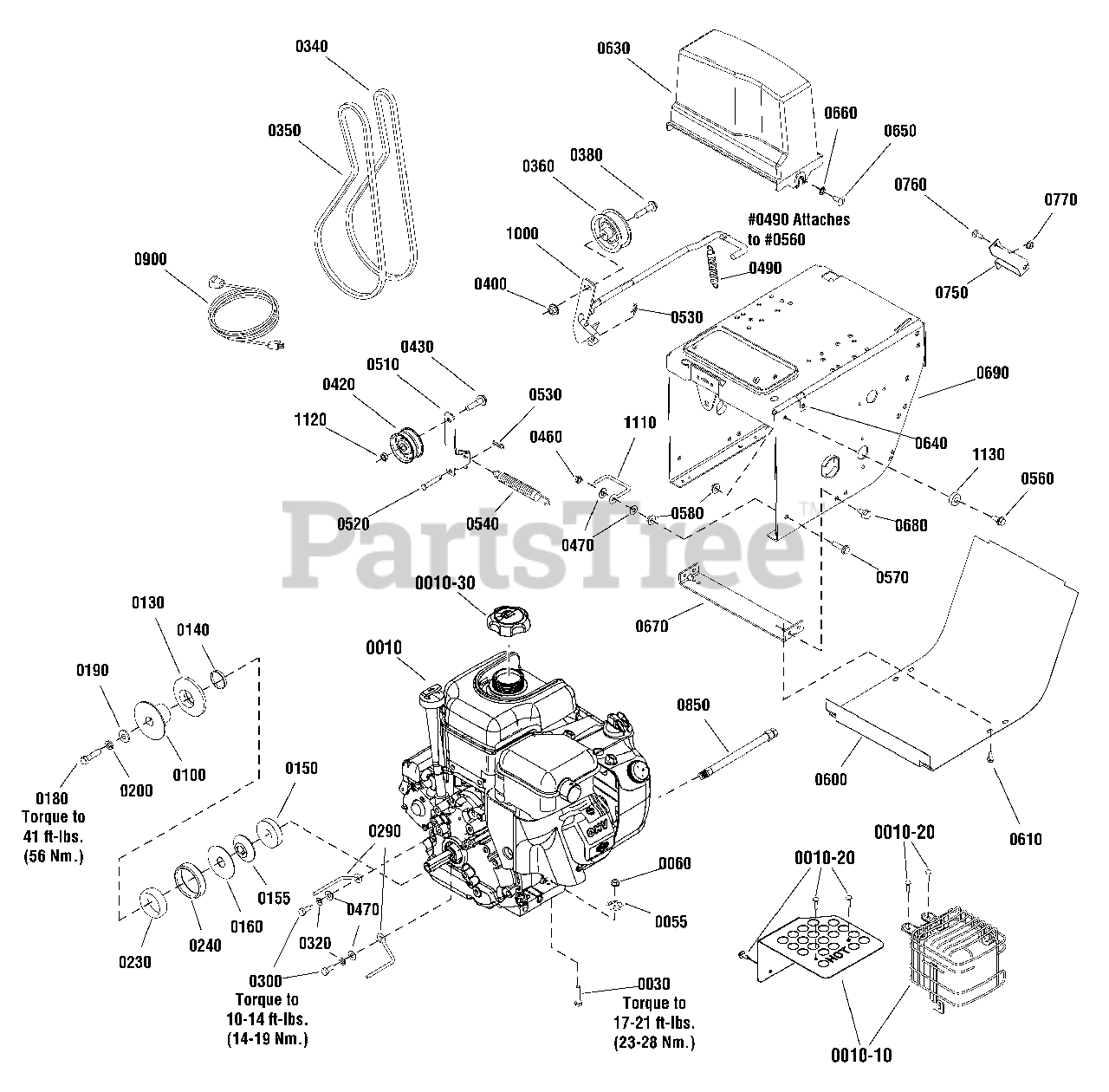

Engine & Frame Group - 14.5TP & 16.5TP Parts Diagram

  • Title

0010

Simplicity 20M314-0135-F1

* ENGINE, 14.5TP Briggs & Stratton

Note: (Engine Model: 20M314-0135-F1)

$

$

Not available

0010

Simplicity 21M314-0127-F1

* ENGINE, 16.5TP Briggs & Stratton, Domestic

Note: (Engine Model: 21M314-0127-F1)

$

$

Not available

0010

Simplicity 21M314-0129-H1

* ENGINE, 16.5TP Briggs & Stratton, Export

Note: (Engine Model: 21M314-0129-H1)

$

$

Not available

0010-10

Simplicity 797095

* GUARD, Muffler, Plate

Note: (Domestic Models Only)

$45.99

$

Usually ships in 2-12 days

0

0010-10

Simplicity 796384

* GUARD, Muffler, Wire

Note: (Export Models Only)

$83.99

$

Usually ships in 2-12 days

0

0010-20

Simplicity 699234

* SCREW, Muffler Guard

$3.99

$

In Stock, only 2 left!

0

0010-30

Simplicity 792647

* CAP, Fuel
(Superseded to 795027)

Note: (Domestic Models Only)

$10.99

$

In Stock, Qty 20+

0

0010-30

Simplicity 795027

* CAP, Fuel

Note: (Export Models Only)

$10.99

$

In Stock, Qty 20+

0

0030

Simplicity 703217

CAPSCREW, Hex Head, 5/16-18 x 1-1/2, Full Thread

Note: (Use on Domestic Models)

$4.49

$

Usually ships in 2-12 days

0

0055

Simplicity 703297

RETAINER, 5/16, G5

$3.99

$

In Stock, Qty 20+

0

0060

Simplicity 015X79MA

NUT, Flange, 5/16-18, G5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0100

Simplicity 1726864SM

PULLEY, Drive Half

$

$

Not available

0130

Simplicity 1726863SM

PULLEY, Engine Half

$46.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1685366SM

WICK, Felt, 4.65"

$13.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1726868SM

PULLEY, 3/4 ID x 2-1/4 OD

$11.99

$

Usually ships in 2-12 days

0

0155

Simplicity 1726869SM

PULLEY, Engine, Outside

$13.99

$

In Stock, only 1 left!

0

0160

Simplicity 1701818SM

WASHER, Thrust, 3/4 ID x 2-3/4 OD

$6.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1922128SM

CAPSCREW, Hex Head, 3/8-24 x 1-1/2, G8

$4.49

$

In Stock, only 1 left!

0

0190

Simplicity 1922755SM

WASHER, Flat
(Superseded to 704128)

$4.99

$

In Stock, Qty 10

0

0200

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

0230

Simplicity 1701849SM

SPRING, Compression, 1.32"

$14.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1702425SM

SPRING, Compression, 2"

$12.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1731178SM

STOP, Belt

$10.99

$

In Stock, only 2 left!

0

0300

Simplicity 70336

CAPSCREW, Hex Head, 5/16-24 x 3/4, G5

$

$

Not available

0320

Simplicity 703116

LOCKWASHER, Split, 5/16

$3.49

$

In Stock, Qty 20+

0

0340

Simplicity 1732249SM

V-BELT HA , 41.78, Auger Drive

$29.99

$

In Stock, Qty 12

0

0350

Simplicity 1672732SM

V-BELT 3L, 31.0, Traction Drive

$20.99

$

In Stock, Qty 20+

0

0360

Simplicity 1726348SM

PULLEY, Idler, 2-3/4 OD

$24.99

$

In Stock, Qty 7

0

0380

Simplicity 2860709SM

SCREW, Hex Flange, Whiz Lock, 3/8-16 x 1-3/4
(Superseded to 703812)

$4.49

$

Usually ships in 2-12 days

0

0400

Simplicity 1928352SM

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 4 left!

0

0420

Simplicity 1668477SM

PULLEY, Idler, 2-1/4 OD

$23.99

$

In Stock, Qty 20+

0

0430

Simplicity 1960647SM

SCREW, Hex Head, 3/8-16 x 1-1/2

$7.49

$

Usually ships in 2-12 days

0

0460

Simplicity 703164

NUT, Hex, Centerlock, 5/16-18

$3.49

$

In Stock, Qty 19

0

0470

Simplicity 1919326SM

WASHER, .34 ID x 3/4 OD

$4.49

$

In Stock, Qty 8

0

0490

Simplicity 703144

SPRING, Extension, 4-1/4"

$5.99

$

In Stock, Qty 6

0

0510

Simplicity 1703046BMYP

ARM, Idler

$18.99

$

Usually ships in 2-12 days

0

0520

Simplicity 703145

PIN, Clevis

$3.99

$

In Stock, only 3 left!

0

0530

Simplicity 1722460SM

HAIRPIN
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0540

Simplicity 703146

SPRING, Extension, 5.83"
(Superseded to 1687980)

$

$

Not available

0560

Simplicity 93571MA

SCREW, Whiz Lock, 5/16-18 x 3/4, G5
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

0570

Simplicity 1930595SM

SCREW, Hex Flange, Whiz Lock, 5/16 x 1-1/4

$3.99

$

In Stock, Qty 5

0

0580

Simplicity 703330

NUT, Flange, Whiz Lock, 5/16-18, G5

$4.99

$

In Stock, Qty 14

0

0600

Simplicity 1726870CSM

COVER, Bottom

$80.99

$

Usually ships in 2-12 days

0

0610

Simplicity B4300GS

SCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

0630

Simplicity 1725287SM

COVER, Belt
(Superseded to 706414)

$

$

Not available

0640

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, only 3 left!

0

0650

Simplicity 1918249SM

SCREW, Truss Head Slotted, 5/16-18 x 3/4

$4.99

$

Usually ships in 2-12 days

0

0660

Simplicity 703138

WASHER, External Tooth, 5/16

$3.99

$

In Stock, Qty 7

0

0670

Simplicity 1727004BMYP

SUPPORT, Tie Bar

$14.99

$

Usually ships in 2-12 days

0

0680

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0690

Simplicity 1726568CSM

FRAME

$165.99

$

Usually ships in 2-12 days

0

0750

Simplicity 1720404BMYP

SUPPORT, Clutch Cable

$12.99

$

Usually ships in 2-12 days

0

0760

Simplicity 1931317SM

BOLT Carriage, 1/4-20 x 3/4, G5
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

0770

Simplicity 703061

NUT, KEPS, 1/4-20

$3.49

$

In Stock, Qty 13

0

0850

Simplicity 798980

HOSE, Oil Drain

$

$

Not available

0900

Simplicity 62219MA

CORD, Electrical

Note: (Domestic Models Only)

$

$

Not available

1000

Simplicity 1729646BMYP

CLUTCH ROD & BRAKE ARM

$117.99

$

Usually ships in 2-12 days

0

1110

Simplicity 1702969SM

STOP, Belt

$6.49

$

In Stock, only 1 left!

0

1120

Simplicity 1928731SM

NUT, Hex, Top Lock Jam, 3/8-16

$4.99

$

In Stock, only 1 left!

0

1130

Simplicity 1666697SM

SPACER, 5/16 ID x 1/2 OD x 1/4"

$6.49

$

In Stock, only 2 left!

0
