P 1524 E (1695665) - Simplicity 24" Snow Thrower, 14.5hp Wheels & Tires Group Parts Diagram

24" Snow Thrower, 14.5hp

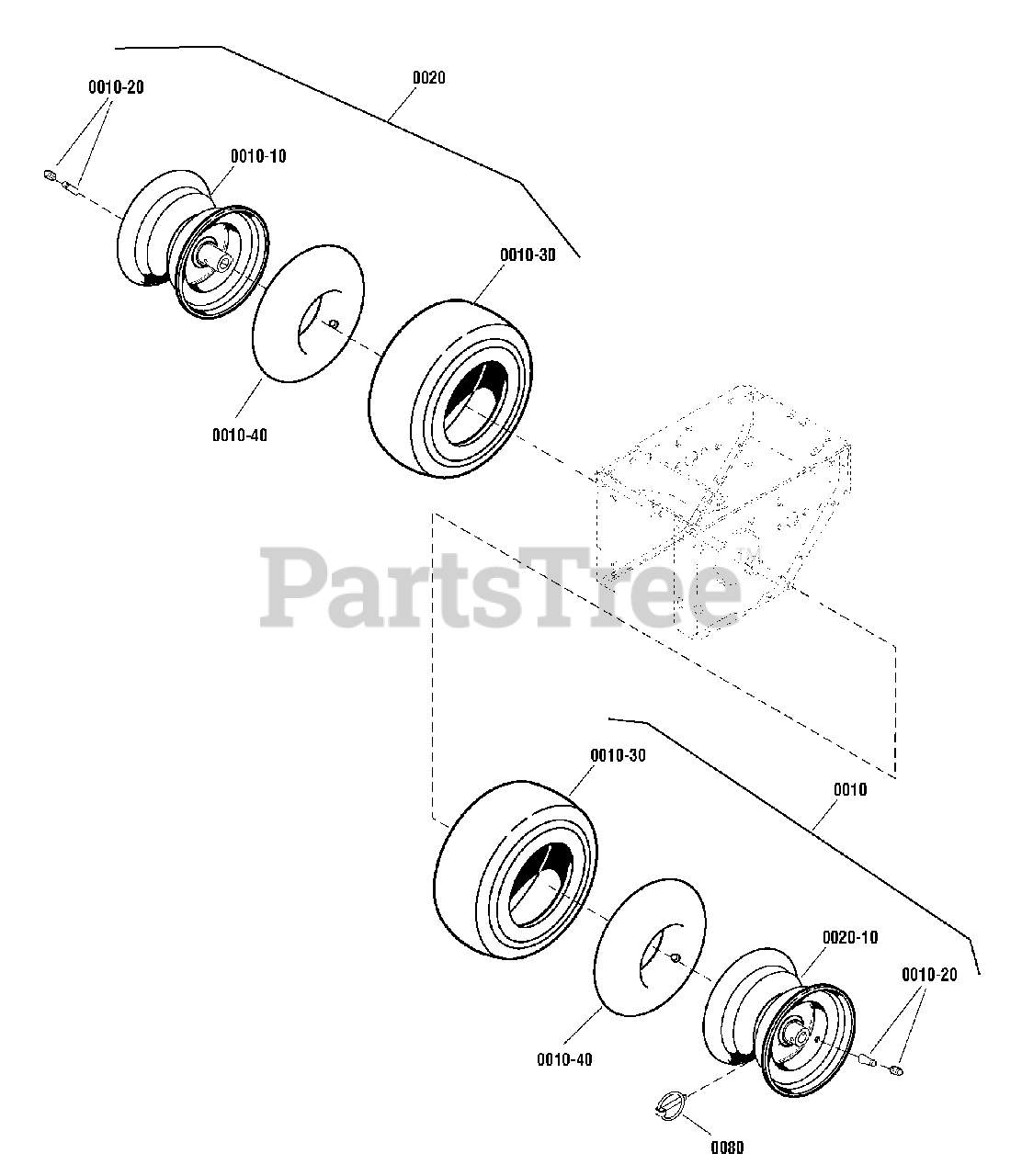

Wheels & Tires Group Parts Diagram

  • Title

0010

Simplicity 1726742SM

WHEEL ASSEMBLY, 4.80-8, K478 L.H.

Note: (24" & 28" Models Only) (Includes Ref. Nos. 0010-10, 0010-20, 0010-30 & 0010-40)

$198.99

$

Usually ships in 2-12 days

0

0010

Simplicity 1726744SM

WHEEL ASSEMBLY, 16 x 6-1/2, K478, L.H.

Note: (32" & 38" Models Only) (Includes Ref. Nos. 0010-10, 0010-20, 0010-30 & 0010-40)

$186.99

$

Usually ships in 2-12 days

0

0010-10

*RIM, 4.80-8, L.H.

Note: (24" & 28" Models Only)

$

$

Not available

0010-10

*RIM, 8 x 5-3/8 x 4, L.H.

Note: (32" & 38" Models Only)

$

$

Not available

0010-20

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0010-30

Simplicity 1612000SM

TIRE, 4.80 / 4.00 - 8, 2 Ply, K398A

Note: (24" & 28" Models Only)

$

$

Not available

0010-30

Simplicity 1727075SM

TIRE, 16 x 6-1/2 - 8, X-Track TL
(Superseded to 1751301YP)

Note: (32" & 38" Models Only)

$101.99

$

Usually ships in 2-12 days

0

0010-40

Simplicity 2153038SM

TUBE, Tire, 4-8

Note: (24" & 28" Models Only)

$35.99

$

Usually ships in 2-12 days

0

0010-40

Simplicity 2164247SM

TUBE, Tire, 16 x 6-1/2 - 8

Note: (32" & 38" Models Only)

$40.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1726743SM

WHEEL ASSEMBLY, K478 4.80-8, Right

Note: (24" & 28" Models Only) (Includes Ref. Nos. 0020-10, 0010-20, 0010-30 & 0010-40)

$192.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1726745SM

WHEEL ASSEMBLY, 16 x 6-1/2, K478, Right

Note: (32" & 38" Models Only) (Includes Ref. Nos. 0020-10, 0010-20, 0010-30 & 0010-40)

$173.99

$

Usually ships in 2-12 days

0

0020-10

*RIM, 4.80-8, R.H.

Note: (24" & 28" Models Only)

$

$

Not available

0020-10

*RIM, 8 x 5-3/8 x 4, R.H.

Note: (32" & 38" Models Only)

$

$

Not available

0080

Simplicity 1731186SM

PIN, Klick, 5/16 x 2
(Superseded to 703160)

$5.49

$

In Stock, Qty 7

0
