P 1500 (952711930) - Poulan String Trimmer (2010-04) SHAFT HANDLE Parts Diagram

String Trimmer

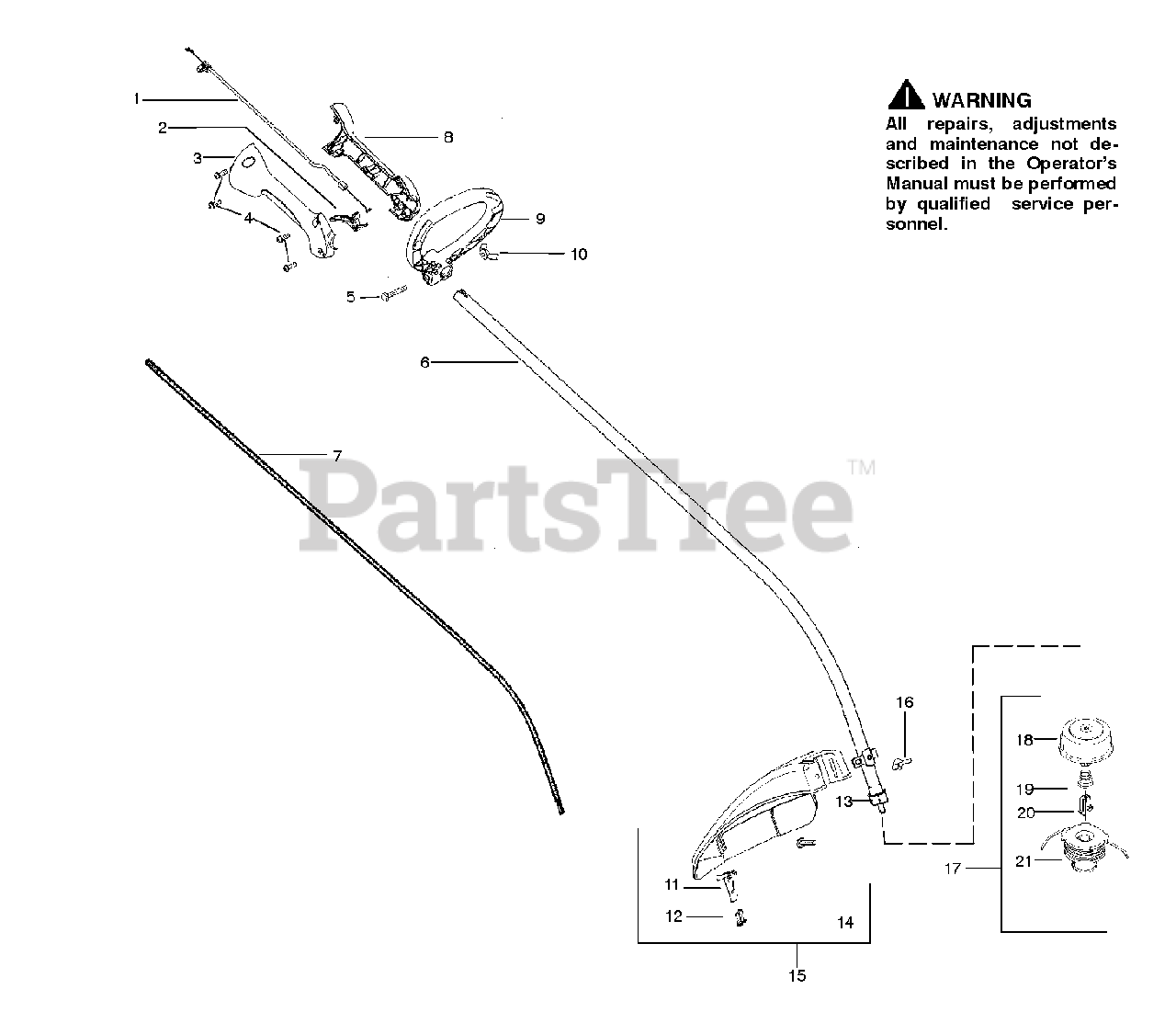

SHAFT HANDLE Parts Diagram

  • Title

1

Poulan 530057991

ASSY THROTTLE CABLE

$11.99

$

In Stock, only 2 left!

0

2

Poulan 530049107

TRIGGER RED

$

$

Not available

3

Poulan 530057582

HSG THROTTLE RH

Note: RIGHT

$10.99

$

In Stock, only 2 left!

0

4

Poulan 530015880

SCREW

$4.99

$

In Stock, Qty 8

0

5

Poulan 530015821

BOLT\-1/4-20X1-1/2

$5.99

$

Usually ships in 3-10 days

0

6

Poulan 530071875

KIT D'SHAFT 51" SILVER
(Superseded to 581494909)

$

$

Not available

7

Poulan 530096276

DRIVE SHAFT

$30.99

$

Usually ships in 3-10 days

0

8

Poulan 530057581

HSG THROTTLE LH

Note: LEFT

$11.99

$

Usually ships in 3-10 days

0

9

Poulan 530058580

ASSY ASSIST HANDLE
(Superseded to 530071747)

Note: . 5 10

$

$

Not available

10

Poulan 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

11

Poulan 530052286

LINE CUTTER

$

$

Not available

12

Poulan 530015966

SCREW - THROTTLE HOUSING

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 530095563

DUST CUP

$14.99

$

Usually ships in 3-10 days

0

14

Poulan 530015820

BOLT, TYPE 2

$4.99

$

In Stock, only 1 left!

0

15

Poulan 530071795

KIT

Note: . 11 12 14 16

$18.99

$

In Stock, only 1 left!

0

16

Poulan 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

17

Poulan 952701723

ACY PLN TNG 6 RH 5/16".080 RND

Note: . 18 19 20 21

$

$

Not available

18

Poulan 530095776

TNG VI HUB ASSY 5/16" RH
(Superseded to 530071306)

$

$

Not available

19

Poulan 530053241

SPRING

$

$

Not available

20

Poulan 530401957

RETAINER

$4.99

$

In Stock, only 4 left!

0

21

Poulan 952701719

TNG 6 RH .080X25' PLN

$

$

Not available
