P 14530 ES (961980045-03) - Poulan Pro Snow Thrower (2013-09) CHASSIS /ENGINE /PULLEY Parts Diagram

Snow Thrower

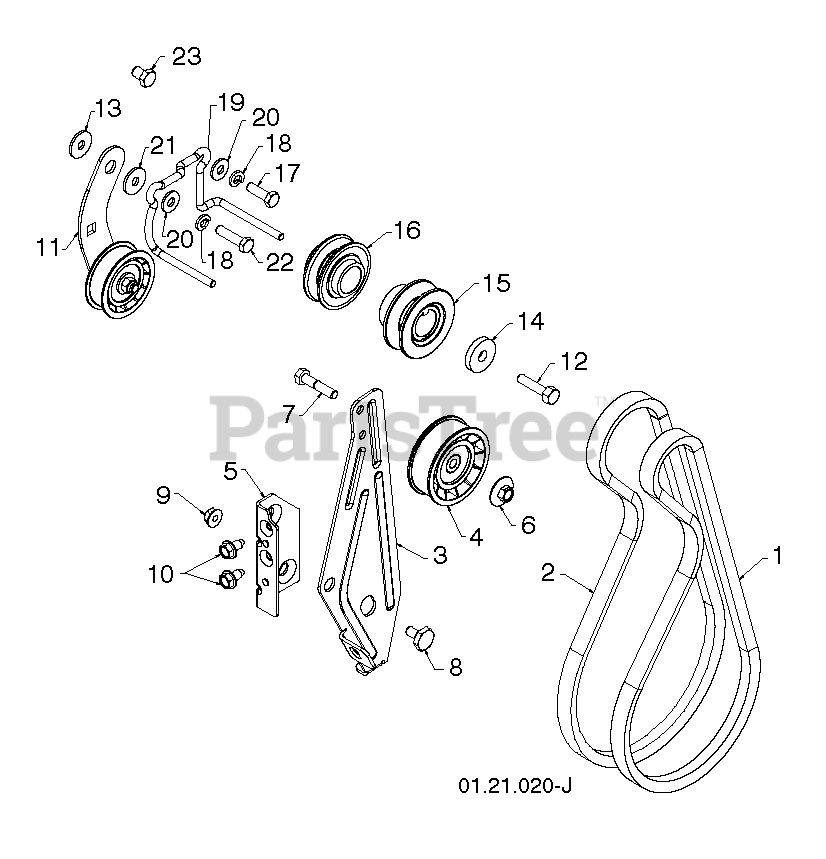

CHASSIS /ENGINE /PULLEY Parts Diagram

  • Title

1

Poulan 532430784

Impeller Drive Belt

$36.99

$

In Stock, only 1 left!

0

2

Poulan 532427304

TRACTION BELT

$34.99

$

Usually ships in 3-10 days

0

3

Poulan 584232402

ARM.IDLER BRAKE.CLEAR.ZINC

$

$

Not available

4

Poulan 532180523

PULLEY.W/SPACER.2.75

$24.99

$

Usually ships in 3-10 days

0

5

Poulan 585284901

BRACKET.IDLER.PIVOT.ZINC
(Superseded to 532423990)

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 532426589

NUT.FLANGE.HEX.5/16X18.BLACK

$6.49

$

In Stock, Qty 15

0

7

Poulan 874780524

HEX BOLT
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

8

Poulan 532424297

BOLT.SHOULDER.1/2X12

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

10

Poulan 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

11

Poulan 585238401

ARM.ASM.TRACTION.IDLER.SNOW

$44.99

$

In Stock, only 2 left!

0

12

Poulan 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

13

Poulan 532059289

STEEL WASHER

$4.99

$

In Stock, only 2 left!

0

14

Poulan 819132005

WASHER.400X1.25X5.

$6.99

$

Usually ships in 3-10 days

0

15

Poulan 585200201

PULLEY ASM.IMP.2.60

$

$

Not available

16

Poulan 585029301

PULLEY.ASM.ENG.TRACTION

$

$

Not available

17

Poulan 874610516

SCREW

$4.99

$

In Stock, only 3 left!

0

18

Poulan 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

19

Poulan 585058201

RB GUIDE.BELT.CHAIN.LS.SNOW
(Superseded to 585540501)

$14.99

$

Usually ships in 3-10 days

0

20

Poulan 532155415

WASHER.20X8.5

$5.99

$

In Stock, only 1 left!

0

21

Poulan 532175331

BUSHING, IDLER PIVOT
(Superseded to 587343701)

$6.99

$

Usually ships in 3-10 days

0

22

Poulan 874610520

CAPSCREW.HEXHD.5/16X1.25.

$9.49

$

Usually ships in 3-10 days

0

23

Poulan 874760608

SCREW.3/8-16 X .750

$4.99

$

In Stock, only 1 left!

0
