P 145107 HRB (960610175-07) - Husqvarna Lawn Tractor (2011-08) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

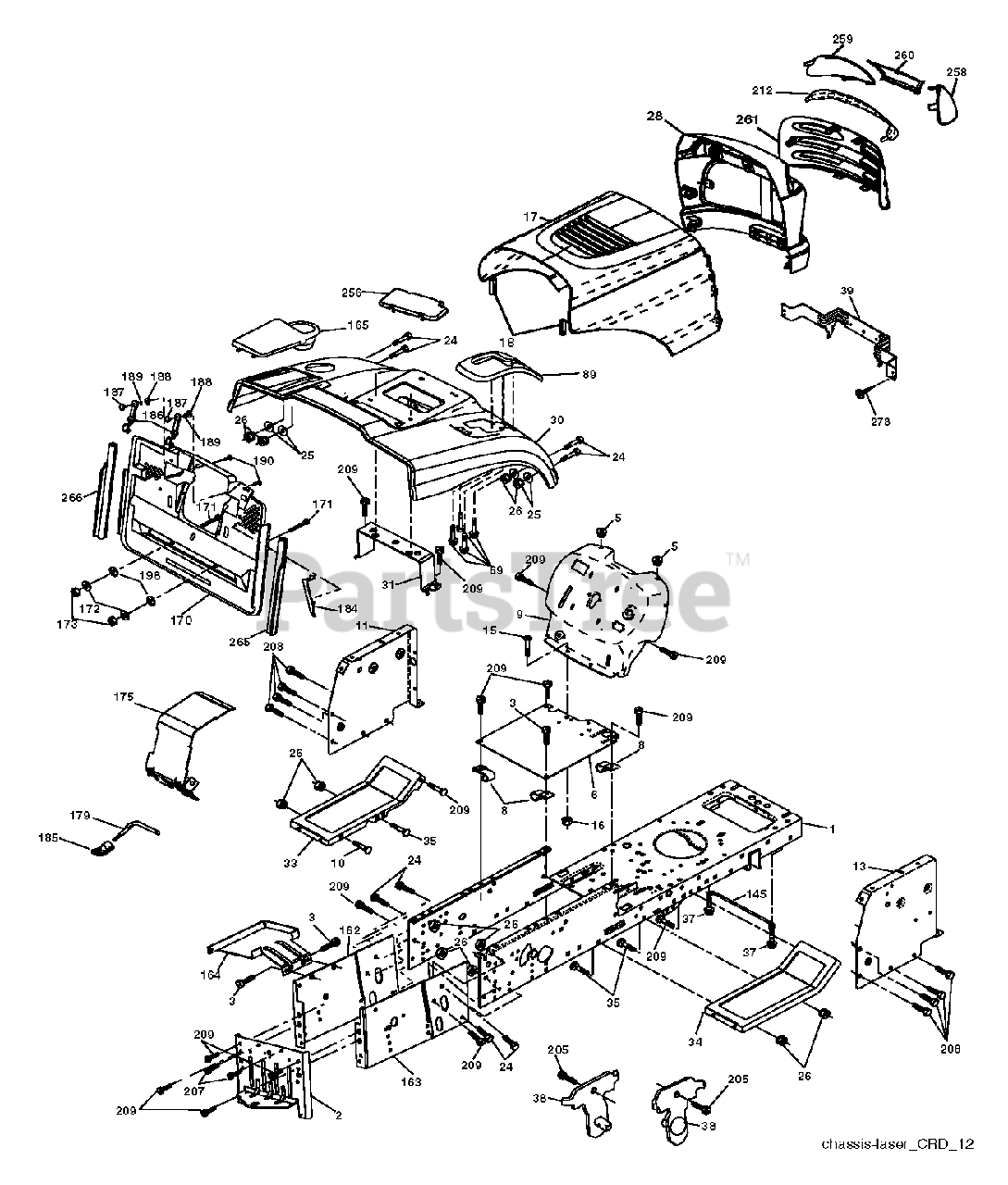

CHASSIS ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 532174620

CHASSIS
(Superseded to 174620)

$136.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532180384

NO LONGER AVAILABLE
(Superseded to 583101001)

$

$

Not available

3

Electrolux/AYP 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0

6

Electrolux/AYP 532184419

NO LONGER AVAILABLE
(Superseded to 583133601)

$12.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532194688

FENDER LT SH
(Superseded to 532194672)

$28.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532174996

PANEL.DASH.LH.LTX
(Superseded to 174996)

$

$

Not available

13

Electrolux/AYP 532181719

PANEL DASH RH
(Superseded to 532172105)

$21.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 874180512

SCREW

$

$

Not available

16

Electrolux/AYP 873510500

NUT
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532182716

GRILLE.LASER

$103.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 9

0

24

Electrolux/AYP 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532431522

GRILLE.LASER II.DUAL.
(Superseded to 583308101)

$132.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532197364

FENDER.PNT.CRD.MS428 K

$133.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 532165156

BRACKET SUPPORT FENDER
(Superseded to 165156)

$

$

Not available

33

Electrolux/AYP 532182507

FOOTREST.LH

$43.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532182508

FOOTREST.RH

$

$

Not available

35

Electrolux/AYP 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532181748

NO LONGER AVAILABLE
(Superseded to 583117401)

$11.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 532407807

BRACKET PIVOT

$31.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 532197366

NO LONGER AVAILABLE
(Superseded to 532197364)

$133.99

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

162

Electrolux/AYP 532180382

NO LONGER AVAILABLE
(Superseded to 583100801)

$47.99

$

Usually ships in 3-10 days

0

163

Electrolux/AYP 532180383

NO LONGER AVAILABLE
(Superseded to 583100901)

$42.99

$

Usually ships in 3-10 days

0

164

Electrolux/AYP 532165605

SUPPORT
(Superseded to 165605)

$

$

Not available

165

Electrolux/AYP 532181356

FENDER.PNT.CRD.

$11.99

$

Usually ships in 3-10 days

0

170

Electrolux/AYP 532199488

NO LONGER AVAILABLE

$

$

Not available

171

Electrolux/AYP 872140620

BOLT
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

172

Electrolux/AYP 819132016

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

173

Electrolux/AYP 873510600

NUT **

$6.49

$

Usually ships in 3-10 days

0

175

Electrolux/AYP 532188203

NO LONGER AVAILABLE
(Superseded to 583707801)

$24.99

$

Usually ships in 3-10 days

0

179

Electrolux/AYP 532188202

NO LONGER AVAILABLE
(Superseded to 583170601)

$27.99

$

Usually ships in 3-10 days

0

184

Electrolux/AYP 532174662

BRACKET.ACTUATOR.BAGGER.SRD

$5.99

$

Usually ships in 3-10 days

0

185

Electrolux/AYP 532441416

KNOB.BRAKE.PARKING.ROD

$11.99

$

Usually ships in 3-10 days

0

186

Electrolux/AYP 532160793

LATCH ASSY

$

$

Not available

187

Electrolux/AYP 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

188

Electrolux/AYP 819061216

WASHER

$4.99

$

Usually ships in 3-10 days

0

189

Electrolux/AYP 810071000

LOCKWASHER

$4.99

$

In Stock, Qty 11

0

190

Electrolux/AYP 871081010

SCREW

$6.49

$

Usually ships in 3-10 days

0

198

Electrolux/AYP 532168937

NUT

$4.99

$

Usually ships in 3-10 days

0

205

Electrolux/AYP 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

207

Electrolux/AYP 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

208

Electrolux/AYP 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

209

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

212

Electrolux/AYP 532184248

NO LONGER AVAILABLE
(Superseded to 583132401)

$18.99

$

Usually ships in 3-10 days

0

256

Electrolux/AYP 532181361

FENDER.PNT.CRD

$3.99

$

Usually ships in 3-10 days

0

258

Electrolux/AYP 532190507

LENS.LASER.2PC.LH.CLEAR.SVC

$20.99

$

Usually ships in 3-10 days

0

259

Electrolux/AYP 532190508

COVER.LENS.LASER.II
(Superseded to 532190507)

$20.99

$

Usually ships in 3-10 days

0

260

Electrolux/AYP 532408382

NO LONGER AVAILABLE

$

$

Not available

261

Electrolux/AYP 532408395

NO LONGER AVAILABLE

$

$

Not available

265

Electrolux/AYP 532185704

NO LONGER AVAILABLE
(Superseded to 583146701)

$21.99

$

Usually ships in 3-10 days

0

266

Electrolux/AYP 532185703

NO LONGER AVAILABLE
(Superseded to 583146601)

$21.99

$

Usually ships in 3-10 days

0

278

Electrolux/AYP 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

--

Electrolux/AYP 532005479

PLUG BUTTON T

$5.99

$

Usually ships in 3-10 days

0
