P 1332 E (1695078) - Simplicity 32" Snow Thrower, 13hp Handles & Controls Group Parts Diagram

32" Snow Thrower, 13hp

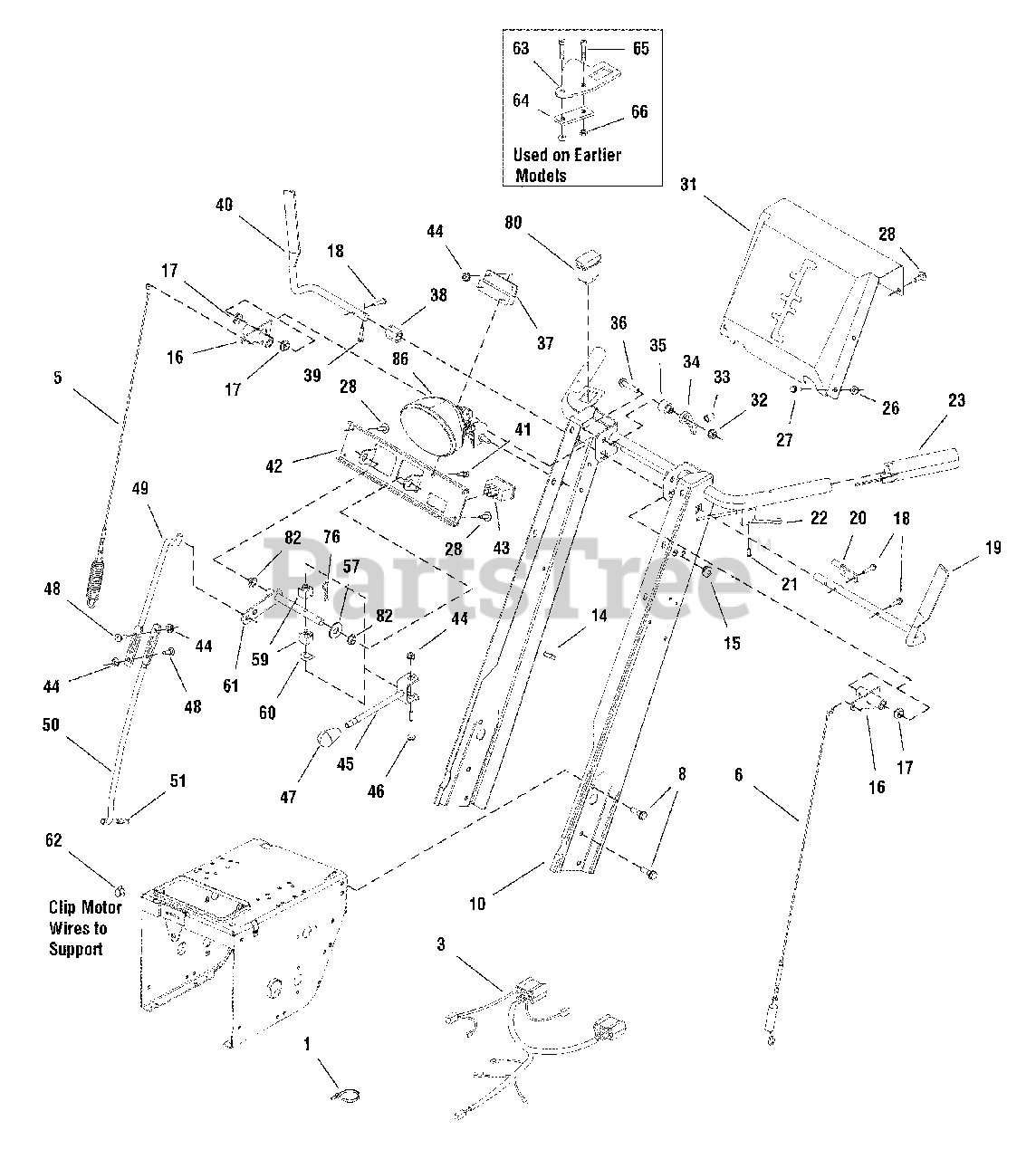

Handles & Controls Group Parts Diagram

  • Title

1

Simplicity 1701011SM

TIE, Self Locking .184 Wide 7.31 Long

$5.49

$

In Stock, only 2 left!

0

3

Simplicity 1728968SM

HARNESS, Hand Warmers/Spout

$104.99

$

Usually ships in 2-12 days

0

5

Simplicity 1728114SM

CABLE & SPRING ASSEMBLY, R.H. Auger
(Superseded to 1735148SM)

$23.99

$

In Stock, only 1 left!

0

6

Simplicity 1728115SM

CABLE & SPRING ASSEMBLY, L.H. Traction

$17.99

$

Usually ships in 2-12 days

0

8

Simplicity 1960729SM

SCREW, Hex Head SER Flange Taptite, R5/16-18 x 1

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 1733890CSM

HANDLE ASSEMBLY, Channel
(Superseded to 772297)

$234.99

$

Usually ships in 2-12 days

0

14

Simplicity 2834683SM

CLIP, Speed Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

15

Simplicity 1664022SM

GROMMET, 1/2 Diameter

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1725205ASM

LEVER & TUBE ASSEMBLY, Clutch

$33.99

$

Usually ships in 2-12 days

0

17

Simplicity 1732732SM

BUSHING, .52 ID x .585 Square x .22 Long Nylon

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 1960471SM

SCREW, Hex Washer Head Taptite, #12-24 x 1

$3.49

$

In Stock, only 1 left!

0

19

Simplicity 1727127SM

HANDLE, Clutch L.H.

$45.99

$

Usually ships in 2-12 days

0

20

Simplicity 1677453SM

ROD, Control, 3/8 Diameter, 2.81 Long 2" Flat

$8.99

$

Usually ships in 2-12 days

0

21

Simplicity 1725702SM

SCREW, Pan Head Torx #10 x 1/2 Thick

$5.49

$

Usually ships in 2-12 days

0

22

Simplicity 1718791SM

CABLE & HANDLE ASSEMBLY

$70.99

$

In Stock, only 3 left!

0

23

Simplicity 1723965SM

HAND GRIP, Heated

$86.99

$

Usually ships in 2-12 days

0

26

Simplicity 1930641SM

NUT, Hex Whiz Lock Flange, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1935450SM

CAPSCREW, Hex Washer Head, 1/4-20 x 3/4, G5

$4.49

$

In Stock, only 1 left!

0

28

Simplicity 1925592SM

SCREW, Hex Washer Head Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

31

Simplicity 1667800CSM

DASHBOARD

$52.99

$

Usually ships in 2-12 days

0

32

Simplicity 1960686SM

NUT, Hex Flange 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1701342SM

SPRING, Compression, .38 ID x 1 Long
(Superseded to 1750475YP)

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 1705898SM

LATCH, Control, Powdered Metal
(Superseded to 703214)

$9.49

$

Usually ships in 2-12 days

0

35

Simplicity 1678579SM

SPACER, .328 ID x .81 OD x .94 Long 1/2
(Superseded to 703049)

$6.99

$

Usually ships in 2-12 days

0

36

Simplicity 1933689SM

SCREW, Hex Whiz Lock Flange, 5/16-18 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0

37

Simplicity 1724037SM

RESISTOR BLOCK, 1.53

$39.99

$

Usually ships in 2-12 days

0

38

Simplicity 1705899SM

GUIDE, Control, .434 Wide 1.08 Long, Powdered Metal
(Superseded to 703213)

$8.49

$

In Stock, only 2 left!

0

39

Simplicity 1928732SM

SCREW, Hex Washer Head Taptite #10-24 x 1
(Superseded to 703162)

$3.99

$

In Stock, only 1 left!

0

40

Simplicity 1727128SM

HANDLE, Clutch R.H.

$40.99

$

Usually ships in 2-12 days

0

41

Simplicity 1923341SM

CAPSCREW, Hex Head 1/4-20 x 3/4, G5

$4.49

$

In Stock, Qty 8

0

42

Simplicity 1723935ASM

BRACKET, Shift Control
(Superseded to 1723935BMYP)

$15.99

$

Usually ships in 2-12 days

0

43

Simplicity 1723967SM

SWITCH, Hand Warmer

$38.99

$

Usually ships in 2-12 days

0

44

Simplicity 1960685SM

NUT, Hex Keps, 1/4-20 Conical Washer
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

45

Simplicity 1714120SM

ROD & CLEVIS ASSEMBLY, Shift
(Superseded to 703053)

$38.99

$

Usually ships in 2-12 days

0

46

Simplicity 1960705SM

SCREW, Hex Whiz Lock Flange, 1/4-20 x 2-1/4

$2.99

$

Usually ships in 2-12 days

0

47

Simplicity 1713844SM

KNOB, Hole, .357 Diameter 1.14 Diameter, Sphere Softer

$12.99

$

Usually ships in 2-12 days

0

48

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4, G5
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

49

Simplicity 1726304SM

ROD, 3/8 Diameter, 11.38 Long

$

$

Not available

50

Simplicity 1666255SM

ROD, Shift Lower

$51.99

$

In Stock, only 4 left!

0

51

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

57

Simplicity 1924361SM

WASHER, 0500 .53 ID x 1-1/4 x .08 Thick
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

59

Simplicity 1668524SM

BLOCK, Pivot
(Superseded to 703050)

$13.99

$

Usually ships in 2-12 days

0

60

Simplicity 1668681SM

WASHER, Curved, .525 ID x .98 OD x .014 Thick

$4.49

$

Usually ships in 2-12 days

0

61

Simplicity 1674567SM

ROD & ARM ASSEMBLY, Pivot,
(Superseded to 703052)

$39.99

$

Usually ships in 2-12 days

0

62

Simplicity 2172434SM

CLIP, .115/.135 Panel

$4.99

$

Usually ships in 2-12 days

0

63

Simplicity 1729644CSM

BRACKET, Switch Top

$11.99

$

Usually ships in 2-12 days

0

64

Simplicity 1725427CSM

BRACKET, Switch Mounting Plate

$2.49

$

Usually ships in 2-12 days

0

65

Simplicity 1960725SM

SCREW, Truss Head Phillips

$2.99

$

Usually ships in 2-12 days

0

66

Simplicity 1933896SM

NUT, Hex Lock 10-24 w/Nylon
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

76

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

80

Simplicity 1728969SM

SWITCH, Chute Rotator

$54.99

$

In Stock, only 1 left!

0

82

Simplicity 1668185SM

BUSHING, 1/2 ID x 3/4 OD x 1/4 Long Nylon

$5.49

$

In Stock, only 1 left!

0

--

* BULB, 881-12V 27 Watt Halogen

$

$

Not available

86

Simplicity 1732321SM

HEADLIGHT ASSEMBLY, Oval Amber
(Superseded to 1688087)

$

$

Not available
