P 125107 H (960410013-05) - Electrolux/AYP Lawn Tractor (2010-09) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

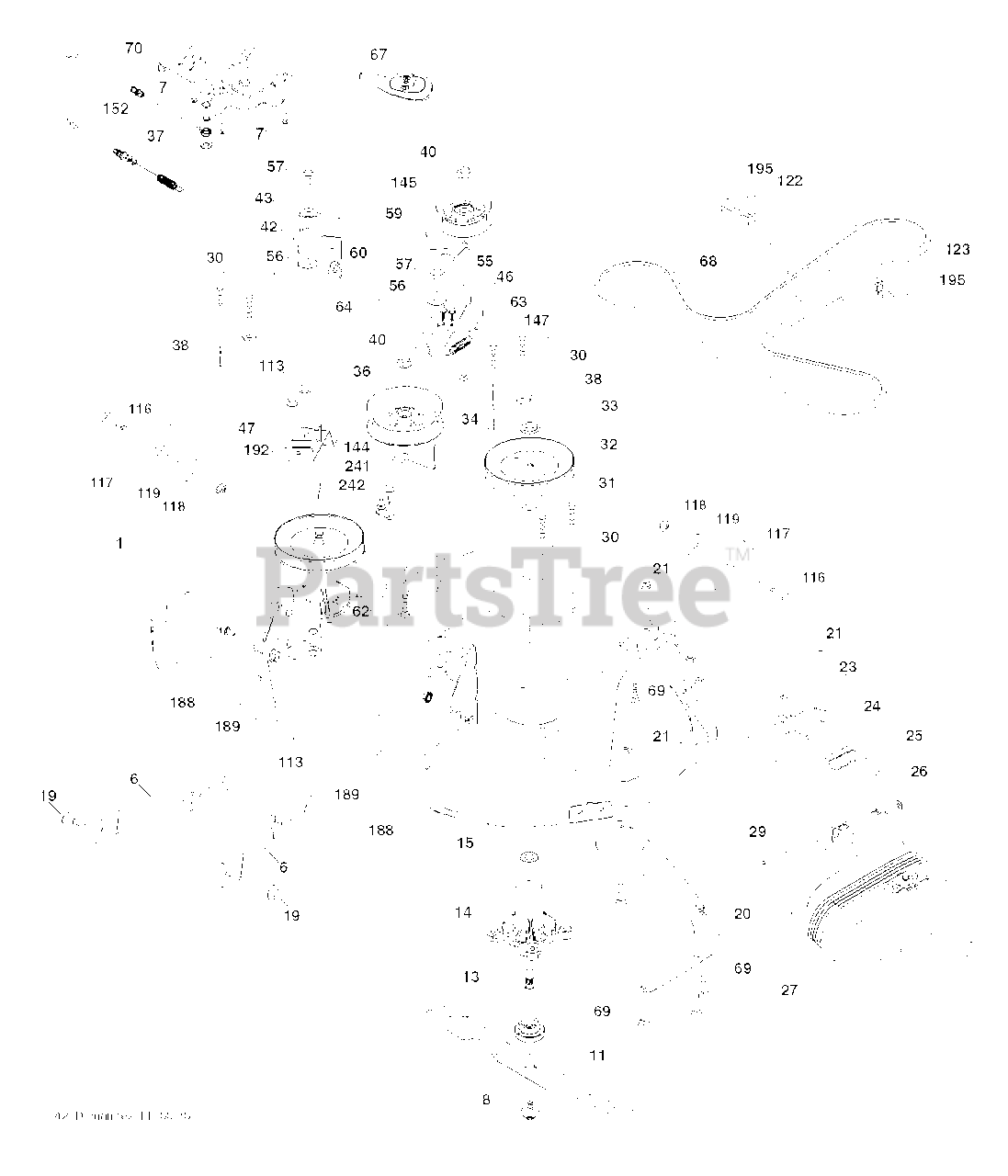

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Electrolux/AYP 532196495

DECK.WELDMENT.42"
(Superseded to 532199606)

$338.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

8

Electrolux/AYP 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532138971

42" HI-LIFT BLADE

$20.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 532187281

HOUSING MANDREL
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 532110485

BEARING

$13.99

$

In Stock, Qty 14

0

19

Electrolux/AYP 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

20

Electrolux/AYP 532159770

BAFFLE.VORTEX

$

$

Not available

21

Electrolux/AYP 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 5

0

24

Electrolux/AYP 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 15

0

26

Electrolux/AYP 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532403004

SHIELD.DEFLECTOR.MOWER.42"BLAC

$44.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

32

Electrolux/AYP 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$14.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

34

Electrolux/AYP 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

38

Electrolux/AYP 532432520

KEEPER.BELT.MANDREL.PULLEY
(Superseded to 589676103)

$7.99

$

In Stock, Qty 12

0

40

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

42

Electrolux/AYP 532198410

SPRING.TORSION.BRAKE

$6.49

$

In Stock, Qty 8

0

43

Electrolux/AYP 532197256

SRPING.TORSION.RETAINE

$6.49

$

In Stock, Qty 8

0

46

Electrolux/AYP 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

47

Electrolux/AYP 532197250

BRKT.CLUTCH.CABLE

$6.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 532197249

IDLER.ARM

$

$

Not available

56

Electrolux/AYP 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

57

Electrolux/AYP 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

59

Electrolux/AYP 532141043

GUARD, BELT

$

$

Not available

60

Electrolux/AYP 532197261

ARM BRAKE MOWER
(Superseded to 597074201)

$14.99

$

In Stock, Qty 15

0

62

Electrolux/AYP 872110616

BOLT
(Superseded to 596136301)

$3.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 532199477

ARM BRAKE MOWER
(Superseded to 532199478)

$17.99

$

In Stock, Qty 20+

0

64

Electrolux/AYP 532199790

LINK BRAKE
(Superseded to 532199918)

$24.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 532409792

NO LONGER AVAILABLE

$

$

Not available

68

Electrolux/AYP 532429636

BELT.DECK.DRIVE.42"
(Superseded to 598559101)

$51.99

$

In Stock, Qty 20+

0

69

Electrolux/AYP 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

70

Electrolux/AYP 532401246

CLUTCH.ASM.MANUAL.LT.PRED

$80.99

$

In Stock, only 1 left!

0

113

Electrolux/AYP 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

116

Electrolux/AYP 532124842

Shield Bolt, A 2.41 B 1.66
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

117

Electrolux/AYP 532188606

WHEEL.GAGE.HALF.SPOKED
(Superseded to 589527401)

$11.99

$

In Stock, Qty 10

0

118

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

119

Electrolux/AYP 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

122

Electrolux/AYP 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

$7.49

$

In Stock, Qty 6

0

123

Electrolux/AYP 532197259

KEEPER BELT RH

$

$

Not available

144

Electrolux/AYP 532199204

KEEPER.BELT.MOWER

$6.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 5

0

147

Electrolux/AYP 532401971

RETURN SPRING

$5.99

$

In Stock, Qty 6

0

152

Electrolux/AYP 532435111

CABLE.CLUTCH.MANUAL.

$34.99

$

In Stock, only 1 left!

0

188

Electrolux/AYP 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Electrolux/AYP 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

192

Electrolux/AYP 532197260

BRKT.BRAKE.STAND.LH.

$

$

Not available

195

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

241

Electrolux/AYP 532152927

SCREW

$7.49

$

In Stock, only 2 left!

0

242

Electrolux/AYP 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

--

Electrolux/AYP 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: (Includes housing shaft and shaft hardware only-pulley not included)

$56.99

$

In Stock, Qty 20+

0

--

Electrolux/AYP 532431186

NO LONGER AVAILABLE

$

$

Not available
