P 11597 (960110193-08) - Electrolux/AYP Lawn Tractor (2010-09) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

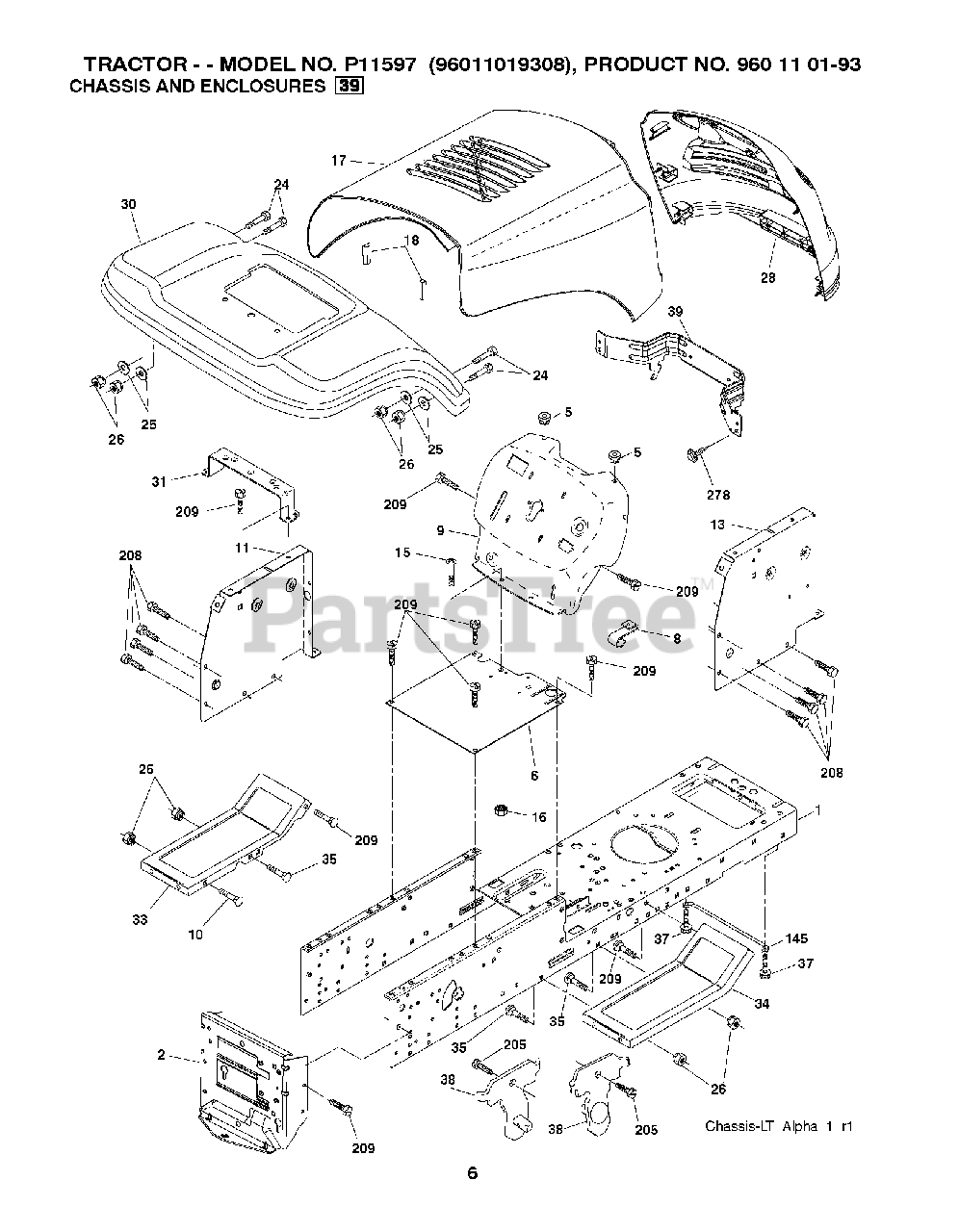

CHASSIS ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 532174620

CHASSIS
(Superseded to 174620)

$148.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532176554

DRAWBAR, 12GA

$45.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0

6

Electrolux/AYP 532184419

NO LONGER AVAILABLE
(Superseded to 583133601)

$12.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532155138

CLIP RETAINER

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532194688

FENDER LT SH
(Superseded to 532194672)

$28.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532174996

PANEL.DASH.LH.LTX
(Superseded to 174996)

$

$

Not available

13

Electrolux/AYP 532181719

PANEL DASH RH
(Superseded to 532172105)

$21.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 874180512

SCREW

$

$

Not available

16

Electrolux/AYP 873510500

NUT
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532406179

HOOD.BLACK.ALPHA

$227.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 9

0

24

Electrolux/AYP 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 14

0

26

Electrolux/AYP 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532194798

GRILLE.ALPHA.LT.NO LI

$

$

Not available

30

Electrolux/AYP 532404852

NO LONGER AVAILABLE

$

$

Not available

31

Electrolux/AYP 532136619

BRACKET FENDER
(Superseded to 136619)

$

$

Not available

33

Electrolux/AYP 532182507

FOOTREST.LH

$45.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532182808

NO LONGER AVAILABLE

$

$

Not available

35

Electrolux/AYP 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532175710

BRACKET.ASM.PIVOT.MOWER.REAR

$11.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 532187568

BRACKET.PIVOT.ALPHA.LT

$31.99

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

205

Electrolux/AYP 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

208

Electrolux/AYP 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

209

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

278

Electrolux/AYP 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

Usually ships in 3-10 days

0

--

Electrolux/AYP 532005479

PLUG BUTTON T

$9.49

$

Usually ships in 3-10 days

0

--

Electrolux/AYP 532193935

PLUG.SWITCH.LIGHT.428
(Superseded to 532193934)

$9.49

$

Usually ships in 3-10 days

0
