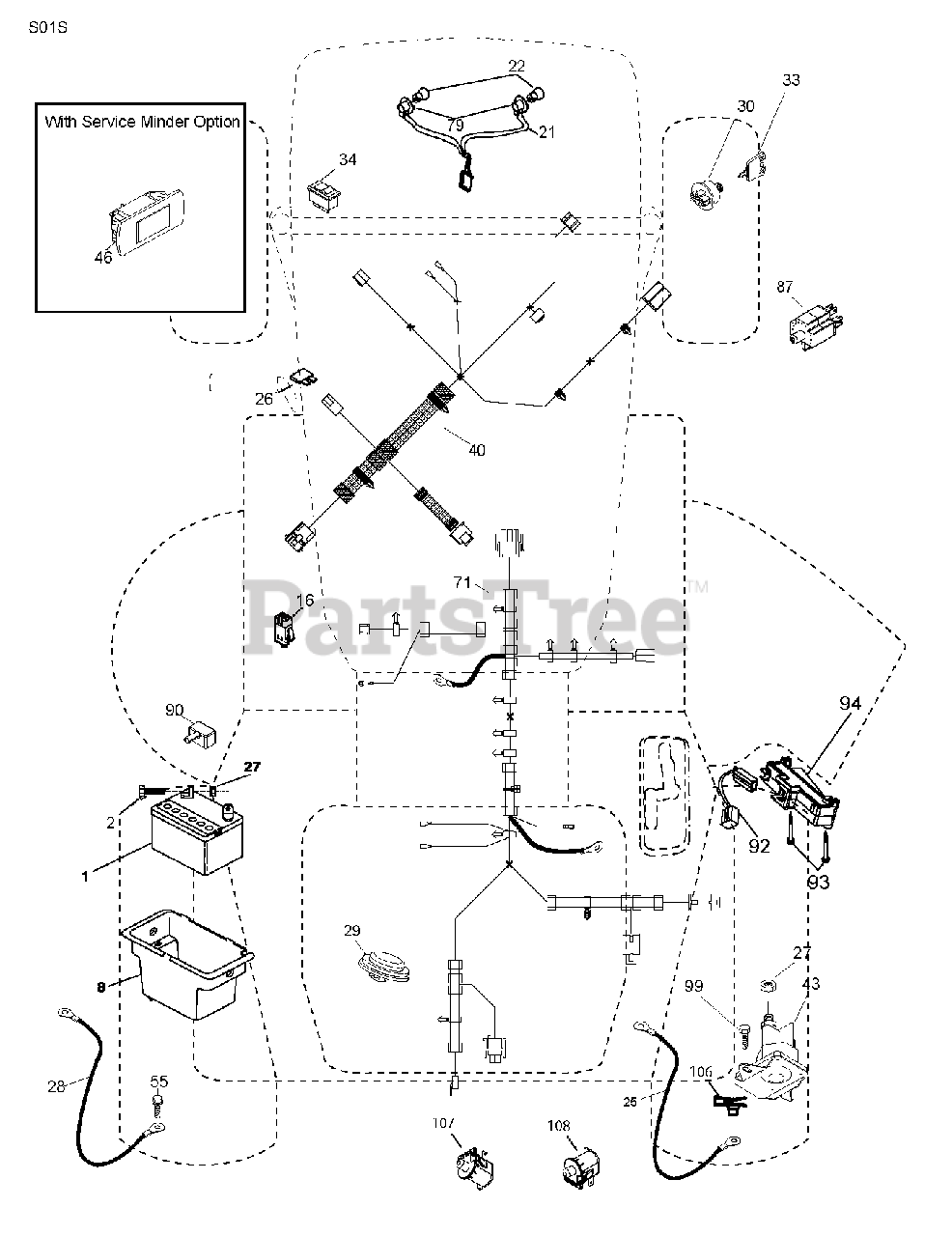

P 11577 RB (960410094-02) - Electrolux/AYP Lawn Tractor (2010-09) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title
1

Electrolux/AYP 532144924

NO LONGER AVAILABLE
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

$7.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 532419791

BOX.BATTERY.LT/SRD
(Superseded to 583377701)

$24.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 7

0

21

Electrolux/AYP 532400252

HARNESS.LIGHT W/4152J BULBS

$34.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532416694

CABLE.BATTERY.20.RED.8 AWG

$20.99

$

In Stock, only 3 left!

0

26

$7.49

$

In Stock, only 2 left!

0

27

Electrolux/AYP 873510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 532421686

Battery Ground Cable, Rear 8 Ga

$17.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

30

Electrolux/AYP 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

$10.99

$

Usually ships in 3-10 days

0

$9.49

$

In Stock, only 4 left!

0

40

Electrolux/AYP 532421002

HARNESS.ELECTRICAL.DASH.SRD
(Superseded to 583384801)

$121.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 532192507

SOLENOID.W/BRASS.PLUNG
(Superseded to 582042802)

$26.99

$

In Stock, Qty 19

0

55

Electrolux/AYP 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 532429412

HARNESS.ELECTRIC.CHASSIS.SRD
(Superseded to 583451301)

$148.99

$

In Stock, only 1 left!

0

79

Electrolux/AYP 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 532421060

Railmount Switch, No-Nc-Nc

$

$

Not available

90

Electrolux/AYP 532435395

COVER.TERMINAL.BATTERY

$6.49

$

In Stock, only 2 left!

0

92

Electrolux/AYP 532196615

HARNESS.PIGTAIL.CONSLE

$18.99

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 532192540

SCREW.PLASTITE

$4.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 532191834

MODULE.REVERSE.ROS

$37.99

$

Usually ships in 3-10 days

0

99

Electrolux/AYP 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

106

$6.49

$

In Stock, only 1 left!

0

107

Electrolux/AYP 532421061

Snapmount Switch, No #2

$14.99

$

In Stock, only 2 left!

0

108

Electrolux/AYP 532421062

SWITCH.SNAPMOUNT.NC

$14.99

$

In Stock, only 2 left!

0
