P 11577 RB (960410094-02) - Electrolux/AYP Lawn Tractor (2010-09) DRIVE Parts Diagram

Lawn Tractor

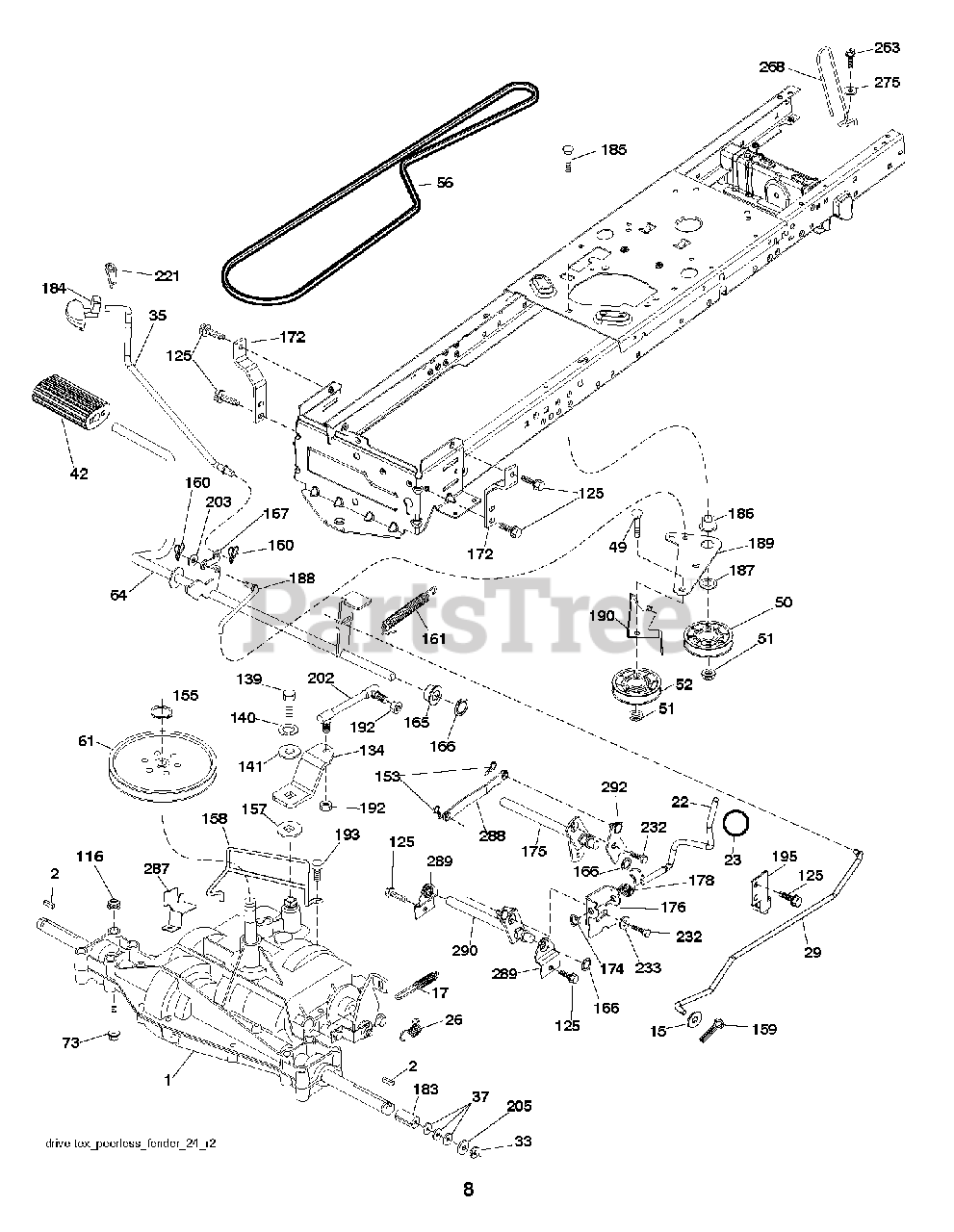

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP TBD

TBD

$

$

Not available

2

Electrolux/AYP 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 7

0

15

Electrolux/AYP 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

17

Electrolux/AYP 532197297

SPRING.BRAKE.PEERLESS.TEX

$9.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532416614

SHIFTER.ASM.HANDLE.SRD
(Superseded to 532416616)

$

$

Not available

23

Electrolux/AYP 532171674

NO LONGER AVAILABLE

$

$

Not available

26

Electrolux/AYP 532197455

SPRING.BRAKE.RTN.GR.DR

$4.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532197267

ROD.BRAKE.PEERLESS

$30.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532401031

ROD, BRAKE, PARK

$18.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 11

0

51

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Electrolux/AYP 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 532138255

BELT, V GROUND DRIVE 95 25

$39.99

$

In Stock, Qty 7

0

61

Electrolux/AYP 532165999

NO LONGER AVAILABLE
(Superseded to 584450701)

$60.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 532196200

SHAFT.ASM.PEDAL.BRAKE.

$56.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 874490540

BOLT

$4.99

$

Usually ships in 3-10 days

0

116

Electrolux/AYP 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

125

Electrolux/AYP 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

134

Electrolux/AYP 532197857

ARM SHIFT

$7.99

$

Usually ships in 3-10 days

0

139

Electrolux/AYP 874550412

BOLT 1/4-28X3/4
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

140

Electrolux/AYP 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

141

Electrolux/AYP 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

In Stock, only 2 left!

0

153

Electrolux/AYP 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

155

Electrolux/AYP 812000028

RETAINING RING LT
(Superseded to 532002267)

$7.49

$

In Stock, Qty 8

0

157

Electrolux/AYP 532105701

WASH-SHFT PLT LT

$6.49

$

Usually ships in 3-10 days

0

158

Electrolux/AYP 532194352

KEEPER.PMS.18/20.D4365
(Superseded to 593853501)

$10.99

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Electrolux/AYP 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Electrolux/AYP 532105709

SPRING, RETURN LT

$11.99

$

In Stock, only 2 left!

0

165

Electrolux/AYP 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.99

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Electrolux/AYP 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

172

Electrolux/AYP 532197657

STRAP.TRQ.LH.GEAR.DRIV

$6.49

$

Usually ships in 3-10 days

0

174

Electrolux/AYP 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

175

Electrolux/AYP 532197858

SHAFT ASM SHIFT

$39.99

$

Usually ships in 3-10 days

0

176

Electrolux/AYP 532196214

ARM.CLEVIS.ROD.SHIFT

$7.99

$

Usually ships in 3-10 days

0

178

Electrolux/AYP 532196314

SPRING.TORSION.LIFT.HANDLE

$6.49

$

In Stock, only 2 left!

0

183

Electrolux/AYP 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

184

Electrolux/AYP 532409747

HANDLE PARKING BRAKE
(Superseded to 532199996)

$66.99

$

Usually ships in 3-10 days

0

185

Electrolux/AYP 872110622

BOLT

$4.99

$

In Stock, Qty 10

0

186

Electrolux/AYP 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 11

0

187

Electrolux/AYP 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

188

Electrolux/AYP 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Electrolux/AYP 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$7.99

$

In Stock, Qty 5

0

190

Electrolux/AYP 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 1 left!

0

192

Electrolux/AYP 532150360

NUT LOCK CENTER 1/4 -28 FNTHD
(Superseded to 873610400)

$

$

Not available

193

Electrolux/AYP 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

195

Electrolux/AYP 532197332

BRKT.ROD.BRAKE.PEERLES

$5.99

$

Usually ships in 3-10 days

0

202

Electrolux/AYP 532197859

LINK.SHIFT.PMST.18"
(Superseded to 597079401)

$9.49

$

Usually ships in 3-10 days

0

203

Electrolux/AYP 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

205

Electrolux/AYP 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

221

Electrolux/AYP 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 3 left!

0

232

Electrolux/AYP 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

233

Electrolux/AYP 532405296

WASHER SERRATED

$6.49

$

Usually ships in 3-10 days

0

263

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

268

Electrolux/AYP 532182402

NO LONGER AVAILABLE
(Superseded to 583122001)

$7.49

$

Usually ships in 3-10 days

0

275

Electrolux/AYP 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

287

Electrolux/AYP 532421648

KEEPER.PULLEY.T/A.7.04

$

$

Not available

288

Electrolux/AYP 532416617

LINK.SHIFT.SLAVE.SRD

$

$

Not available

289

Electrolux/AYP 532417520

BRACKET.SUPPORT.SHIFT.OUTER
(Superseded to 583365301)

$3.99

$

Usually ships in 3-10 days

0

290

Electrolux/AYP 532420014

SHAFT.ASM.SHIFT.REAR.SRD
(Superseded to 583378801)

$

$

Not available

292

Electrolux/AYP 532419307

PLATE.ASM.SHIFT.FWD.SRD
(Superseded to 583374901)

$

$

Not available
