P 11577 RB (960410094-02) - Electrolux/AYP Lawn Tractor (2010-09) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

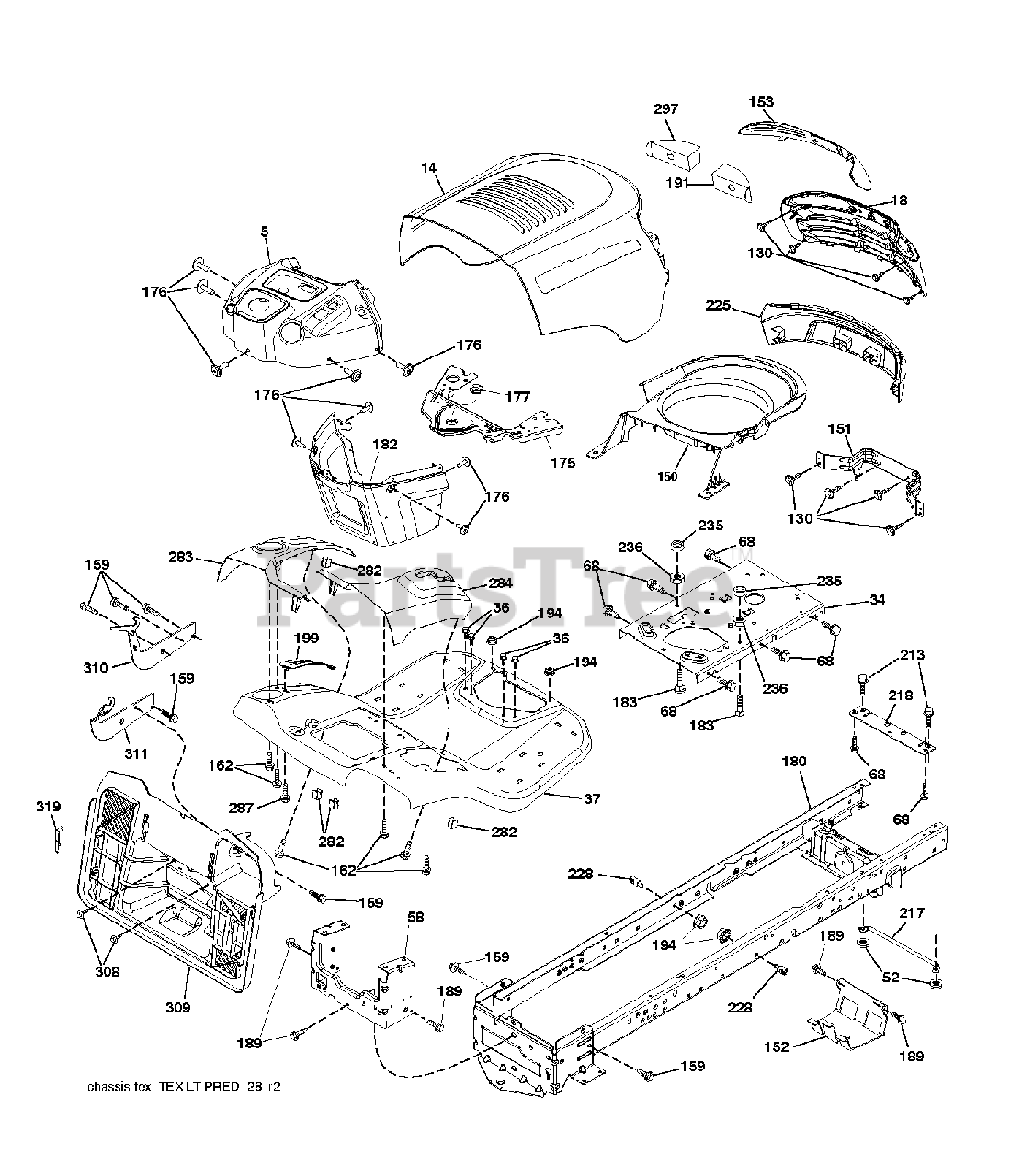

CHASSIS ENCLOSURES Parts Diagram

  • Title

5

Electrolux/AYP 532425772

DASH.PRED.LT.CC.ICY.N/SRV.BLK

$96.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532409598

HOOD.PREDATR.LT.U-FRM.TPVNT428

$109.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532426511

GRILLE.SVC.BASE.PREDATOR.LT428

$40.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532196125

PLATE.ENGINE.WELDED.CHASSIS
(Superseded to 580910801)

$68.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532439624

FENDER.TEX.SRD.CRD.BASE

$

$

Not available

52

Electrolux/AYP 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

58

Electrolux/AYP 532412280

DRAWBAR UPPER 2PC SMALL FENDER

$46.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

130

Electrolux/AYP 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

150

Electrolux/AYP 532408956

NO LONGER AVAILABLE

$

$

Not available

151

Electrolux/AYP 532187568

BRACKET.PIVOT.ALPHA.LT

$28.99

$

Usually ships in 3-10 days

0

152

Electrolux/AYP 532199535

SHIELD BROWNING

$

$

Not available

153

Electrolux/AYP 532409740

LENS.PREDATOR.LT.
(Superseded to 532444264)

$22.99

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

162

Electrolux/AYP 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

175

Electrolux/AYP 532199472

CROSSMEMBER

$28.99

$

Usually ships in 3-10 days

0

176

Electrolux/AYP 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Electrolux/AYP 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

180

Electrolux/AYP 532414685

CHASSIS.WLDMNT.14GA.2PC.18".TI
(Superseded to 583351501)

$121.99

$

Usually ships in 3-10 days

0

182

Electrolux/AYP 532407176

DASH.LWER.PREDATOR/HUSQ.LT

$79.99

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Electrolux/AYP 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, only 2 left!

0

191

Electrolux/AYP 532416502

INSERT.REFLECT.PREDATOR.LT.RH

$28.99

$

Usually ships in 3-10 days

0

194

Electrolux/AYP 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

199

Electrolux/AYP 532418739

NO LONGER AVAILABLE
(Superseded to 583371401)

$9.99

$

Usually ships in 3-10 days

0

213

Electrolux/AYP 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

217

Electrolux/AYP 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

218

Electrolux/AYP 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

In Stock, only 1 left!

0

225

Electrolux/AYP 532409585

NO LONGER AVAILABLE
(Superseded to 584465401)

$48.99

$

Usually ships in 3-10 days

0

228

Electrolux/AYP 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Electrolux/AYP 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Electrolux/AYP 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

282

Electrolux/AYP 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

$6.49

$

In Stock, Qty 15

0

283

Electrolux/AYP 532440361

CONSOLE.DECKLIFT.LH.SRD.TEXCRD

$125.99

$

Usually ships in 3-10 days

0

284

Electrolux/AYP 532425945

NO LONGER AVAILABLE

$

$

Not available

287

Electrolux/AYP 817600406

SCREW

$6.49

$

Usually ships in 3-10 days

0

297

Electrolux/AYP 532401827

REFLECTOR.INSERT.PRED.LH.LT

$28.99

$

Usually ships in 3-10 days

0

308

Electrolux/AYP 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 6

0

309

Electrolux/AYP 532430246

BACKPLATE.BAGGER.V2.SRD
(Superseded to 583456701)

$182.99

$

Usually ships in 3-10 days

0

310

Electrolux/AYP 532436888

NO LONGER AVAILABLE

$

$

Not available

311

Electrolux/AYP 532436889

NO LONGER AVAILABLE

$

$

Not available

319

Electrolux/AYP 532174662

BRACKET.ACTUATOR.BAGGER.SRD

$5.99

$

Usually ships in 3-10 days

0

--

Electrolux/AYP 532403704

PLUG.MOUNT.CARGO.BLK

$4.99

$

Usually ships in 3-10 days

0
