P 11577 HRB (960410095-02) - Electrolux/AYP Lawn Tractor (2010-09) BAGGER Parts Diagram

Lawn Tractor

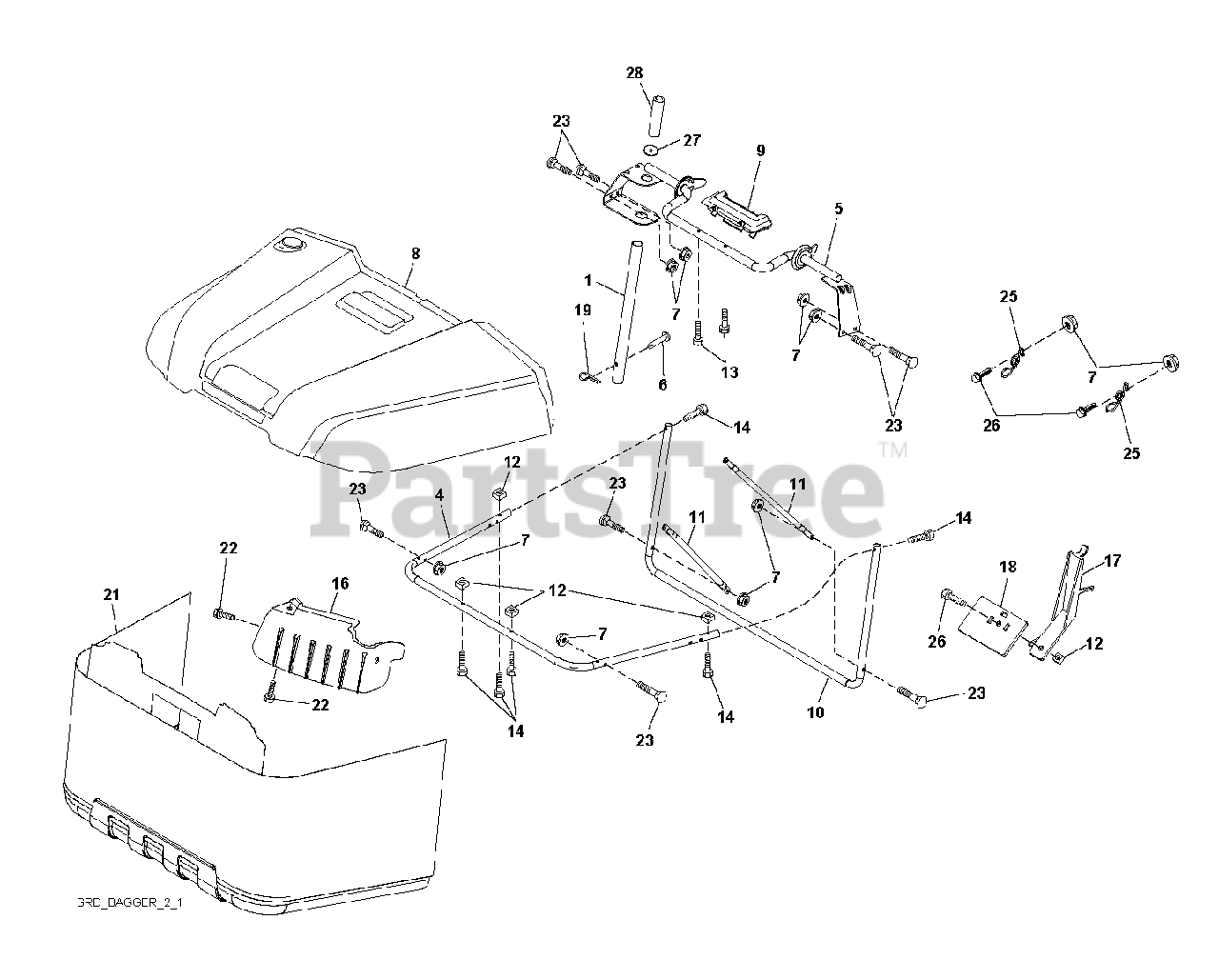

BAGGER Parts Diagram

  • Title
1

Electrolux/AYP 532428610

TUBE.PNT.HDL.BAGGER.

$15.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532417185

NO LONGER AVAILABLE

$

$

Not available

5

Electrolux/AYP 532417632

FRAME.ASM.TOP.BAGGER.SRD
(Superseded to 583365901)

$145.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

7

Electrolux/AYP 873900400

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

8

Electrolux/AYP 532425954

COVER.BAGGER.SRD.BLACK

$133.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532417629

INSERT.HANDLE.BAGGER.(2 2)
(Superseded to 583365801)

$48.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532417190

FRAME.FRONT.SRD.BAGGER

$66.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532417188

TUBING.BRACE.BAGGER.SRD.BLACK

$24.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532421793

NUT.SQUARE.1/4
(Superseded to 583391701)

$4.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 532421780

SCREW.1/4X1.150.HXWSH
(Superseded to 583391201)

$4.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532421800

BOLT.SHOULDER.HX.WSH.1/4X1.150
(Superseded to 583392001)

$7.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532421566

DEFLECTOR.BAGGER.SRD

$14.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532421749

Bagger Lever, Full SRD Black

$13.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 532421750

PADDLE.BAGGER.FULL.SRD.BLACK
(Superseded to 583391001)

$12.99

$

In Stock, only 3 left!

0

19

Electrolux/AYP 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532429983

NO LONGER AVAILABLE
(Superseded to 583825701)

$133.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532421614

SPRING.LATCH.BAGGER.SRD
(Superseded to 583389801)

$4.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 817490412

SCREW HEX CRT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 532421262

GROMMET.RUBBER.SRD
(Superseded to 583387201)

$4.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532165787

GRIP.HANDLE.BLACK

$6.99

$

In Stock, only 2 left!

0
