P 11577 (960410092-04) - Husqvarna Lawn Tractor (2011-08) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

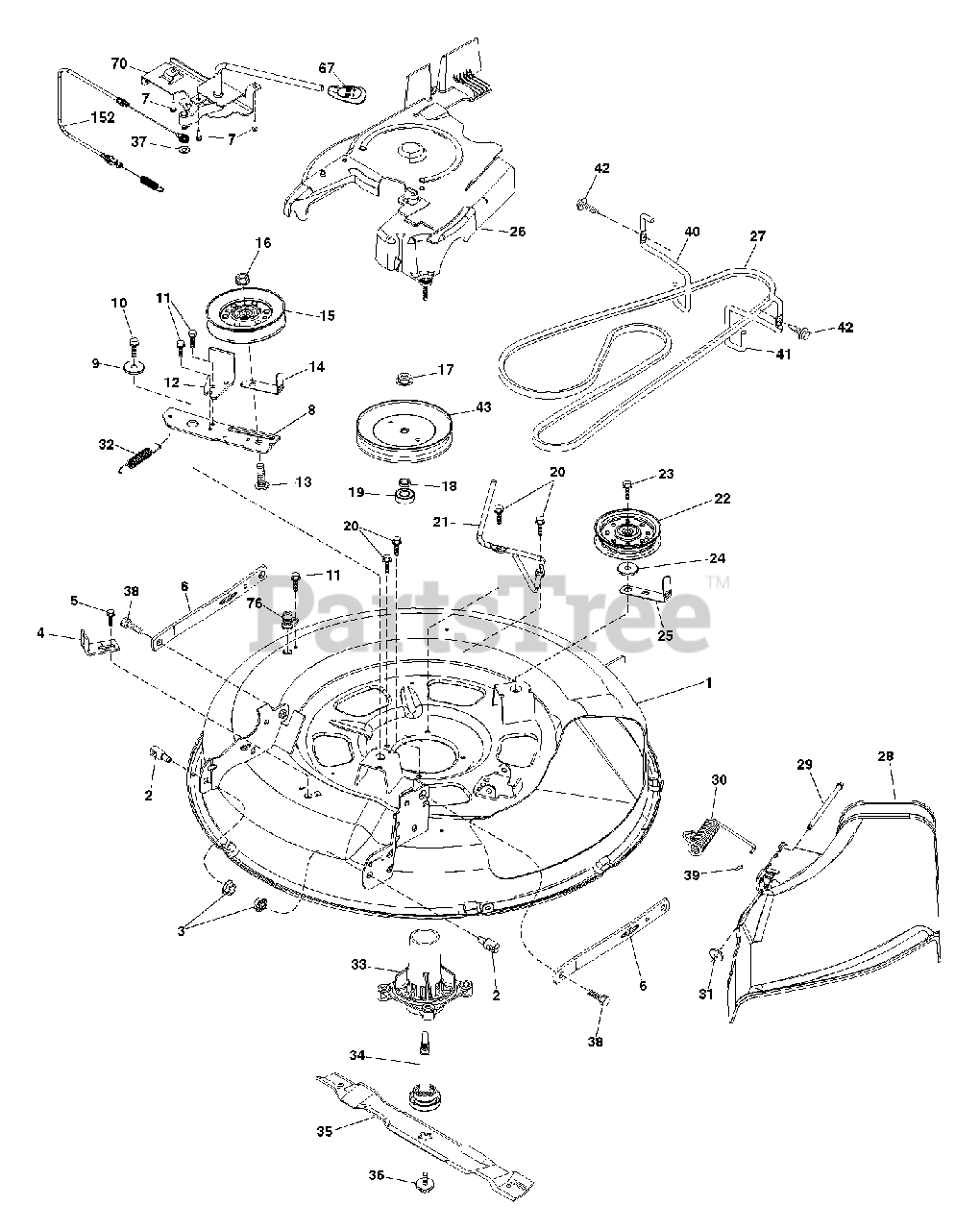

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Electrolux/AYP 532419272

DECK.WELDMENT.30"SRD.BLACK
(Superseded to 583749801)

$399.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

3

Electrolux/AYP 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 3 left!

0

4

Electrolux/AYP 532417645

Clutch Cable Bracket

$5.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

6

Electrolux/AYP 532418863

ARMS.SUSP.MOWER.REAR.SRD

$20.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

8

Electrolux/AYP 532420252

ARM.IDLER.30"SRD
(Superseded to 583379801)

$10.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 12

0

10

Electrolux/AYP 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

11

Electrolux/AYP 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 532199470

ARM BRAKE MOWER RH
(Superseded to 532400130)

$18.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

15

Electrolux/AYP 532146763

PULLEY.IDLER.4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 18

0

18

Electrolux/AYP 532187690

WASHER.SPACER.MANDREL

$4.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532110485

BEARING

$13.99

$

In Stock, Qty 6

0

20

Electrolux/AYP 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 532416910

KEEPER.BELT.MANDREL.30"

$15.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532193198

PULLEY.IDLER.FLAT.UNPLATED
(Superseded to 596481402)

$26.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 819132012

WASHER

$1.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532420253

KEEPER.BELT.30"SRD
(Superseded to 529311701)

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532430313

NO LONGER AVAILABLE

$

$

Not available

27

Electrolux/AYP 532419271

V-BELT.DRIVE.MOWER.30"

$60.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532417344

SHIELD.DEFLECT.MWR.30S.BLACK

$53.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 532420895

PIN.HINGE.30".SRD
(Superseded to 593885101)

$6.99

$

In Stock, Qty 5

0

30

Electrolux/AYP 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 16

0

31

Electrolux/AYP 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 8

0

33

Electrolux/AYP 532187281

HOUSING MANDREL
(Superseded to 587819701)

$56.99

$

In Stock, Qty 19

0

34

Electrolux/AYP 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 19

0

35

Electrolux/AYP 532419273

BLADE, MULCH.LRV30

$34.99

$

In Stock, only 3 left!

0

36

Electrolux/AYP 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

38

Electrolux/AYP 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

39

Electrolux/AYP 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 532419270

KEEPER.BELT.ENGINE.LH.LT.SRD

$17.99

$

In Stock, only 1 left!

0

41

Electrolux/AYP 532419265

KEEPER.BELT.ENGINE.RH.LT.SRD

$15.99

$

In Stock, only 4 left!

0

42

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

43

Electrolux/AYP 532416877

PULLEY, MANDREL 6.5 PD
(Superseded to 525568001)

$34.99

$

In Stock, only 1 left!

0

67

Electrolux/AYP 532409792

NO LONGER AVAILABLE

$

$

Not available

70

Electrolux/AYP 532401246

CLUTCH.ASM.MANUAL.LT.PRED

$80.99

$

In Stock, only 1 left!

0

76

Electrolux/AYP 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 13

0

152

Electrolux/AYP 532435111

CABLE.CLUTCH.MANUAL.

$34.99

$

In Stock, only 2 left!

0

--

Electrolux/AYP 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: Mandrel Assembly (Includes Housing Shaft Assembly And Bearing Only- Pulley /Nut /Washer And Blade Bolt /Washers Not Included)

$56.99

$

In Stock, Qty 19

0

--

Electrolux/AYP 532432346

NO LONGER AVAILABLE

$

$

Not available
