P 11577 (960410092-04) - Husqvarna Lawn Tractor (2011-08) ENGINE Parts Diagram

Lawn Tractor

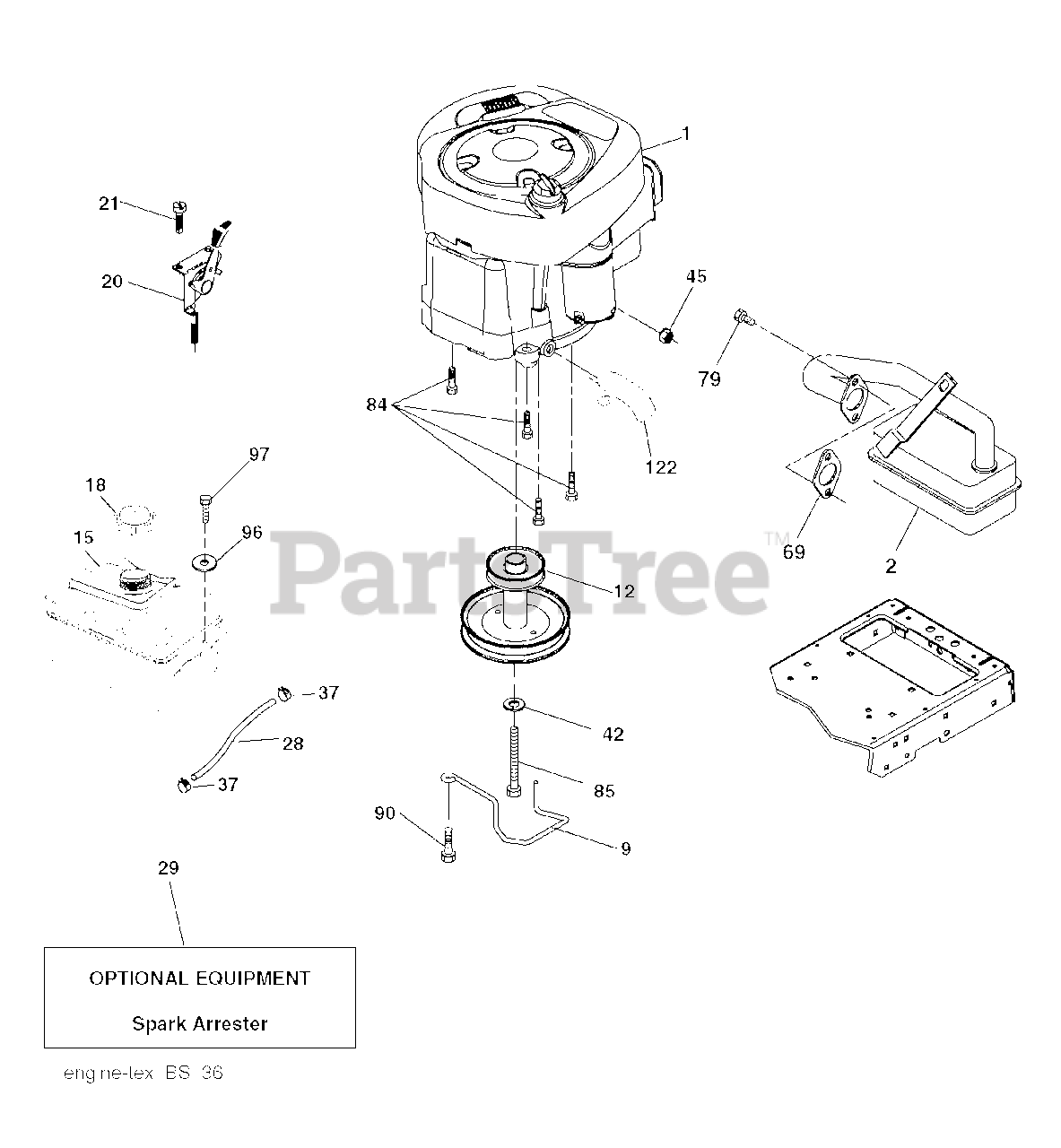

ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 000000000

NO LONGER AVAILABLE

Note: Engine Briggs Model No 217807-1209-B1 (438613)

$

$

Not available

2

Electrolux/AYP 532179758

MUFFLER

$45.99

$

In Stock, only 3 left!

0

9

Electrolux/AYP 532194319

KEEPER.BELT.ENGINE.3.25

$13.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532140186

PULLEY ENGINE

$113.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532407545

TANK FUEL FRT 1.5 GAL
(Superseded to 581289901)

$87.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532411724

CONTROL.THCK.COBRA.BS
(Superseded to 584372901)

$37.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

28

Electrolux/AYP 532137040

LINE.FUEL.20

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532137180

ARRESTER SPARK (OPTIONAL)
(Superseded to 532121851)

$

$

Not available

37

Electrolux/AYP 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

42

Electrolux/AYP 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Electrolux/AYP 873510400

NUT
(Superseded to 873640400)

$

$

Not available

69

Electrolux/AYP 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 17

0

84

Electrolux/AYP 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

85

Electrolux/AYP 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

90

Electrolux/AYP 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

96

Electrolux/AYP 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

97

Electrolux/AYP 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

122

Electrolux/AYP 532421922

EXTENSION DRAIN OIL

$40.99

$

In Stock, Qty 8

0
