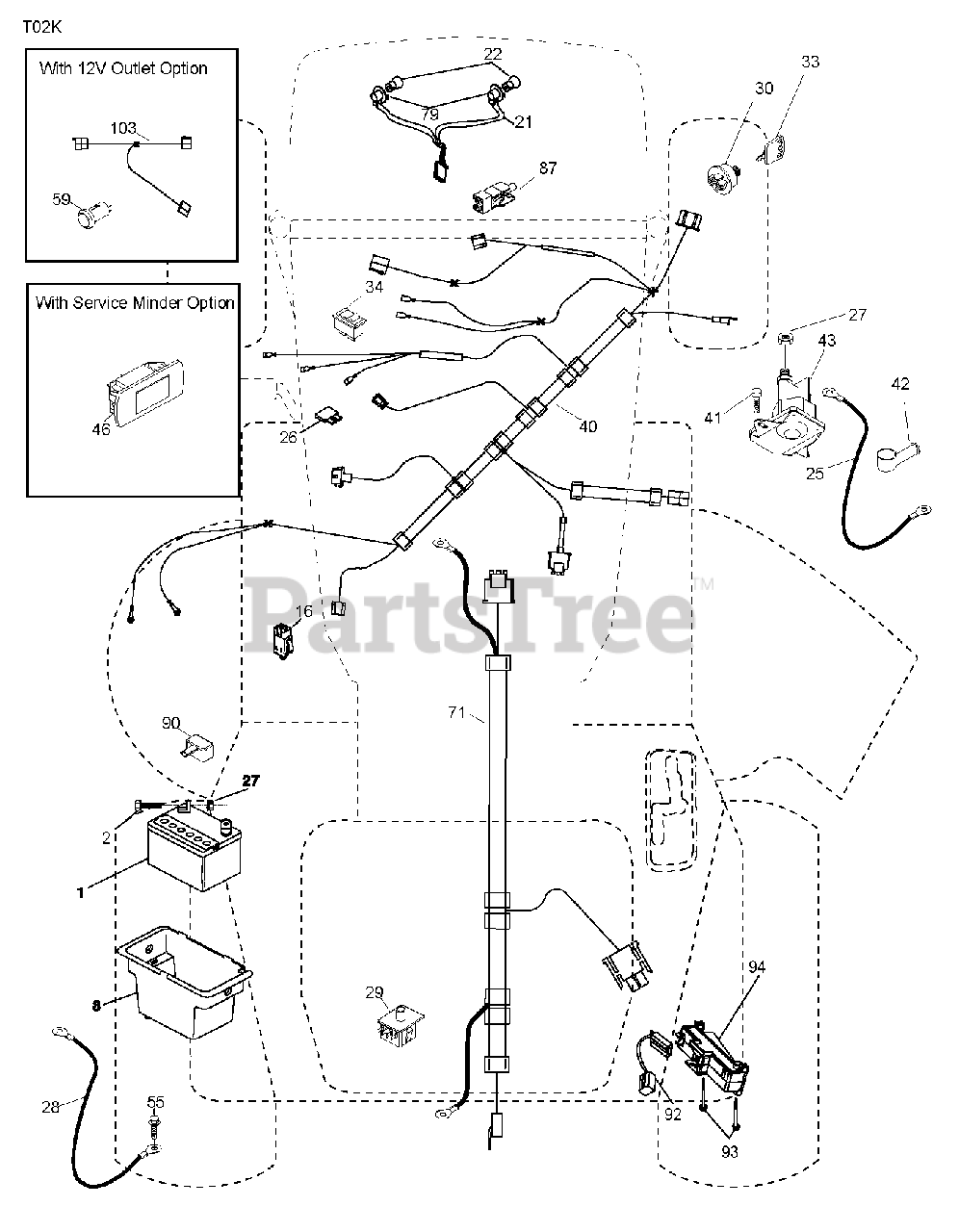

P 11577 (960410092-04) - Husqvarna Lawn Tractor (2011-08) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Electrolux/AYP 532144924

NO LONGER AVAILABLE
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 874760412

BOLT LT

$7.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 532193228

BOX.BATTERY.MNT.REAR.L

$28.99

$

In Stock, only 1 left!

0

16

Electrolux/AYP 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 9

0

21

Electrolux/AYP 532400252

HARNESS.LIGHT W/4152J BULBS

$34.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532412894

CABLE.STARTER.6GA.BL/RED.14.

$15.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532175158

FUSE 20AMP

$7.49

$

In Stock, only 2 left!

0

27

Electrolux/AYP 873510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 532198885

CABLE.BLACK.18"REAR.BA

$30.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532192749

SWITCH.SEAT.DP W/RAMPS

$21.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

$10.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532110712

SWITCH LT

$9.49

$

In Stock, only 4 left!

0

40

Electrolux/AYP 532401098

HARNESS IGN. DASH

$120.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 532192507

SOLENOID.W/BRASS.PLUNG
(Superseded to 582042802)

$26.99

$

In Stock, Qty 20+

0

55

Electrolux/AYP 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 532441544

HARNESS.CHASSIS.TEX.8AWG

$113.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 532197802

SWITCH.INTRLCK.CLUTCH.

$18.99

$

In Stock, Qty 7

0

90

Electrolux/AYP 532435395

COVER.TERMINAL.BATTERY

$6.49

$

In Stock, only 2 left!

0

92

Electrolux/AYP 532196615

HARNESS.PIGTAIL.CONSLE

$18.99

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 532192540

SCREW.PLASTITE

$4.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 532191834

MODULE.REVERSE.ROS

$37.99

$

Usually ships in 3-10 days

0
