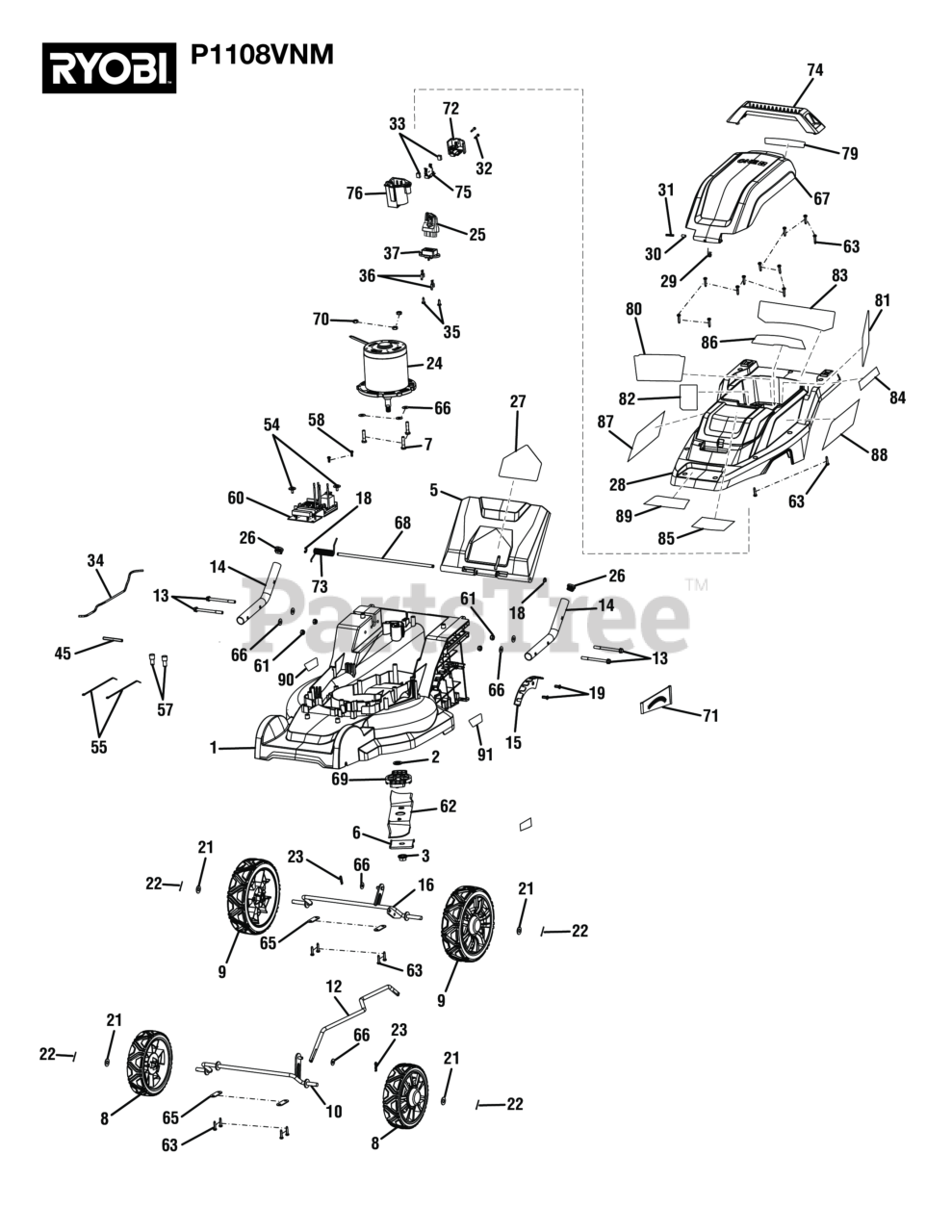

P 1108 VNM (108625001) - Ryobi 13" 18V Walk-Behind Mower, Rev 02 (2021-01) General Assembly Parts Diagram

13" 18V Walk-Behind Mower, Rev 02

General Assembly Parts Diagram

  • Title

1

Homelite 205495001

Deck Assembly

Note: (Inc. Key Nos. 90-91)

$

$

Currently unavailable

2

Homelite 636503001

Flat Washer

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 679075001

Blade Nut (M10 x 1.25, Hex Flange Hd.)

$1.99

$

In Stock, only 3 left!

0

5

Homelite 317263001

Rear Door (Inc. Key No. 27)

Note: (Inc. Key No. 27)

$9.49

$

Usually ships in 3-7 days

0

6

Homelite 636441001

Blade Retainer

$3.99

$

Usually ships in 3-7 days

0

7

Homelite 660722002

Bolt (M6 x 26 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 316712001

6 in. Wheel Assembly

$10.99

$

Usually ships in 3-7 days

0

9

Homelite 316713001

7 in. Wheel Assembly

$15.99

$

Usually ships in 3-7 days

0

10

Homelite 698849001

Front Wheel Axle

$13.99

$

Usually ships in 3-7 days

0

12

Homelite 698851001

Connector Rod

$10.99

$

Usually ships in 3-7 days

0

13

Homelite 660727004

Screw (M6 x 70 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 698846001

Tube on Deck

$6.49

$

Usually ships in 3-7 days

0

15

Homelite 659390001

Height Adjustment Plate

$3.99

$

Usually ships in 3-7 days

0

16

Homelite 698850001

Rear Wheel Axle

$14.99

$

Usually ships in 3-7 days

0

18

Homelite 650027001

E-ring (Retaining Ring)

$1.99

$

In Stock, only 4 left!

0

19

Homelite 660618007

Screw (#10-14 x .543 in., T25 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 639013001

Washer (ID8.4 x OD18 x 1t)

$1.99

$

In Stock, only 1 left!

0

22

Homelite 678279004

Cotter PinÏ? (2.5)

$1.99

$

In Stock, only 1 left!

0

23

Homelite 674178001

Hitch Pin

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 742704001

Motor

$283.99

$

Usually ships in 3-7 days

0

25

Homelite 311280001

Start Key

$7.49

$

Usually ships in 3-7 days

0

26

Homelite 542498001

Tube Plug

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 941641001

Danger Label (No Hands/Feet)

$

$

Not available

28

Homelite 317262001

Top Cover (Inc. Key Nos. 80-89)

Note: (Inc. Key Nos. 80-89)

$33.99

$

In Stock, only 1 left!

0

29

Homelite 698356001

Torsion Spring

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 621628001

Battery Door Axle

$1.99

$

In Stock, only 4 left!

0

31

Homelite 679073001

Compression Spring

$1.99

$

In Stock, only 4 left!

0

32

Homelite 660230013

Screw (M3 x 16 mm, T10 Torx Hd.)

$

$

Currently unavailable

33

Homelite 563768001

Rubber Cushion

$

$

Not available

34

Homelite 291482001

Circuit Board to Terminal Wire (Red)

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

36

Homelite 639178001

Female Terminal
(Superseded to 120722005)

$20.99

$

Usually ships in 3-7 days

0

37

Homelite 526912001

Key Holder
(Superseded to 120722005)

$20.99

$

Usually ships in 3-7 days

0

45

Homelite 700004001

TUBE, BLK. SHRINKABLE, 5MM

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 662199001

Screw w/Washer (M4-18 x 10 mm, T20 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 790003001

Cable Tie

$

$

Currently unavailable

57

Homelite 870290001

Wire Connector

$1.99

$

Usually ships in 0 days

0

58

Homelite 661189002

Screw (M4 x 10 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 5

0

60

Homelite 281161001

Circuit Board

$139.99

$

Usually ships in 3-7 days

0

61

Homelite 678460002

Lock Nut (M6 x 6 mm)

$1.99

$

Usually ships in 3-7 days

0

62

Homelite 682488001

13 in. Blade

$11.99

$

Usually ships in 3-7 days

0

63

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0

65

Homelite 639116003

Axle Pressure Plate

$1.99

$

Usually ships in 3-7 days

0

66

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$1.99

$

Usually ships in 3-7 days

0

67

Homelite 317266001

Battery Cover (Inc. Key No. 79)

Note: (Inc. Key No. 79)

$14.99

$

Usually ships in 3-7 days

0

68

Homelite 622755001

Rear Door Shaft

$2.99

$

Usually ships in 3-7 days

0

69

Homelite 528615002

Blade Holder

$1.99

$

Usually ships in 3-7 days

0

70

Homelite 680196006

Lock Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

71

Homelite 565770001

Height Adjustment Plate

$2.99

$

Usually ships in 3-7 days

0

72

Homelite 526979001

Press Cover (Battery Connect)

$1.99

$

Usually ships in 3-7 days

0

73

Homelite 698961001

Rear Door Torque Spring

$2.99

$

Usually ships in 3-7 days

0

74

Homelite 541540001

Handle

$2.99

$

Usually ships in 3-7 days

0

75

Homelite 300001067

Plate (Battery Connect)

$

$

Currently unavailable

76

Homelite 526978001

Base (Battery Connect)

$1.99

$

Usually ships in 3-7 days

0

79

Homelite 941016118

Icon Label

$1.99

$

Usually ships in 3-7 days

0

80

Homelite 941016114

Danger Label (FR)

$1.99

$

Usually ships in 3-7 days

0

81

Homelite 941016115

Danger Label (SP)

$1.99

$

Usually ships in 3-7 days

0

82

Homelite 941588756

Data Label

$1.99

$

Usually ships in 3-7 days

0

83

Homelite 941016117

Danger Label (ENG) w/Warnings

$1.99

$

Usually ships in 3-7 days

0

84

Homelite 940851635

Cut Height Label

$1.99

$

Usually ships in 3-7 days

0

85

Homelite 940851636

Start Key Warning Label

$1.99

$

Usually ships in 3-7 days

0

86

Homelite 941016119

Wet Conditions Label

$1.99

$

Usually ships in 3-7 days

0

87

Homelite 940851637

Accent Label (Right)

$2.99

$

Usually ships in 3-7 days

0

88

Homelite 940851638

Accent Label (Left)

$2.99

$

Usually ships in 3-7 days

0

89

Homelite 940851639

Logo Label

$1.99

$

Usually ships in 3-7 days

0

90

Homelite 940779341

13 in. Callout Label (Right)

$

$

Currently unavailable

91

Homelite 940779342

13 in. Callout Label (Left)

$

$

Currently unavailable

Homelite 998000330

Operator's Manual

Note: Not Shown

$

$
