P 1102 (107179001) - Ryobi 18V Walk-Behind Mower, Rev 03 (2017-08) Figure A Parts Diagram

18V Walk-Behind Mower, Rev 03

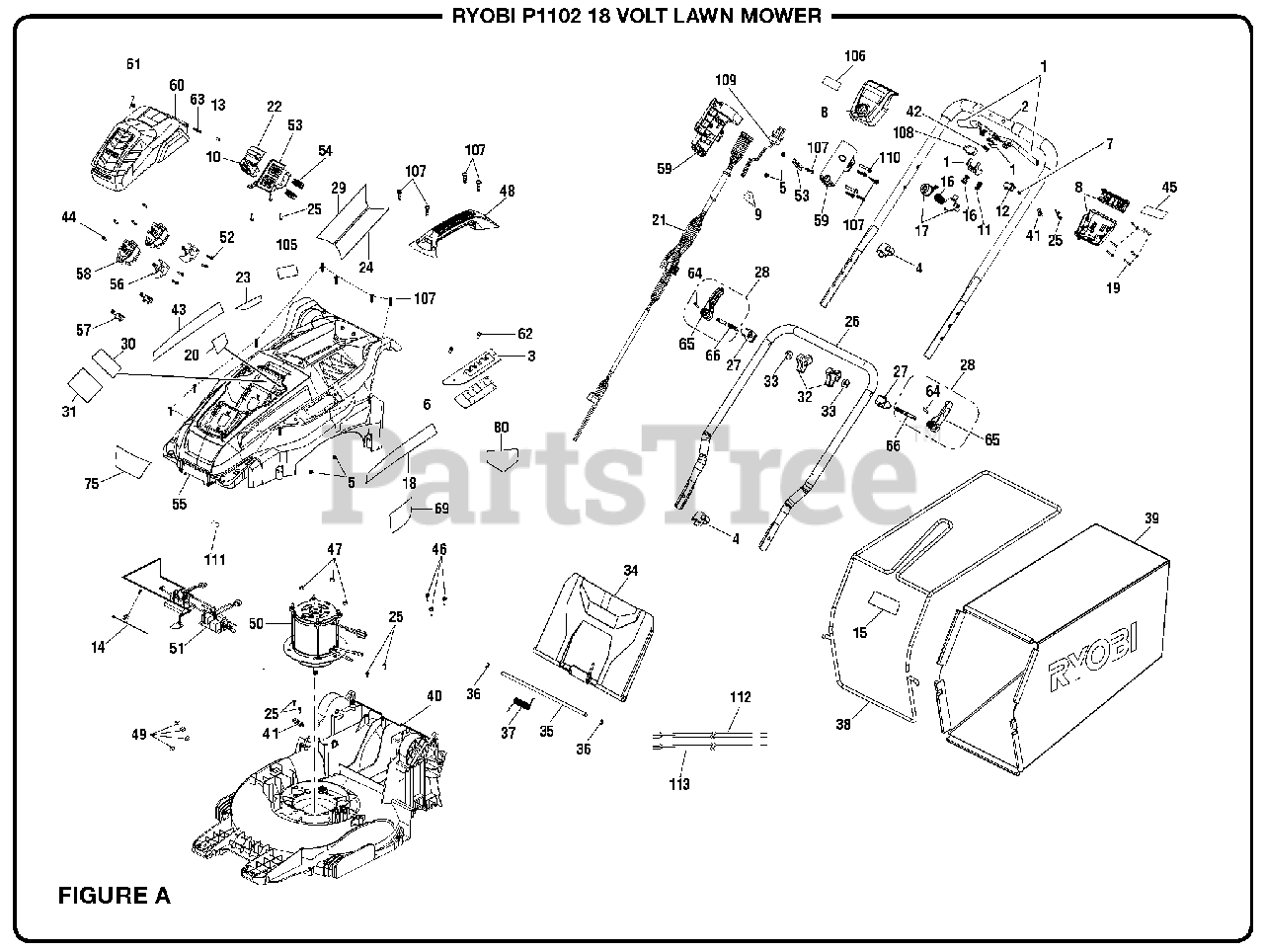

Figure A Parts Diagram

  • Title

1

Homelite 200708001

Trigger Handle Assembly

$3.49

$

Usually ships in 3-7 days

0

2

Homelite 311404002

Upper Handle Assembly

$23.99

$

Usually ships in 3-7 days

0

3

Homelite 639193005

Height Adjustment Plate

$6.49

$

Usually ships in 3-7 days

0

4

Homelite 519801001

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 678509001

Lock Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 570839002

Dust Gasket

$

$

Not available

7

Homelite 661189002

Screw (M4 x 10 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 5

0

8

Homelite 200686001

Trigger Housing Assembly

$3.49

$

Usually ships in 3-7 days

0

9

Homelite 790009004

Wire Connector (Closed End)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 311280002

Start Key

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 694991001

Compression Spring

$

$

Not available

12

Homelite 760557001

Switch

$9.49

$

Usually ships in 3-7 days

0

13

Homelite 621628001

Battery Door Axle

$1.99

$

In Stock, only 4 left!

0

14

Homelite 291562001

Lead Wire w/Terminal Block

$6.49

$

Usually ships in 3-7 days

0

15

Homelite 940705314

Bag Door Label

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 694136002

Button Return Spring

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 200688001

Start Button Assembly

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 940851112

Lithium Label (Left)

$

$

Not available

19

Homelite 660208104

Screw (M4 x 30 mm, T15 Torx Pan Hd.)

$1.99

$

In Stock, only 2 left!

0

20

Homelite 940851162

Fuel Gauge Label

$

$

Currently unavailable

21

Homelite 291564004

Starter Cable (Long)

$25.99

$

Usually ships in 3-7 days

0

22

Homelite 528681002

Slide Door

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 940657190

Icon Warning Label

$

$

Not available

24

Homelite 940657188

Warning Icon Label (Right)

$

$

Not available

25

Homelite 660608002

Screw (M4 x 16 mm, T20 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 679987007

Lower Handle

$

$

Not available

27

Homelite 526905001

Pressure Block

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 350878001

Handle Lock Assembly

$1.49

$

In Stock, only 1 left!

0

29

Homelite 940657188

Warning Icon Label (Left)

$

$

Not available

30

Homelite 940851109

Start Key Label (Eng)

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 940851110

Start Key Label (FR/SP)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 526906001

Knob

$2.99

$

In Stock, only 3 left!

0

33

Homelite 526907001

Block Washer

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 526857003

Rear Discharge Door

$6.99

$

In Stock, only 1 left!

0

35

Homelite 639200001

Rear Door Axle

$4.99

$

Usually ships in 3-7 days

0

36

Homelite 678880001

Retaining Ring (E)

$1.99

$

In Stock, only 2 left!

0

37

Homelite 679076001

Torsion Spring (Rear Door)

$2.49

$

In Stock, only 1 left!

0

38

Homelite 639183003

Bag Frame

$

$

Not available

39

Homelite 970699001

Bag
(Superseded to 970699003)

$44.99

$

In Stock, only 1 left!

0

40

Homelite 526854009

Deck

$110.99

$

Usually ships in 3-7 days

0

41

Homelite 513211001

Cord Clip

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 679034001

Spring

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 940851113

Lithium Label (Right)

$

$

Not available

44

Homelite 662028001

Screw (M4 x 16 mm)

$

$

Currently unavailable

45

Homelite 940705314

Starting Instructions Label

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

47

Homelite 680196006

Lock Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 526874001

Handle

$6.99

$

Usually ships in 3-7 days

0

49

Homelite 563768001

Rubber Block

$

$

Not available

50

Homelite 742166003

Motor

$681.99

$

Usually ships in 3-7 days

0

51

Homelite 280347002

Start Circuit Board

$315.99

$

Usually ships in 3-7 days

0

52

Homelite 660203068

Screw (M4 x 16 mm, T20 Torx Socket Pan Hd.)

$

$

Not available

53

Homelite 200685001

Key Holder Assembly

$1.49

$

Usually ships in 3-7 days

0

54

Homelite 636440001

Key Receptacle

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 526873002

Deck Cover

$

$

Not available

56

Homelite 526979001

Press Cover (Battery Connect)

$1.99

$

Usually ships in 3-7 days

0

57

Homelite 300001067

Plate (Battery Connect)

$

$

Currently unavailable

58

Homelite 526978001

Base (Battery Connect)

$1.99

$

Usually ships in 3-7 days

0

59

Homelite 200707001

AC Plug Housing Assembly

$1.49

$

Usually ships in 3-7 days

0

60

Homelite 526872001

Battery Cover

$

$

Not available

61

Homelite 694051001

Torsion Spring (Battery Door)

$1.99

$

Usually ships in 3-7 days

0

62

Homelite 660713001

Screw (M5 x 16 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

63

Homelite 679073001

Pressure Spring

$1.99

$

In Stock, only 4 left!

0

64

Homelite 679988001

Spring Pin

$1.99

$

Usually ships in 3-7 days

0

65

Homelite 526904001

Latch

$1.49

$

Usually ships in 3-7 days

0

66

Homelite 661865002

Quick Lock Press

$1.99

$

Usually ships in 3-7 days

0

69

Homelite 941851111

Height Adjust Label

$1.99

$

Usually ships in 3-7 days

0

75

Homelite 940705269

Ryobi Logo Label (Front)

$1.99

$

Usually ships in 3-7 days

0

80

Homelite 941641001

Cut Finger Label

$

$

Not available

105

Homelite 941588111

Data Label

$

$

Not available

106

Homelite 940705179

Ryobi Logo Label (Handle)

$1.99

$

Usually ships in 3-7 days

0

107

Homelite 660563002

Screw (M4 x 20 mm)

$1.99

$

In Stock, Qty 8

0

108

Homelite 760034012

Micro Switch

$5.99

$

Usually ships in 3-7 days

0

109

Homelite 291441004

Plug Wire

$

$

Currently unavailable

110

Homelite 661863001

Screw (M5 x 30 mm)

$1.99

$

Usually ships in 3-7 days

0

111

Homelite 790021001

Wire Connector (Closed End)

$1.99

$

Usually ships in 3-7 days

0

112

Homelite 291420007

Lead Wire (Red)

$

$

Currently unavailable

113

Homelite 291420008

Lead Wire (Brown)

$

$

Currently unavailable

Homelite 991000690

Operator's Manual

Note: NOT SHOWN

$

$

Not available
