P 1100 (107178003) - Ryobi 18V Walk-Behind Mower, Rev 01 (2019-02) General Assembly 1 Parts Diagram

18V Walk-Behind Mower, Rev 01

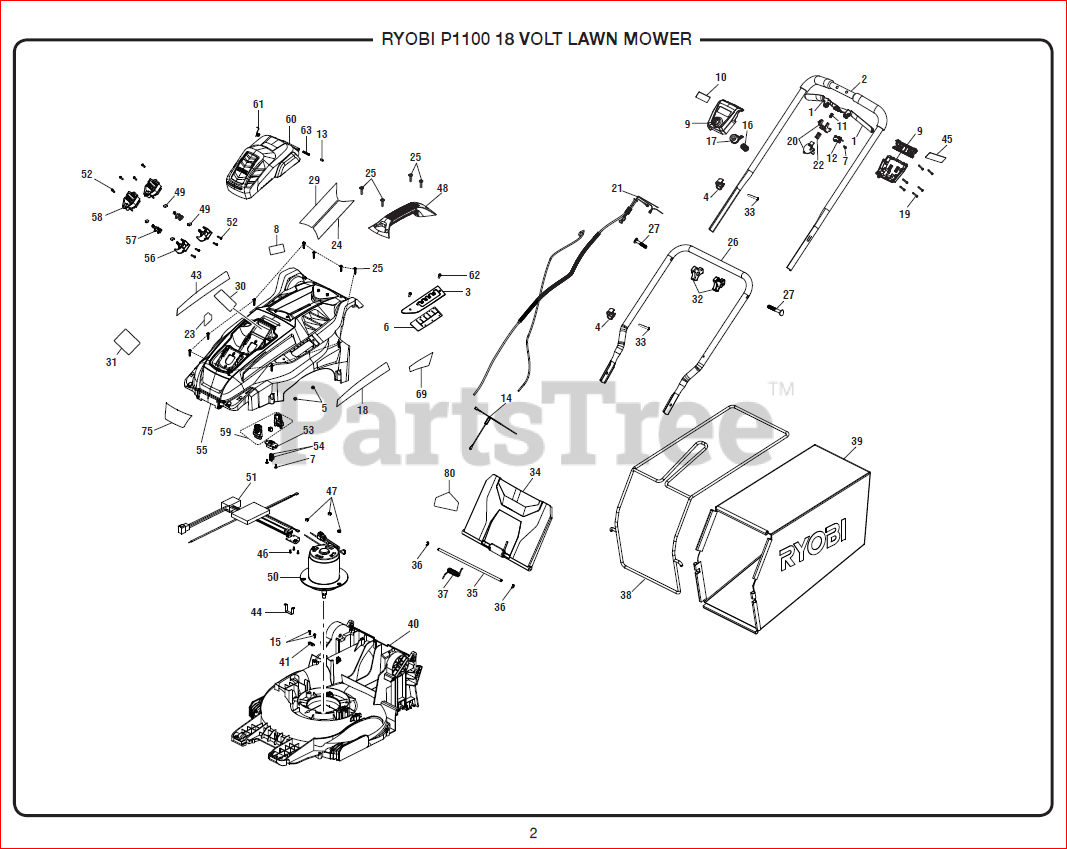

General Assembly 1 Parts Diagram

  • Title

1

Homelite 203889001

Trigger Assembly

$7.99

$

Usually ships in 3-7 days

0

2

Homelite 307021005

Upper Handle Assembly

$19.99

$

Usually ships in 3-7 days

0

3

Homelite 639193005

Height Adjustment Plate

$6.49

$

Usually ships in 3-7 days

0

4

Homelite 532410001

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 678509001

Lock Nut (M5 x 0.8 mm)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 570839002

Dust Gasket

$

$

Not available

7

Homelite 661189002

Screw (M4 x 10 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 5

0

8

Homelite 941588295

Data Label

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 205158001

Trigger Housing Assembly

$3.99

$

Usually ships in 3-7 days

0

10

Homelite 940705179

Ryobi Logo Label (Handle)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 694991001

Compression Spring (Trigger)

$

$

Not available

12

Homelite 760689007

On/Off Switch
(Superseded to 760689010)

$4.49

$

In Stock, only 2 left!

0

13

Homelite 621628001

Battery Door Axle

$1.99

$

In Stock, only 4 left!

0

14

Homelite 291562002

Lead Wire w/Terminal Block

$6.99

$

Usually ships in 3-7 days

0

15

Homelite 660608002

Screw (M4 x 16 mm, T20 Torx Pan Hd.).

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 694136002

Handle Adjustment Spring

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 529322001

Safety Button

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 941116016

Lithium Label (Left)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 660208104

Screw (M4-18 x 30 mm, T15 Torx Soc. Hd.)

$1.99

$

In Stock, only 2 left!

0

20

Homelite 203888001

Switch Button Assembly

$4.49

$

Usually ships in 3-7 days

0

21

Homelite 291721001

Starter Cable (Long)

$

$

Not available

22

Homelite 694990001

Compression Spring (Trigger Handle)

$

$

Not available

23

Homelite 940851455

Battery Lens Label

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 940851453

Warning Icon Label (Right)

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, only 4 left!

0

26

Homelite 696080001

Lower Handle

$23.99

$

In Stock, only 1 left!

0

27

Homelite 662104001

Screw (M8 x 57 mm)

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 940851454

Warning Icon Label (Left)

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 940851451

Start Key Label (Eng)

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 940851452

Start Key Label (FR/SP)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 528360001

Knob (526906001)

$1.99

$

In Stock, Qty 5

0

33

Homelite 660203059

Screw (M3 x 20 mm, Pan Hd.)

$1.86

$

Usually ships in 3-7 days

0

34

Homelite 205157001

Rear Discharge Door Assembly

Note: (Inc. Key No. 80)

$3.99

$

Usually ships in 3-7 days

0

35

Homelite 639200001

Rear Door Axle

$4.99

$

Usually ships in 3-7 days

0

36

Homelite 678880001

Retaining Ring (E)

$1.99

$

In Stock, only 2 left!

0

37

Homelite 679076001

Torsion Spring (Rear Door)

$2.49

$

In Stock, only 1 left!

0

38

Homelite 639183003

Bag Frame

$

$

Not available

39

Homelite 970699003

Bag

$44.99

$

In Stock, only 1 left!

0

40

Homelite 526854009

Deck

$110.99

$

Usually ships in 3-7 days

0

41

Homelite 513211001

Wire Press Plate

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 941116017

Lithium Label (Right)

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 636877001

Mounting Bracket

$

$

Not available

45

Homelite 940686159

Starting Instructions Label

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.99

$

In Stock, only 4 left!

0

47

Homelite 680196006

Lock Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 526874001

Handle

$6.99

$

Usually ships in 3-7 days

0

49

Homelite 563768001

Rubber Cushion

$

$

Not available

50

Homelite 742166001

Motor

$440.99

$

Usually ships in 3-7 days

0

51

Homelite 280347004

Soft Start Circuit Board

$160.99

$

Usually ships in 3-7 days

0

52

Homelite T662028001

Screw (M4 x 16 mm, T15 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

53

Homelite 526912001

Key Holder
(Superseded to 120722005)

$20.99

$

Usually ships in 3-7 days

0

54

Homelite 639178001

Female Terminal
(Superseded to 120722005)

$20.99

$

Usually ships in 3-7 days

0

55

Homelite 205156003

Deck Cover Assembly w/Labels

$33.99

$

Usually ships in 3-7 days

0

56

Homelite 526979001

Press Cover (Battery Connect)

$1.99

$

Usually ships in 3-7 days

0

57

Homelite 300001067

Plate (Battery Connect)

$

$

Currently unavailable

58

Homelite 526978001

Base (Battery Connect)

$1.99

$

Usually ships in 3-7 days

0

59

Homelite 311280001

Start Key

$7.49

$

In Stock, only 1 left!

0

60

Homelite 532360002

Battery Cover

$19.99

$

Usually ships in 3-7 days

0

61

Homelite 694051001

Torsion Spring (Battery Door)

$1.99

$

Usually ships in 3-7 days

0

62

Homelite 660713001

SCREW (M5 x 16 mm SOC. WASHER HD. CAP)

$1.99

$

Usually ships in 3-7 days

0

63

Homelite 679073001

Compression Spring

$1.99

$

In Stock, only 4 left!

0

69

Homelite 941846006

Cut Height Label

$1.99

$

Usually ships in 3-7 days

0

75

Homelite 940705269

Ryobi Logo Label (Handle)

$1.99

$

Usually ships in 3-7 days

0

80

Homelite 941641001

Danger Label (No Hands/Feet)

$

$

Not available

Homelite 995000658

Operator's Manual

Note: Not Shown

$

$

Not available
