P 1100 (107178001) - Ryobi 18V Walk-Behind Mower, Rev 04 (2018-04) Genral Assembly (Part 2) Parts Diagram

18V Walk-Behind Mower, Rev 04

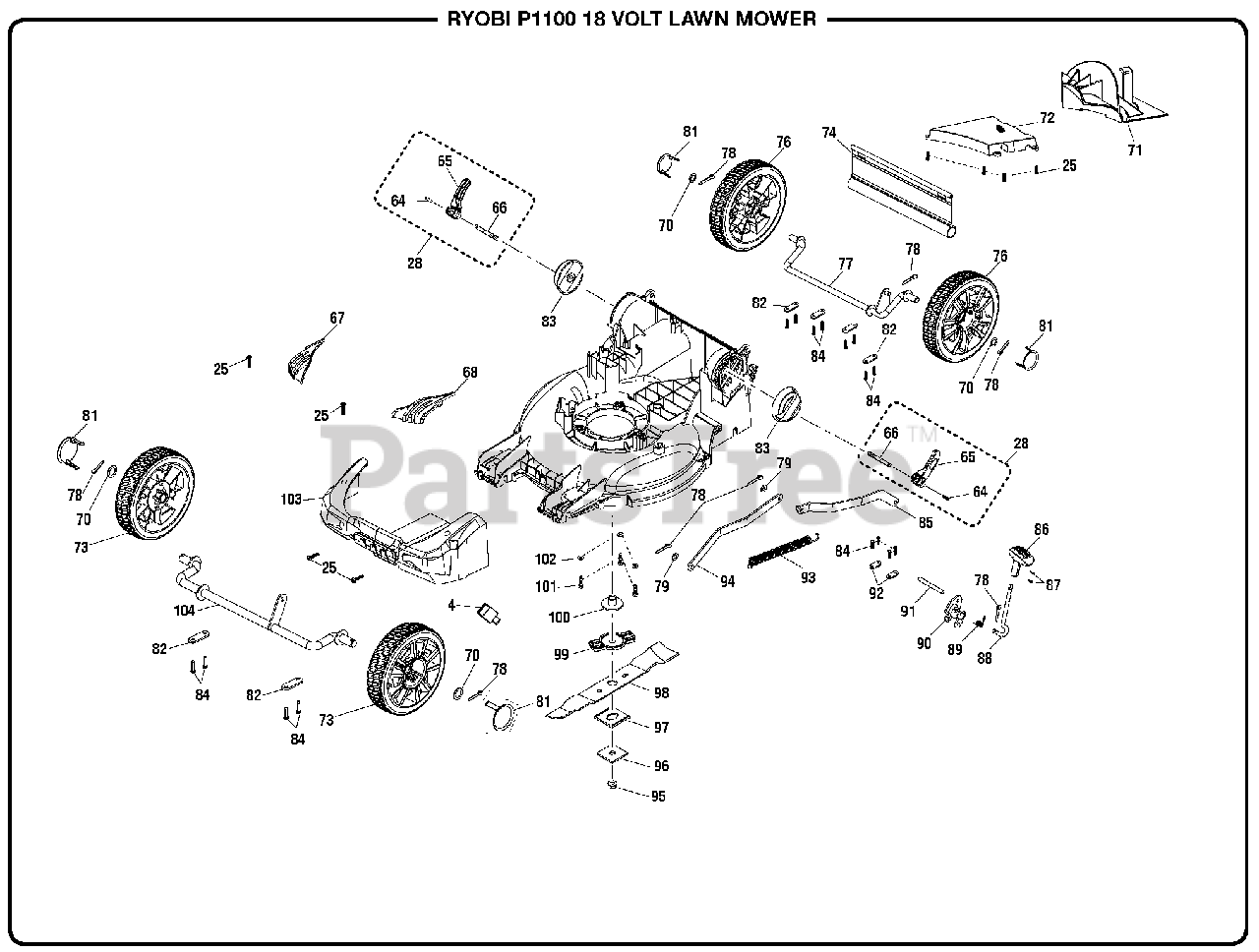

Genral Assembly (Part 2) Parts Diagram

  • Title

4

Homelite 526908001

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 660563002

Screw (M3.5 x 20 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0

28

Homelite 350878001

Handle Lock Assembly

$1.49

$

In Stock, only 1 left!

0

64

Homelite 679988001

Spring Pin

$1.99

$

Usually ships in 3-7 days

0

65

Homelite 526904001

Latch

$1.49

$

Usually ships in 3-7 days

0

66

Homelite 526922001

Quick Lock Press

$1.99

$

Usually ships in 3-7 days

0

67

Homelite 526977001

Grass Protector (Right)

$

$

Not available

68

Homelite 526976001

Grass Protector (Left)

$

$

Not available

70

Homelite 639113003

Washer (OD20 x ID13 x 1t)

$1.99

$

Usually ships in 3-7 days

0

71

Homelite 526980001

Mulching Plug

$

$

Not available

72

Homelite 525668001

Rear Cover

$

$

Not available

73

Homelite 311253001

Front Wheel w/Bearing & Cap

Note: (6 in., Inc. Key No. 81)

$12.99

$

Usually ships in 3-7 days

0

74

Homelite 528595001

Rear Skirt

$20.99

$

In Stock, only 1 left!

0

76

Homelite 311739001

Rear Wheel w/Bearing & Cap

Note: (8 in., Inc. Key No. 81)

$

$

Not available

77

Homelite 636378001

Rear Wheel Axle
(Superseded to 636378002)

$19.99

$

Usually ships in 3-7 days

0

78

Homelite 678279004

Cotter Pin (2.5)

$1.99

$

In Stock, only 1 left!

0

79

Homelite 639013001

Washer (OD18 x ID8.4 x 1t)

$1.99

$

In Stock, only 1 left!

0

81

Homelite 526876001

Wheel Cover

$1.99

$

In Stock, only 1 left!

0

82

Homelite 639116001

Axle Pressure Plate

$

$

Not available

83

Homelite 526922001

Base (Lock Handle)

$1.99

$

Usually ships in 3-7 days

0

84

Homelite 661189003

Screw (M4 x 18 mm, Torx Pan Hd.)

$1.99

$

In Stock, Qty 6

0

85

Homelite 639186001

Rear Lift Rod

$10.99

$

Usually ships in 3-7 days

0

86

Homelite 526924003

Height Adjustment Handle

$1.49

$

Usually ships in 3-7 days

0

87

Homelite 664021001

Screw (M3 x 9 mm, Flat Hd.)

$

$

Not available

88

Homelite 639204001

Height Adjustment Lever

$5.49

$

Usually ships in 3-7 days

0

89

Homelite 679992001

Torsion Spring (Height Adjustment)

$1.99

$

Usually ships in 3-7 days

0

90

Homelite 639203001

Height Adjustment Bracket

$6.99

$

Usually ships in 3-7 days

0

91

Homelite 639122001

Axle (Height Adjustment)

$1.99

$

Usually ships in 3-7 days

0

92

Homelite 639125001

Pressure Plate (Height Adjustment)

$

$

Not available

93

Homelite 694052001

Retention Spring

$3.49

$

Usually ships in 3-7 days

0

94

Homelite 639185001

Front Lift Rod

$11.99

$

Usually ships in 3-7 days

0

95

Homelite 679075001

Blade Nut (M10)

$1.99

$

In Stock, only 3 left!

0

96

Homelite 639118001

Blade Retainer

$3.49

$

Usually ships in 3-7 days

0

97

Homelite 526920001

Spacer

$1.99

$

Usually ships in 3-7 days

0

98

Homelite 639180001

Blade
(Superseded to 639180003)

$14.99

$

Usually ships in 3-7 days

0

99

Homelite 526921001

Blade Holder

$1.99

$

In Stock, Qty 6

0

100

Homelite 639120001

Motor Shaft Bushing

$5.99

$

In Stock, only 1 left!

0

101

Homelite 660722002

Bolt (M6 x 16 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

102

Homelite 638557001

Washer (OD15 x ID6 x 1t)

$1.99

$

Usually ships in 3-7 days

0

103

Homelite 526975001

Bumper

$4.99

$

Usually ships in 3-7 days

0

104

Homelite 636379001

Front Wheel Axle
(Superseded to 636379002)

$16.99

$

In Stock, only 1 left!

0

Homelite 991000291

Operator's Manual

Note: NOT SHOWN

$

$

Not available
