Outlaw XP - Bad Boy Zero-Turn Mower (2018) OUTLAW XP SEAT ASSEMBLY Parts Diagram

Zero-Turn Mower

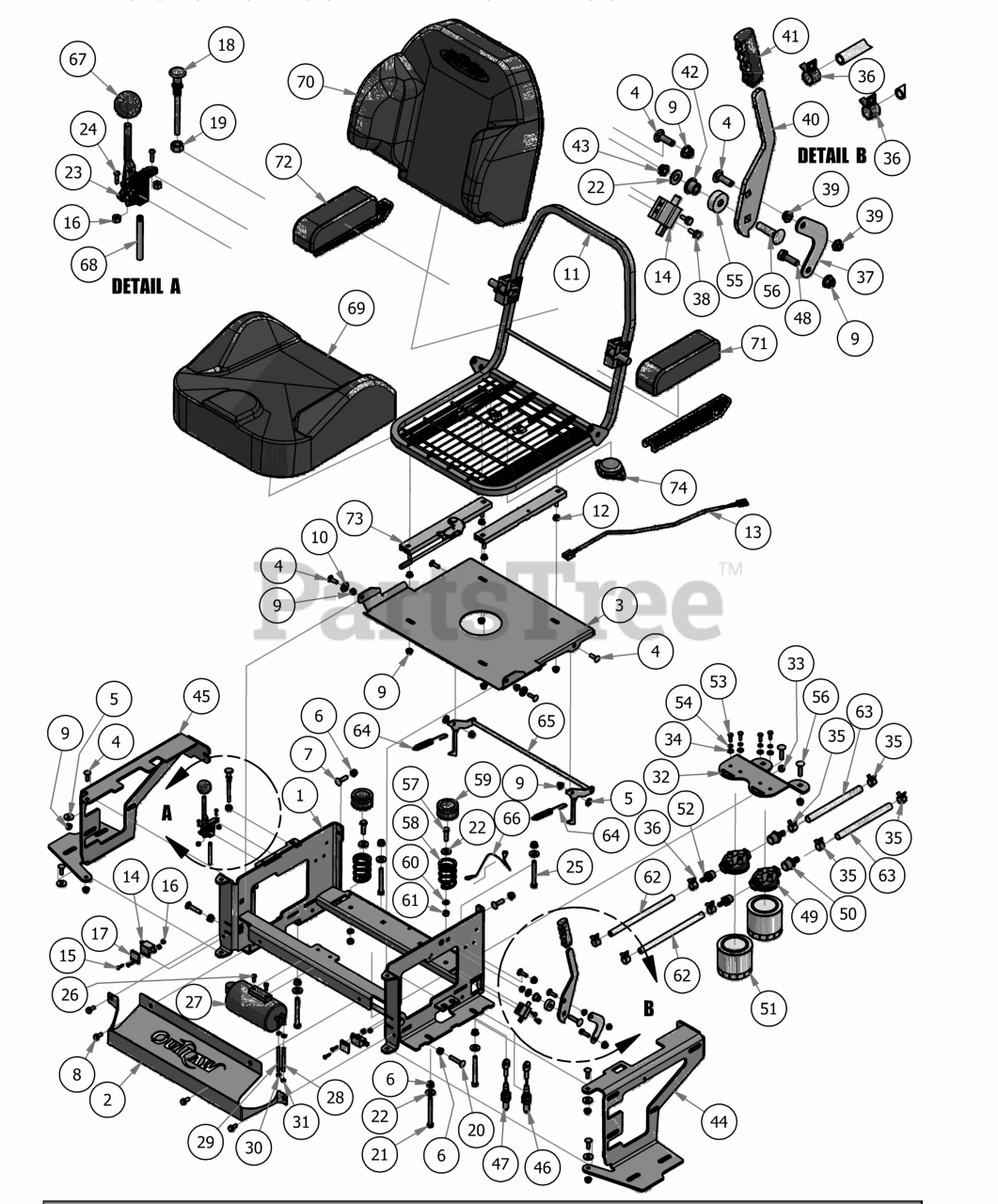

OUTLAW XP SEAT ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 080-5116-17

2017 Outlaw Seat Bracket

$

$

Not available

2

Bad Boy 014-2100-00

Outlaw Cooler Cover

$

$

Currently unavailable

3

Bad Boy 026-2016-00

2016 Seat Plate Outlaw

$105.99

$

Usually ships in 4-7 days

0

4

Bad Boy 018-8065-00

*Varies*

$0.99

$

In Stock, Qty 7

0

5

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, Qty 11

0

6

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, Qty 20+

0

7

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

0

8

Bad Boy 030-7042-00

5/16 x 3/4 washer head type F screw

$1.49

$

Usually ships in 4-7 days

0

9

Bad Boy 013-8049-00

5/16" Nylock Flange Nut Zinc

$0.99

$

In Stock, Qty 17

0

10

Bad Boy 019-6050-00

.360 ID Plastic Washer-Black

$0.99

$

In Stock, Qty 6

0

11

Bad Boy 071-5060-00

2015 Outlaw Seat

$797.99

$

Usually ships in 4-7 days

0

12

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

0

13

Bad Boy 036-5300-00

Seat Switch Adapter

$16.99

$

Usually ships in 4-7 days

0

14

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 20+

0

15

Bad Boy 018-8058-00

10-24 x 1 BS C/S 18-8 SS

$0.99

$

Usually ships in 4-7 days

0

16

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut

$0.99

$

In Stock, only 2 left!

0

17

Bad Boy 025-6041-00

Switch Block Plastic

$2.49

$

Usually ships in 4-7 days

0

18

Bad Boy 054-8017-00

Choke

$27.99

$

In Stock, Qty 20+

0

19

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

20

Bad Boy 018-0009-00

3/8 x 1 3/4 Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

21

Bad Boy 018-1010-00

3/8-16x3-1/2 grade 5 hex bolt

$0.99

$

Usually ships in 4-7 days

0

22

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, Qty 5

0

23

Bad Boy 055-2012-00

Universal Throttle

$27.99

$

In Stock, only 3 left!

0

24

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

25

Bad Boy 018-4700-00

3/8-16x3 grade 5 hex bolt

$1.49

$

Usually ships in 4-7 days

0

26

Bad Boy 018-0024-00

M6-1.0 X 16MM Hex Bolt

$3.49

$

In Stock, Qty 8

0

27

Bad Boy 067-0020-00

Carbon Canister

$66.99

$

In Stock, only 3 left!

0

28

Bad Boy 051-8072-00

1/4" Vinyl Tubing

$3.49

$

In Stock, Qty 6

0

29

Bad Boy 051-8073-00

3/16 Vinyl Tubing

$3.49

$

In Stock, only 3 left!

0

30

Bad Boy 072-8073-00

3/16" Vinyl Hose Clamp

$3.49

$

Usually ships in 4-7 days

0

31

Bad Boy 072-8070-00

3/16 Vinyl Clamp

$1.99

$

Usually ships in 4-7 days

0

32

Bad Boy 039-2130-00

Outlaw Filter Bracket

$22.99

$

Usually ships in 0 days

0

33

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

In Stock, only 2 left!

0

34

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 7

0

35

Bad Boy 072-8066-00

1/2 Hose Clamp

$0.99

$

Usually ships in 4-7 days

0

36

Bad Boy 072-8065-00

3/8" Hose Clamp

$1.49

$

In Stock, only 2 left!

0

37

Bad Boy 039-0150-00

Brake Cable Adapter Bracket

$19.99

$

Usually ships in 4-7 days

0

38

Bad Boy 018-1080-00

12-24x 1/2 HWH Bolt

$2.49

$

Usually ships in 4-7 days

0

39

Bad Boy 013-9005-00

5/16-18 Nylock Jam Nut 1/2 Nut

$3.49

$

Usually ships in 4-7 days

0

40

Bad Boy 069-1000-00

Brake Handle Cam Over

$7.99

$

Usually ships in 4-7 days

0

41

Bad Boy 069-7000-00

Rubber Brake Grip-cZT/ZT 2013

$6.99

$

In Stock, only 3 left!

0

42

Bad Boy 032-5053-00

Bronze Bushing SF-1220-8

$3.49

$

In Stock, only 2 left!

0

43

Bad Boy 013-9003-00

3/8 Nylock Jam Nut 1/2 Nut

$0.99

$

Usually ships in 4-7 days

0

44

Bad Boy 031-2045-00

Outlaw 2016 Tank Support (Left)

$

$

Currently unavailable

45

Bad Boy 031-2040-00

Outlaw 2015 Tank Support (Right)

$

$

Not available

46

Bad Boy 064-9001-00

2015 XP Brake Cable - Long

$54.99

$

Usually ships in 4-7 days

0

47

Bad Boy 064-9000-00

2015 XP Brake Cable - Short

$54.99

$

Usually ships in 4-7 days

0

48

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 1 left!

0

49

Bad Boy 062-8013-00

Filter Head-Hydraulic Filter

$26.99

$

Usually ships in 4-7 days

0

50

Bad Boy 024-5050-00

Filter Head Fitting 1/2 x 1/2

$8.49

$

Usually ships in 4-7 days

0

51

Bad Boy 063-8014-00

Filter

$33.99

$

In Stock, Qty 20+

0

52

Bad Boy 024-5342-00

1/2" Pipe to 3/8" Barb

$8.49

$

Usually ships in 4-7 days

0

53

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 3 left!

0

54

Bad Boy 019-4008-00

1/4" Lock Washer

$0.99

$

In Stock, Qty 6

0

55

Bad Boy 025-0001-00

2015 Brake Lever Spacer

$8.49

$

In Stock, Qty 5

0

56

Bad Boy 018-4706-00

3/8 x 1 1/2 Carriage Bolt

$1.99

$

Usually ships in 4-7 days

0

57

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 17

0

58

Bad Boy 034-8045-00

Seat Spring

$21.99

$

In Stock, only 2 left!

0

59

Bad Boy 014-8047-00

Seat Spring Cap Cover

$2.49

$

In Stock, Qty 6

0

60

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 11

0

61

Bad Boy 013-6014-00

3/8-16 Hex Nuts Zinc

$0.99

$

In Stock, only 4 left!

0

62

Bad Boy 051-8063-00

3/8" Clear Hose

$3.49

$

In Stock, Qty 10

0

63

Bad Boy 051-8064-00

1/2 Clear Braded Hose Priced/Foot

$3.49

$

In Stock, Qty 5

0

64

Bad Boy 034-1025-00

Brake Spring

$13.99

$

Usually ships in 4-7 days

0

65

Bad Boy 028-0085-00

Seat Latch Rod Assembly 2016 Models

$

$

Not available

66

Bad Boy 064-8081-00

Seat Cable

$16.99

$

In Stock, only 1 left!

0

67

Bad Boy 055-2013-00

Throttle Knob

$13.99

$

In Stock, only 3 left!

0

68

Bad Boy 055-8021-75

Outlaw Throttle Cable (Cable Only)

$30.99

$

In Stock, Qty 12

0

69

Bad Boy 071-5063-00

Extreme/XP Outlaw Seat Cushion - Bottom

$153.99

$

Usually ships in 4-7 days

0

70

Bad Boy 071-5064-00

Extreme/XP Outlaw Seat Cushion - Back

$182.99

$

Usually ships in 4-7 days

0

71

Bad Boy 071-5062-00

Extreme/XP Outlaw Seat Arm Pads Only (Pair)

$84.99

$

Usually ships in 4-7 days

0

72

Bad Boy 071-5061-00

Extreme/XP Outlaw Seat Arm Rest (Pair)

$136.99

$

Usually ships in 4-7 days

0

73

Bad Boy 071-5015-00

Extreme/XP Outlaw Seat Rails

$99.99

$

In Stock, only 3 left!

0

74

Bad Boy 071-8061-00

Seat Switch

$20.99

$

In Stock, only 3 left!

0

75

Bad Boy 071-2013-00

Seat Belt Kit (Not Shown)

$136.99

$

Usually ships in 4-7 days

0
