Outlaw XP - Bad Boy Zero-Turn Mower (2018) OUTLAW XP DRIVE TRAIN & REAR COVER Parts Diagram

Zero-Turn Mower

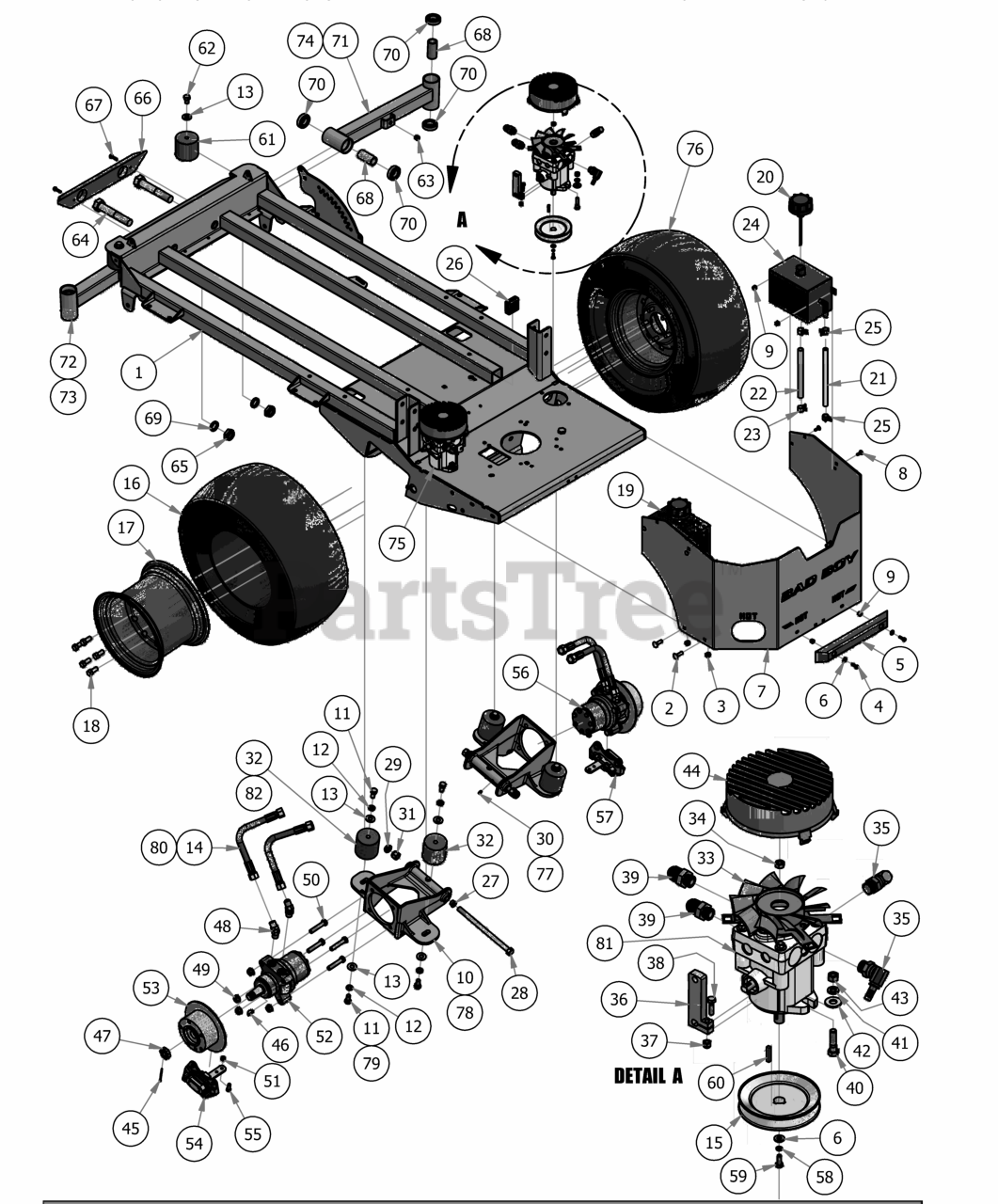

OUTLAW XP DRIVE TRAIN & REAR COVER Parts Diagram

  • Title

1

Bad Boy 070-5380-17

2017 XP Frame

$

$

Not available

2

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

0

3

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

In Stock, only 2 left!

0

4

Bad Boy 018-4702-00

1/4-20 x 1-1/4 GR 5 Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

5

Bad Boy 029-7037-00

14" Rubber Bumper

$45.99

$

Usually ships in 4-7 days

0

6

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 7

0

7

Bad Boy 026-2190-00

Outlaw Rear Plate

$205.99

$

Usually ships in 0 days

0

8

Bad Boy 019-8040-00

1/4" x 3/4" Carriage Bolt

$1.99

$

In Stock, only 3 left!

0

9

Bad Boy 013-2050-00

1/4-20 Nylon Insert flange Nut

$1.49

$

In Stock, only 2 left!

0

10

Bad Boy 070-8000-00

60 Suspension kit Wheel Motor

$332.99

$

Usually ships in 4-7 days

0

11

Bad Boy 018-2030-00

1/2" x 1" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

12

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

In Stock, Qty 20+

0

13

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 1 left!

0

14

Bad Boy 051-2000-00

18" hose Assembly W/forged 45 Degr

$52.99

$

Usually ships in 4-7 days

0

15

Bad Boy 033-5003-00

5" Pump Pulley

$60.99

$

In Stock, Qty 6

0

16

Bad Boy 022-4095-00

2018 24x12-12 Reaper Turf Tire

$227.99

$

Usually ships in 4-7 days

0

17

Bad Boy 022-4070-00

12x12" Black Wheel For 2015 Outlaw

$150.99

$

Usually ships in 4-7 days

0

18

Bad Boy 018-7033-00

1/2-20 x 1-1/2 Lug Bolts Zinc

$2.49

$

In Stock, Qty 20+

0

19

Bad Boy 067-8051-00

Outlaw Hydraulic Tank Left

$229.99

$

Usually ships in 4-7 days

0

20

Bad Boy 066-8050-00

Hydraulic Tank Cap W/Dipstick

$33.99

$

In Stock, only 2 left!

0

21

Bad Boy 051-8063-00

3/8" Clear Hose

$3.49

$

In Stock, Qty 10

0

22

Bad Boy 051-8064-00

1/2 Clear Braded Hose Priced/Foot

$3.49

$

In Stock, Qty 5

0

23

Bad Boy 072-8066-00

1/2 Hose Clamp

$0.99

$

Usually ships in 4-7 days

0

24

Bad Boy 067-8050-00

Outlaw Hydraulic Tank Right

$229.99

$

Usually ships in 4-7 days

0

25

Bad Boy 072-8065-00

3/8" Hose Clamp

$1.49

$

In Stock, only 2 left!

0

26

Bad Boy 014-9000-00

2X2 Frame Plug

$2.99

$

Usually ships in 4-7 days

0

27

Bad Boy 032-5056-00

Flange Bushing for Deck Arm - Upper

$6.49

$

In Stock, only 3 left!

0

28

Bad Boy 018-2051-00

5/8''x10'' Hex Bolt (Grade8)

$16.99

$

Usually ships in 4-7 days

0

29

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, Qty 6

0

30

Bad Boy 024-3050-00

1/4" Drive in Grease Fitting (72" Suspension Kit Wheel Moter)

$1.49

$

Usually ships in 4-7 days

0

31

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

32

Bad Boy 032-9000-00

Vibration Mount-Green Dot

$75.99

$

In Stock, only 2 left!

0

33

Bad Boy 015-9999-00

Hydraulic Fan

$30.99

$

In Stock, Qty 5

0

34

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, Qty 5

0

35

Bad Boy 024-5206-00

3/8" X 9/16"-18 ORB Male Fitting (S,A-2 P-4)

$13.99

$

Usually ships in 4-7 days

0

36

Bad Boy 031-5333-00

Pump Arm

$24.99

$

In Stock, only 2 left!

0

37

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

38

Bad Boy 018-4007-00

1/4-20 x 1 GR 5 hex bolt zinc

$1.49

$

Usually ships in 4-7 days

0

39

Bad Boy 024-5343-00

Hydraulic Pump Fitting 6400-10

$8.49

$

Usually ships in 4-7 days

0

40

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

41

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 11

0

42

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, Qty 5

0

43

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

44

Bad Boy 014-5600-00

Fan Guard 6" Fits wheel Motor Pumps

$42.99

$

Usually ships in 4-7 days

0

45

Bad Boy 020-7022-00

1/8x2-1/4 cotter pin Zinc

$0.99

$

In Stock, only 2 left!

0

46

Bad Boy 042-7041-00

Woodruff Key

$15.99

$

In Stock, Qty 5

0

47

Bad Boy 013-7050-00

1" Castle Nut for Wheel Motor

$19.99

$

Usually ships in 4-7 days

0

48

Bad Boy 024-0050-00

45 Degree Fitting 31704-10-10

$33.99

$

Usually ships in 4-7 days

0

49

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

50

Bad Boy 018-6036-00

1/2" x 2 1/2" Hex Bolt

$1.99

$

In Stock, only 4 left!

0

51

Bad Boy 013-8047-00

5/16-18 Nylock Insert Locknut

$0.99

$

In Stock, only 4 left!

0

52

Bad Boy 015-4501-00

15cc Parker Wheel Motor- Left

$649.99

$

Usually ships in 4-7 days

0

53

Bad Boy 092-5201-00

Brake Disk

$136.99

$

In Stock, Qty 6

0

54

Bad Boy 092-7001-00

XP/AOS Left Brake Caliper

$105.99

$

In Stock, only 2 left!

0

55

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

56

Bad Boy 015-4500-00

15cc Parker Wheel Motor- Right

$649.99

$

Usually ships in 4-7 days

0

57

Bad Boy 092-7000-00

XP/AOS Right Brake Caliper

$105.99

$

In Stock, only 2 left!

0

58

Bad Boy 019-4008-00

1/4" Lock Washer

$0.99

$

In Stock, Qty 6

0

59

Bad Boy 018-0024-00

M6-1.0 X 16MM Hex Bolt

$3.49

$

In Stock, Qty 8

0

60

Bad Boy 042-5301-00

5MM X 1 Square Key Stock

$3.49

$

In Stock, only 2 left!

0

61

Bad Boy 032-9002-00

Vibration Mount- Red Dot

$75.99

$

In Stock, only 3 left!

0

62

Bad Boy 018-1055-00

1/2" x 3/4" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

63

Bad Boy 014-3010-00

5/8 Round Insert

$1.99

$

Usually ships in 4-7 days

0

64

Bad Boy 018-0026-00

1-14 x 5.5 Hex Bolt Grade 8 Zinc Yellow

$14.99

$

In Stock, only 2 left!

0

65

Bad Boy 013-9004-00

1" Fine Thread Nut

$3.99

$

In Stock, Qty 10

0

66

Bad Boy 029-8000-00

2017 XP Bumper

$33.99

$

In Stock, only 2 left!

0

67

Bad Boy 030-7040-00

1/4 x 1 Hex Head Tek screw

$1.49

$

Usually ships in 4-7 days

0

68

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

0

69

Bad Boy 058-1000-00

1" x .25" Spacer

$6.99

$

In Stock, Qty 9

0

70

Bad Boy 010-1050-00

Caster Bearing 2016 - 1641 Bearing

$19.99

$

In Stock, Qty 20+

0

71

Bad Boy 250-2650-00

2017 XP Suspension Arm - Right

$60.99

$

Usually ships in 4-7 days

0

72

Bad Boy 250-2600-98

2017 XP Arm Assembly - Left

$116.99

$

Usually ships in 4-7 days

0

73

Bad Boy 250-2600-00

2017 XP Suspension Arm -Left

$60.99

$

Usually ships in 4-7 days

0

74

Bad Boy 250-2650-98

2017 XP Arm Assembly - Right

$116.99

$

Usually ships in 4-7 days

0

75

Bad Boy 050-3000-00

Left Pump 12cc

$1025.99

$

Usually ships in 4-7 days

0

76

Bad Boy 022-4100-00

2018 24x12-12 Reaper Turf Tire and Black Wheel Assembly

$341.99

$

Usually ships in 4-7 days

0

77

Bad Boy 024-8000-00

3/8" Threaded Grease Fitting (60" Suspension Kit Wheel Moter)

$0.99

$

Usually ships in 4-7 days

0

78

Bad Boy 070-8001-00

72" Suspension Kit Wheel Motor

$302.99

$

Usually ships in 4-7 days

0

79

Bad Boy 018-2080-00

1/2-13 x 1 1/4 Hex Bolt (Only on 60" Suspension Kit Wheel Motor)

$1.99

$

Usually ships in 4-7 days

0

80

Bad Boy 051-6005-00

18" Hydraulic Hose Only

$38.99

$

Usually ships in 4-7 days

0

81

Bad Boy 050-3050-00

Right Pump 12cc

$1025.99

$

Usually ships in 4-7 days

0

82

Bad Boy 032-8999-00

Vibration Mount-Blue Dot

$68.99

$

In Stock, only 2 left!

0
